10×12 Metal Building Kits Built to Your Spec
120 sq ft for storage shed, hobby room, or pool house
$1,750.00
Base kit with free install. Final price depends on gauge, certifications, doors, and your location. Reservation deposit typically 10–30% based on your state and manufacturer — final balance due after installation is complete.
Starting From:
$1,750.00
Base kit with free install. Final price depends on gauge, certifications, doors, and your location. Reservation deposit typically 10–30% based on your state and manufacturer — final balance due after installation is complete.
Free Delivery & Installation
20-Year Rust-Through Warranty
Fully Customizable Design
Financing & Rent-To-Own Available
10×12 Metal Building Specs, Dimensions & Custom Options
Here’s the full spec sheet for a 10×12 steel building from Steel and Stud. These are the levers you’ll pull inside sensei3d (the 3D building configurator) before locking in your custom quote.
| Building Footprint | 10′ Wide × 12′ Long Leg heights configurable from 8 ft to 20 ft for taller storage or workshop ceilings, on the standard 120 sq ft footprint |
|---|---|
| Total Square Footage | 120 square feet of usable interior space, with a clear 10-foot-wide span and no interior posts |
| Building Configurations | Standard fully-enclosed shed, partially enclosed with one open side as a lean-to, or open carport. Every 10×12 building is custom-built to your spec, not pulled from inventory |

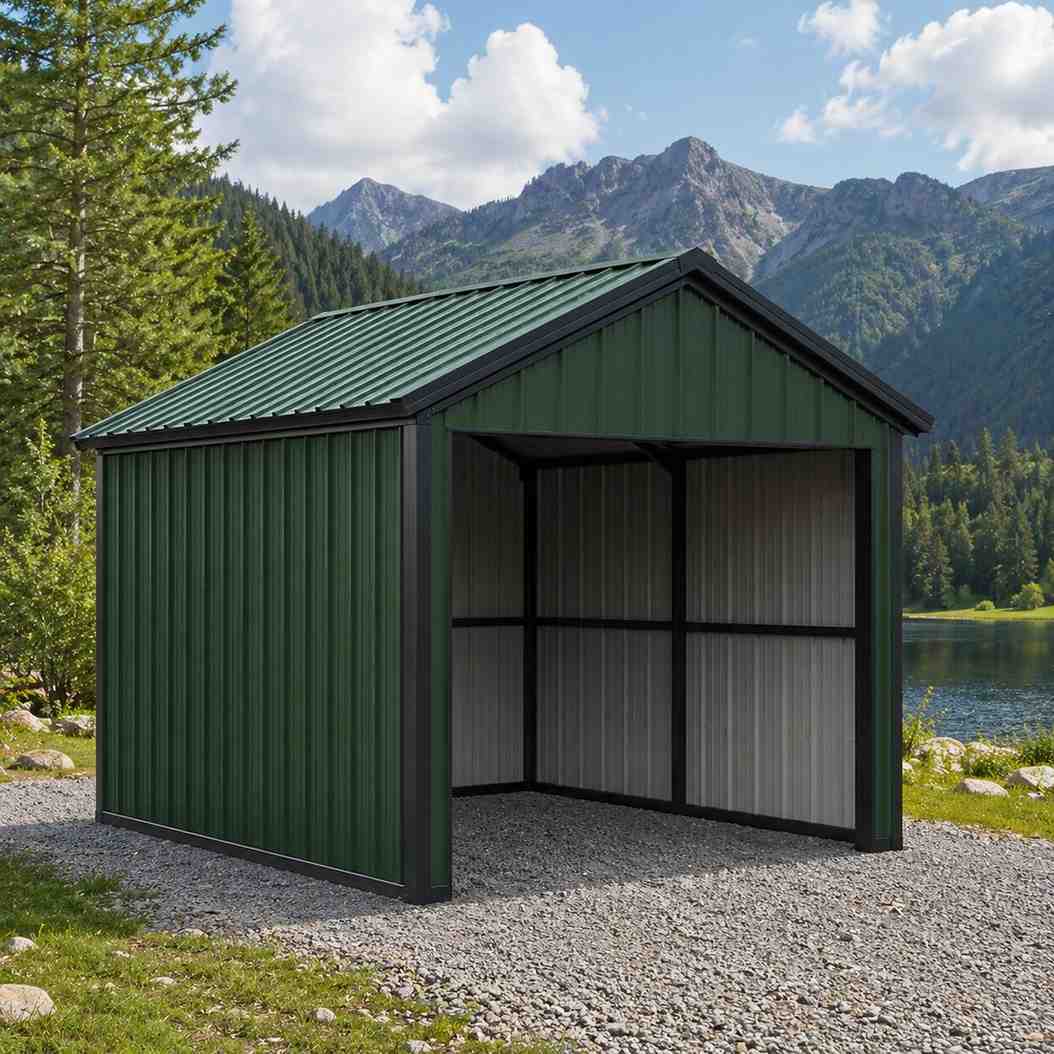

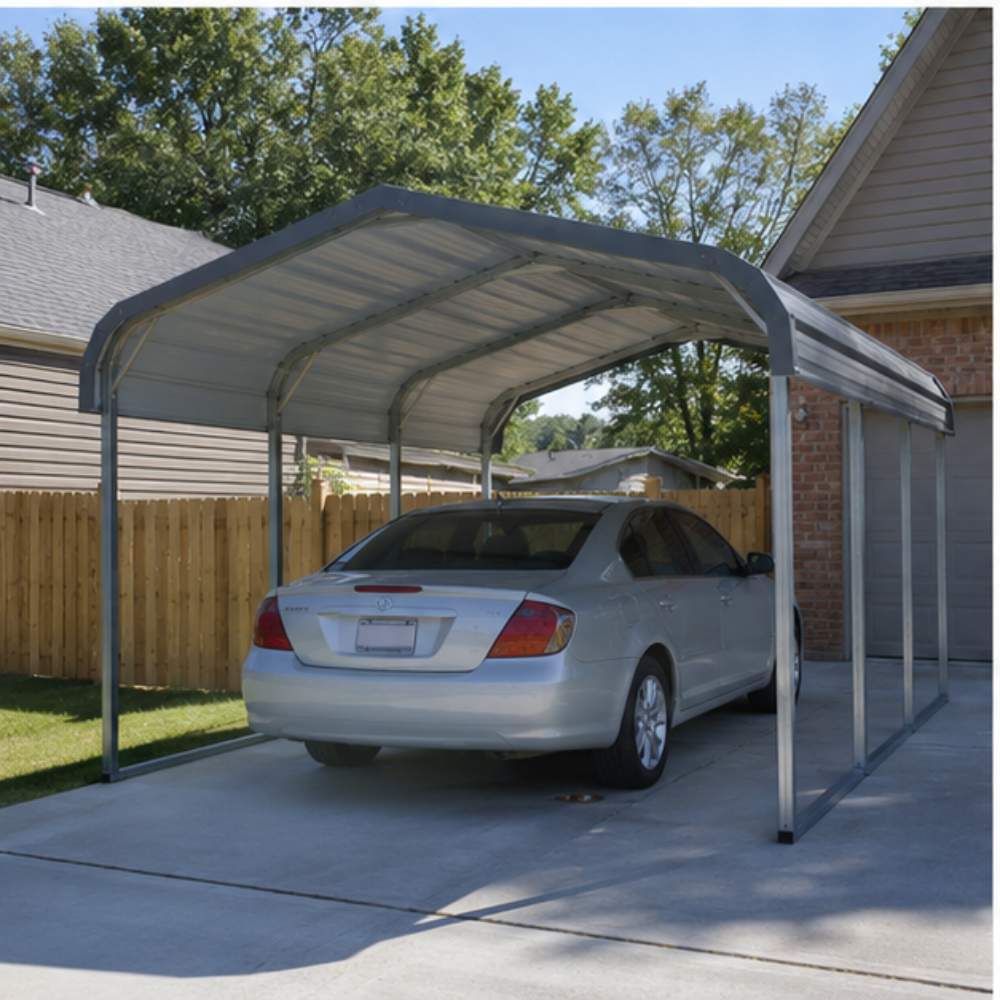

| Enclosure Options | Open carport on a 10×12 footprint, partially enclosed (1, 2, or 3 walls), or fully enclosed with 4 walls; side panels can run partial-height for ventilation on tool sheds |
| Roof Style Options | Regular Roof (rounded corners, horizontal panels), A-Frame Horizontal / Boxed Eave, or Vertical Roof. Vertical is recommended for snow and rain runoff in northern states |
| Roof Pitch Options | Standard 3:12 pitch on a 10×12, with 4:12 and 5:12 pitch upgrades available for heavy-snow regions like NY, CO, MI, MN, and ME |
| Frame Gauge Options | 14-gauge galvanized steel tubing standard, 12-gauge upgrade available (33% thicker, longer warranty) for hurricane and high-wind zones |
| Roof & Wall Panels | 29-gauge sheet metal standard, 26-gauge upgrade available; choice of horizontal or vertical orientation depending on roof style |
| Color Options | 17 standard colors for roof, walls, and trim, all panels powder-coated for 20-year fade resistance |
| Door Options | Roll-up garage doors (6×6, 8×7, 8×8, 9×8 fit a 10×12 footprint), walk-in personnel doors (3×6, 3×7), sliding barn doors, French doors |
| Window Options | Single-hung 30×30 standard, customizable sizes available, with screens and security bars optional. Most 10×12 sheds with windows run one or two units |
| Insulation Options | R-13 vapor barrier, R-19 fiberglass batt, and double-bubble radiant barriers available for hobby rooms or home-office conversions |
| Anchoring Options | Concrete wedge anchors, asphalt anchors, mobile home anchors, and ground rebar augers, selected based on your installation surface |
| Installation Surface | Concrete slab, asphalt, bare ground, or gravel pad (each requires different anchoring; site must be level within 3 inches across the 10×12 pad) |
| Certification & Permits | Varies by location. Most counties exempt 120 sq ft accessory structures from permits, but Steel and Stud provides wind/snow load engineering where required |
| Snow Load Rating | 30-65 PSF depending on configuration; certified engineering available for higher zones in Colorado, Maine, and upstate New York |
| Wind Load Rating | 100-140 MPH depending on configuration; hurricane-rated certifications available for FL, TX, NC, SC, and LA Gulf coastal zones |
| Lead Time | 4-6 weeks from order confirmation to install in most regions; 6-10 weeks for engineered/certified builds with stamped drawings |
| Delivery | Free delivery to all 48 continental US states; final-mile coordination for remote sites |
| Warranty | 20-year rust-through warranty on panels and frame; 1-year workmanship warranty on installation |
Limited + Product Pledge
Paint Finish
Workmanship Guarantee
Workmanship Guarantee
12 Popular 10×12 Metal Building Uses (120 Sq Ft Layouts)
120 square feet is genuinely useful, enough for a riding mower with room to walk around it, or a full workbench wall plus shelving. Below are the twelve most common ways homeowners and small property owners spec out a 10×12 metal building. Each card shows the leg heights and roof style buyers actually pick for that use.

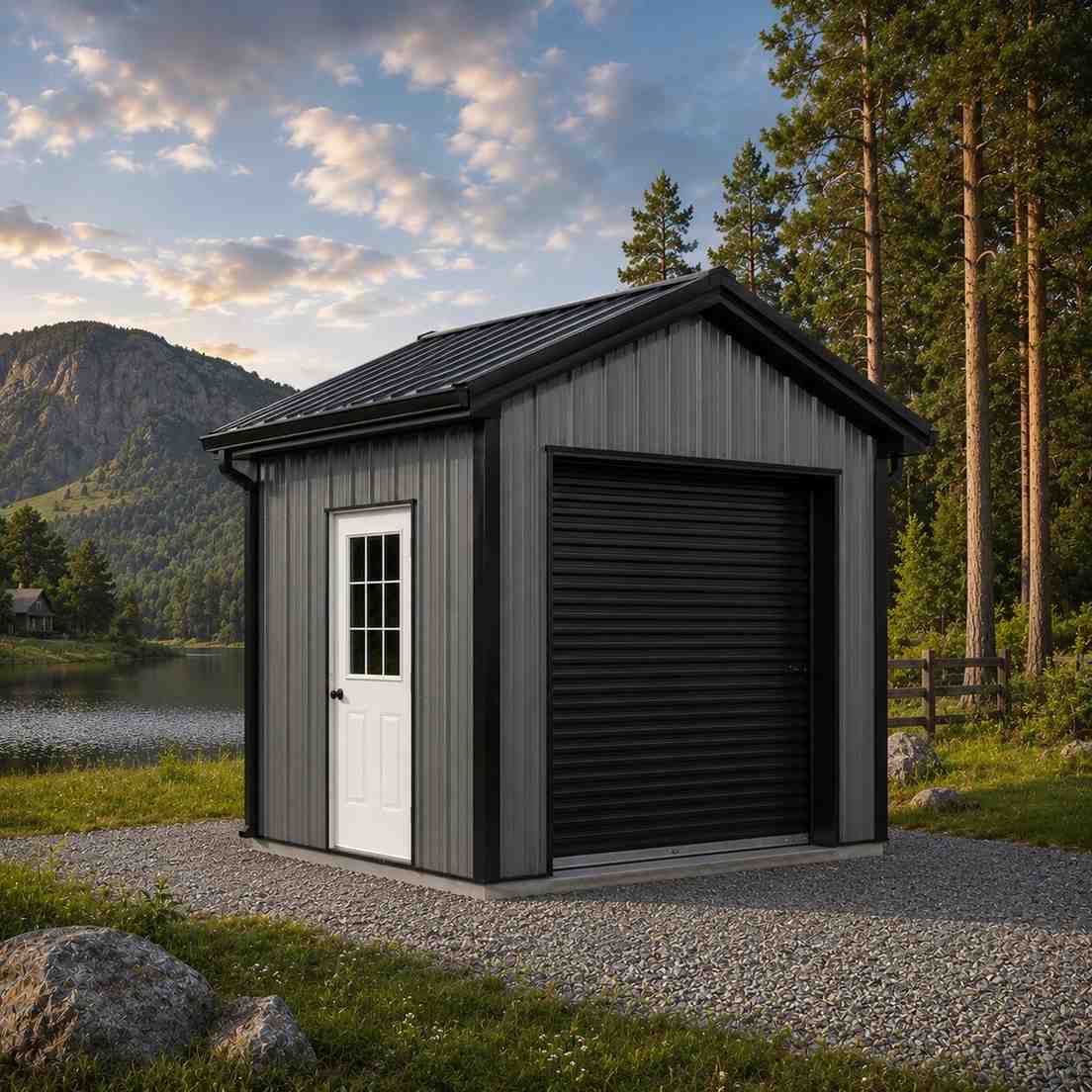

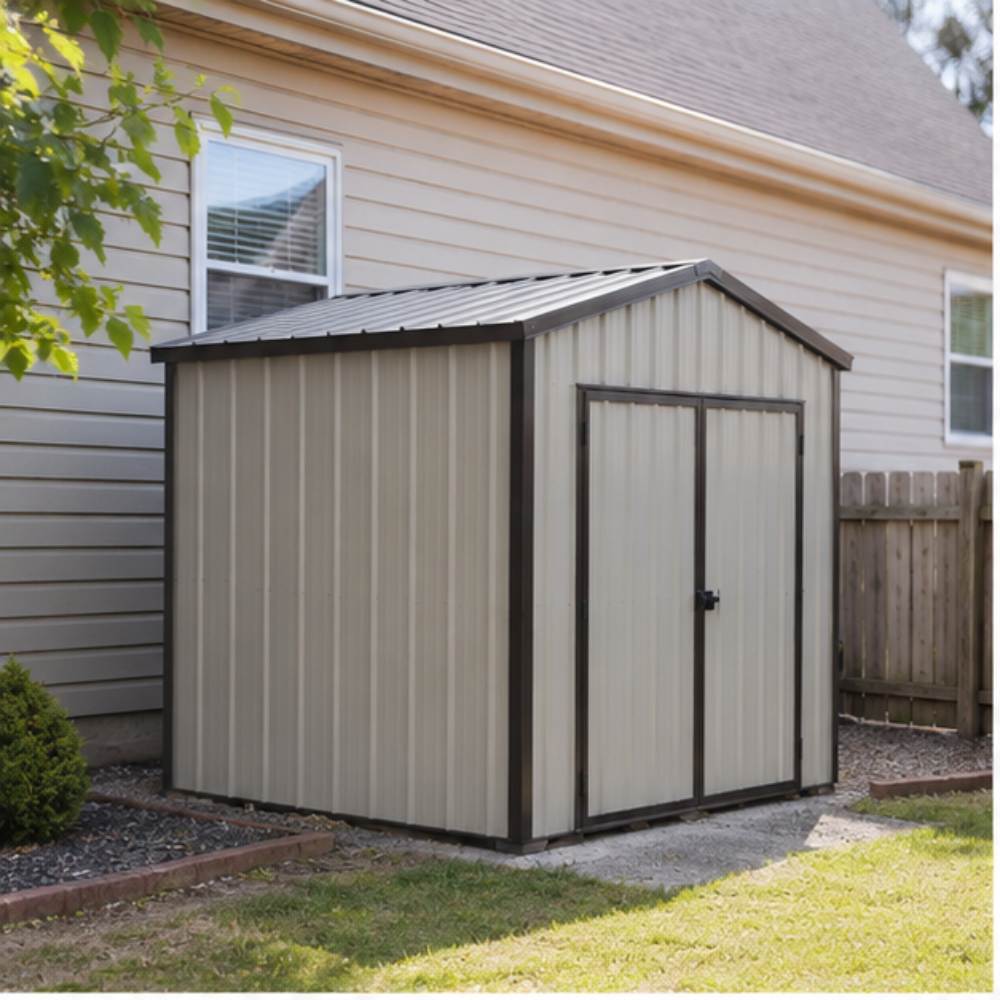

Backyard Storage Shed
The default 10×12 metal shed configuration for homeowners replacing a rotting wood or prefab plastic unit. Fits the lawnmower, two bikes, garden tools, hoses, and the holiday tubs that took over the garage. An 8-foot leg keeps the shed under most county zoning thresholds for accessory structures.
Zero-Turn Mower Garage
Built for homeowners with a John Deere or Cub Cadet zero-turn that’s outgrowing the garage. A 6×6 or 8×7 roll-up door clears a riding mower with the deck on, and 120 sq ft leaves room for fuel cans, a trimmer, and a wall of pegboard. Order with a roll-up door pre-installed.
Garden Shed with Windows
Gardeners spec this with two 30×30 windows and a 36-inch walk-in door for potting, seed-starting, and tool storage. The vertical-panel walls handle splash from a hose-down without rotting, and the 10-foot width fits a potting bench plus floor-to-ceiling shelving on the opposite wall.
Backyard Home Office
Remote workers convert a 10×12 steel building into an insulated home office for under $10K all-in. R-19 batts in the walls, double-bubble in the roof, a mini-split, and one French door makes a quiet 120 sq ft workspace separated from the house. Run conduit before slab pour.
Pool Equipment & Cabana
Pool owners use 120 sq ft to house the pump, filter, heater, and chemicals on one side and changing-room storage on the other. Galvalume panels resist chlorine vapor better than wood, and a 36-inch walk-in door with a deadbolt locks up chemicals when kids are around.

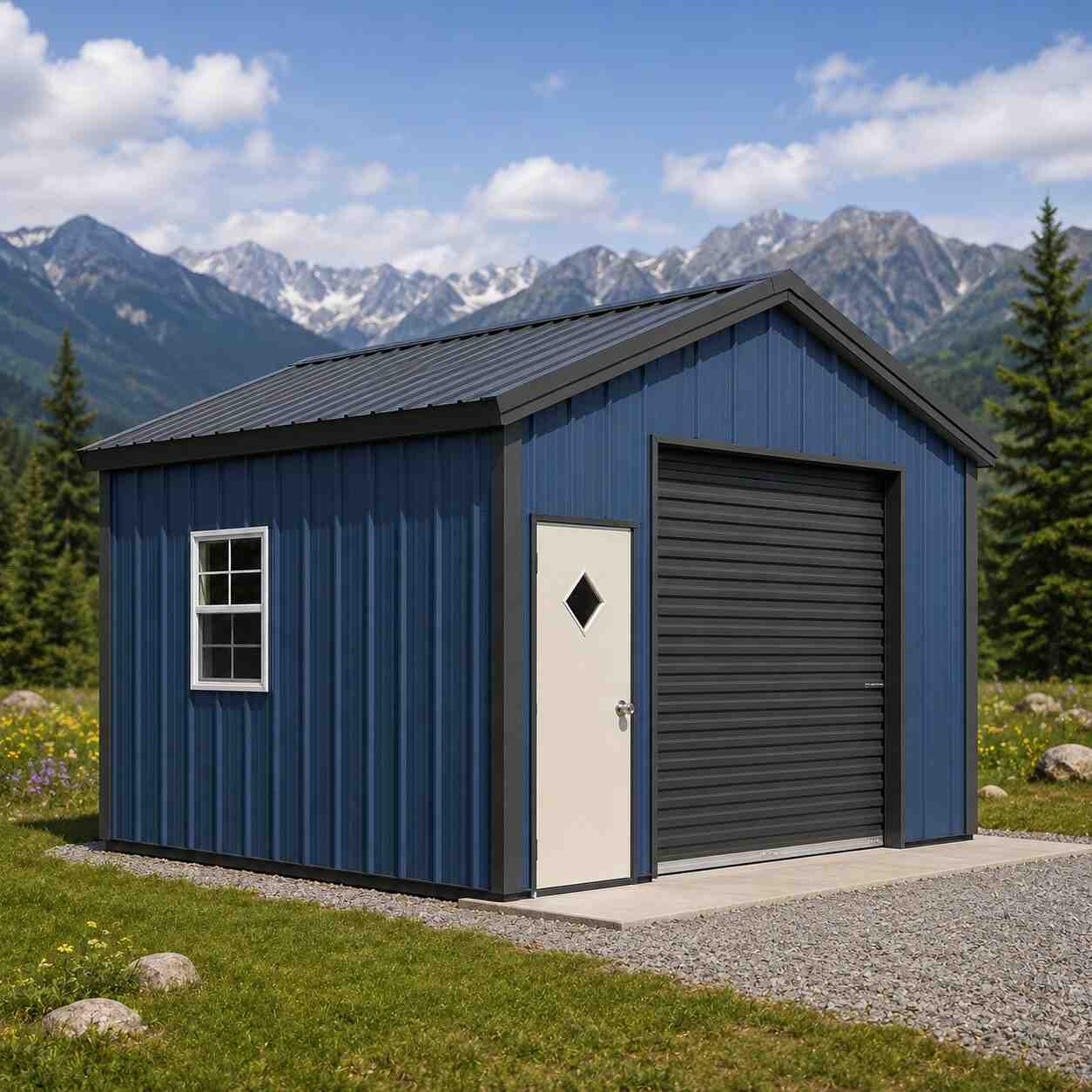

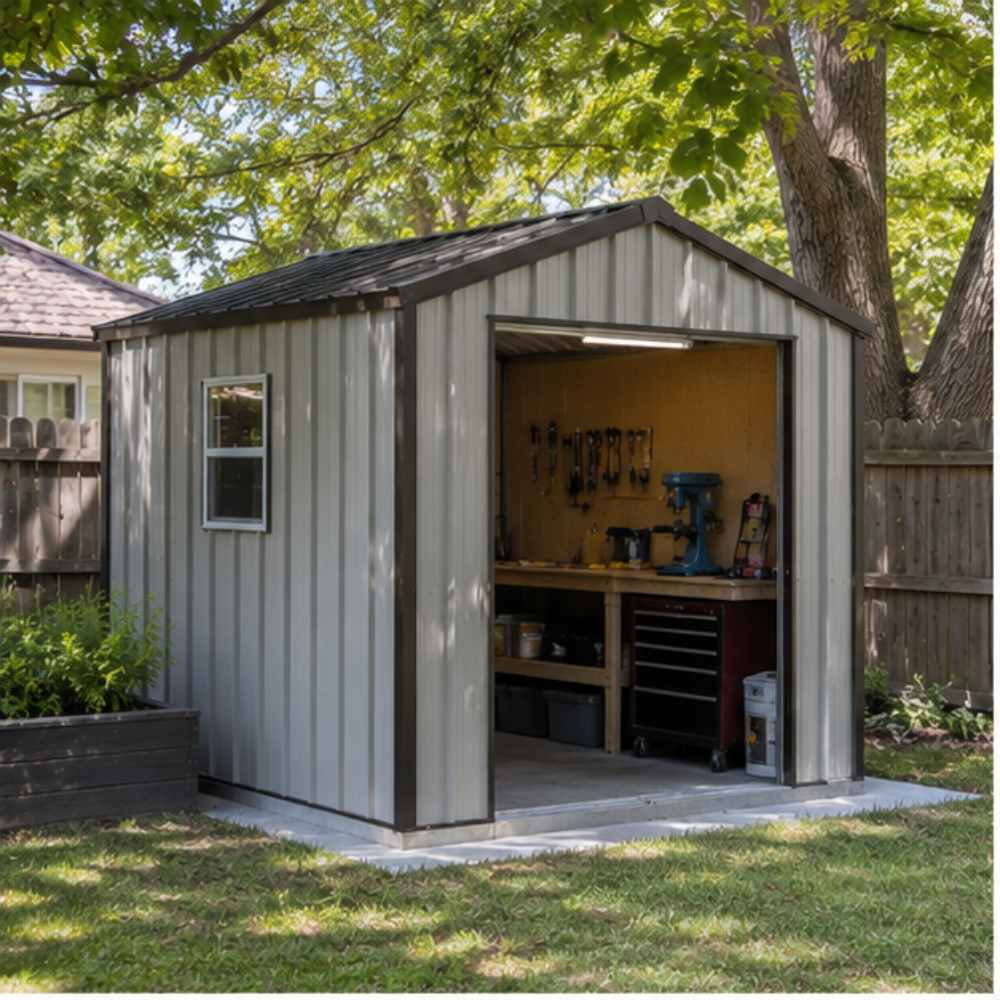

Workshop & Hobby Room
Hobbyists run a 10-foot workbench down the long wall, a 4-foot drill press station on the short wall, and still walk a project around. 9-foot legs give clearance for wall-mounted lumber racks. Add a window over the bench for natural light and a 60-amp subpanel for tools.
Bike & Sports Storage
Families with four-plus bikes, kayaks, and sports gear use a 10×12 utility shed to clear the garage. Wall-mounted vertical bike hooks fit eight bikes on one 12-foot wall. The 10-foot depth handles a 9-foot kayak diagonal-stored. A double-door front opening makes haul-in-haul-out painless.
Chicken Coop Shelter
Small property owners convert a 10×12 metal building into a predator-proof coop for 15-20 hens. Steel framing won’t be chewed by raccoons, and Galvalume walls hose-clean. Add a partial side opening for a covered run, vented gables for summer airflow, and a walk-in door for daily egg collection.
Garden Tractor & Implement Shed
Hobby farmers store a sub-compact tractor with the bucket dropped, plus a tiller and brush hog. 9-foot legs and a 9×8 roll-up door clear the ROPS on most Kubota BX and John Deere 1-series tractors. The 12-foot depth fits the tractor with implements still attached.
Motorcycle & Snowmobile Storage
Riders fit two motorcycles plus gear on one half and a snowmobile or ATV on the other. The 12-foot depth clears a full-dress touring bike with saddlebags. Specify a concrete slab and add a heavy-duty padlocked roll-up. Steel and Stud welds the frame to skip the chain-link feel of a kit.
Generator & Utility Enclosure
Homeowners with whole-house generators, well pumps, and battery storage centralize utilities in a 10×12 utility shed. Vented gables handle generator exhaust airflow, and the steel frame meets NEC clearance requirements better than a plastic enclosure. Add a walk-in door with louvered intake.
She-Shed / Studio Retreat
A 120 sq ft studio for art, yoga, reading, or escape from the kids. Spec it with two windows, a French door, wainscoting in a contrasting color, and full insulation. The 10-foot ceiling-to-wall feel is open enough that 120 sq ft reads as a real room, not a closet.
Don’t see your exact use case? Our advisors will help configure your 10×12 for any application. Request a free quote.
What’s Included in a 10×12 Metal Building Kit?
Every 10×12 building kit from Steel and Stud ships free to all 48 continental US states and includes free professional installation. The structural and weather-tight components below are standard at the $1,750 starting price. Upgrades sit in the next list, so pick what your build actually needs in the 3D builder.
Free With Every 10×12 Order
Standard configuration items at no extra cost.
- 14-gauge galvanized steel frameThe full tubular skeleton of your 10×12 building uses 14-gauge G90 hot-dipped zinc-coated steel tubing, which is the standard structural spec the Metal Building Manufacturers Association (MBMA) recommends for residential accessory structures.
- 29-gauge sheet metal panelsRoof and wall panels are 29-gauge powder-coated steel rated for 20-year fade resistance. Pick from 17 standard colors in sensei3d before you order your kit.
- Engineered ridge cap and trimColor-matched ridge caps, eave trim, corner trim, gable trim, and rake trim are included so the building looks finished, not pieced together from a shed kit.
- Color-coded fastening screwsSelf-tapping screws with neoprene washers come color-matched to your panel selection. Roughly 400-600 screws ship with a 10×12 build.
- Standard 36-inch walk-in doorOne steel-framed walk-in personnel door with weatherstripping and a keyed lockset is included on enclosed configurations.
- Anchoring kit for your surfaceConcrete wedge anchors, asphalt anchors, mobile-home anchors, or ground rebar augers. Steel and Stud sends the right hardware based on the install surface you tell us about.
- Engineered drawings for your buildYou’ll get the standard build drawings showing dimensions, panel layout, and anchor placement. Steel and Stud offers stamped engineered drawings as an upgrade for jurisdictions that require permit submittal. Add the upgrade before you order to avoid permit-office delays.
- Galvalume base railsThe frame’s base rails use Galvalume aluminum-zinc coating for ground-contact corrosion resistance, which matters more on a 10×12 than on larger buildings because the rail-to-ground ratio is higher.
- Free delivery to all 48 statesFree delivery on every 10×12 metal building order to the continental US. No hidden freight charges, no fuel surcharges added at quote time.
- Free professional installationFree professional installation is included on tubular-frame buildings: a Steel and Stud crew anchors and assembles the building on your prepared site, typically in one day for a 10×12.
- 20-year rust-through warrantyBoth the panels and the frame carry a 20-year rust-through warranty, the same warranty backing every Carports & More family build.
- 24-hour custom quote turnaroundAfter you submit your spec from the 3D builder, you’ll get a stamped custom quote back within 24 business hours. No haggling, no hidden line items.
+ Popular 10×12 Building Upgrades
Common add-ons buyers select on this footprint.
- 12-gauge frame upgradeStep the tubular frame from 14-gauge to 12-gauge for a 33% thicker wall section. The right pick in hurricane zones (FL, TX Gulf, NC, SC) or if you’re going to 140 MPH wind certification.
- 26-gauge sheet metal upgradeUpgrade panels from 29-gauge to 26-gauge for hail-prone regions, coastal salt exposure, or buyers who want maximum paint life on a long-term investment.
- Roll-up garage door (6×6, 8×7, 8×8, 9×8)Add a roll-up garage door for mower or motorcycle access. 8×7 is the most popular pick for a 10×12 metal building, clearing most riding mowers with the deck on.
- Additional walk-in or French doorsAdd a second walk-in door, a sliding barn door, or French doors for studio, office, or pool-house configurations. Full frames and weatherstripping included.
- 30×30 single-hung windowsAdd one or more 30×30 windows with screens; security bars optional for utility sheds storing tools or chemicals.
- SkylightsTranslucent roof panels add daylight to a 10×12 workshop or garden shed without running electrical, popular on Vertical Roof configurations.
- Insulation packageR-13 vapor barrier, R-19 fiberglass batt, or double-bubble radiant barrier. Match to climate and use; required for any 10×12 metal building converted to home office or studio.
- Wainscoting (two-tone walls)A 3-foot or 4-foot contrasting wall band gives the building a finished residential look; popular combo on a 10×12 is White walls + Barn Red wainscot + Galvalume roof.
- Stamped engineered drawingsState-licensed stamped drawings with foundation plan, wind/snow calcs, and IBC/IRC compliance details. Needed in some counties for the permit office even on a 120 sq ft structure.
- Hurricane / heavy-snow certificationEngineered upgrade for 140 MPH wind or 65 PSF snow load, with stamped calculations referencing ASCE 7-22 wind and snow load standards and AISI S100 cold-formed steel design specification.
- 4:12 or 5:12 roof pitch upgradeSteeper pitch sheds snow faster and adds attic clearance, recommended in heavy-snow regions like NY, CO, MI, MN, and ME and on any 10×12 building used as a year-round studio.
Customize & Build Your 10×12 Metal Building Online
Customize your 10×12 metal building inside sensei3d (the 3D building configurator). Pick gauge, roof, doors, windows, colors, and anchoring, save your spec, and we’ll send a stamped quote back in 24 hours.
Leg Height (8′ to 20′)
8-foot legs are the default on a 10×12 backyard shed; bump to 9 or 10 feet for workshop ceilings or riding-mower roll-up clearance. Heights above 12 feet are rare on.
3 Roof Styles
Regular Roof is the cheapest and fine in dry climates. A-Frame Horizontal (Boxed Eave) gives a residential look.
Roof Pitch & Slope
Standard 3:12 pitch handles most of the country. Upgrade to 4:12 or 5:12 in heavy-snow zones like Colorado, Maine, and upstate New York for faster shedding and better drainage during.
Frame Gauge (14 or 12)
14-gauge G90 galvanized tubing is the standard for a 10×12 metal building. Step up to 12-gauge if you’re in a hurricane zone, want 140 MPH certification, or simply want the.
Sheet Metal Gauge (29 or 26)
29-gauge panels are the residential standard with full 20-year warranty coverage. Upgrade to 26-gauge in hail-prone regions, coastal salt zones, or if the building stays unpainted Galvalume long-term.
Certification & Engineering
Stamped engineered drawings with foundation plan and wind/snow calculations are available for any 10×12, required by some county permit offices, optional in most. Add the upgrade before order to avoid.
Roll-Up Garage Doors
6×6, 8×7, 8×8, and 9×8 roll-up doors all fit a 10×12 footprint. 8×7 is the most popular for riding-mower access; 9×8 clears most sub-compact tractors with ROPS.
Walk-In Doors
Standard 36-inch steel walk-in personnel doors come with full frames, weatherstripping, and keyed locksets. Insulated upgrade available for home-office or studio conversions.
Hydraulic & Rapid Doors
Commercial hydraulic one-piece doors and high-speed rapid-roll doors are overkill for a 10×12 backyard build, but available if you’re using the building for a side-business workshop with frequent in-out cycles.
Windows & Skylights
30×30 single-hung windows are standard; most 10×12 buildings spec one or two. Translucent skylight panels add daylight without electrical, popular on garden sheds and workshops.
Framed Openings
Pre-framed openings let you cut in a window, exhaust fan, or mini-split line later without disturbing the structural frame. Cheap insurance if you might convert the shed to an office.
Garage Door Openers & Windows
Wi-Fi chain-drive openers pair with any roll-up door. Glass insert kits add daylight to the door itself, and motion-sensor LED packs are a popular pairing for nighttime mower access.
17 Standard Color Options
Pick from Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, and White, all with.
Mix-and-Match Roof, Walls, Trim
Different colors on each surface for free. Popular 10×12 combos: White walls + Barn Red roof + White trim (classic), Pewter Gray walls + Black roof + Black trim (modern).
Wainscoting (Two-Tone Walls)
A 3-foot or 4-foot contrasting band along the bottom of the walls. Adds curb appeal on a residential 10×12 metal shed and breaks up the visual height, great when the.
Galvalume (Bare Metal Finish)
Hot-dipped aluminum-zinc coating with no paint. Cheapest option, rural/industrial look, and excellent corrosion resistance, popular on chicken coops, pump houses, and farm storage.
Painted Trim & Flashings
Color-matched ridge caps, eave trim, corner trim, gable trim, and rake trim are standard. Color-coded screws keep the visual lines clean, no silver dots across a Barn Red wall.
Custom Color Match
Match an existing house, barn, or HOA-required palette. We pull color samples and quote the upcharge before you commit.
Insulation Options
Single-bubble for moisture control, double-bubble for radiant heat reflection, R-13 or R-19 fiberglass batts for full climate control. Required if the 10×12 is becoming a home office, studio, or year-round.

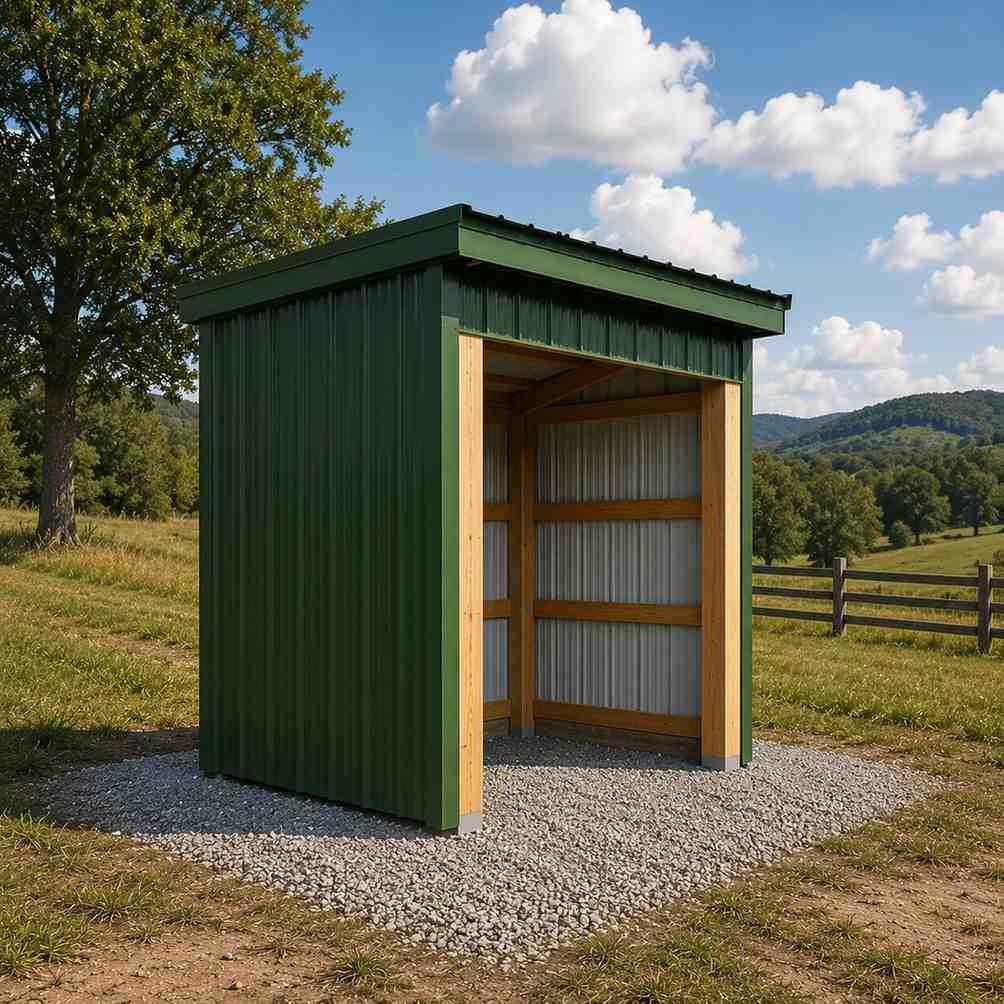

Lean-To Additions
Add a 4 or 6-foot lean-to off one long side of the 10×12 for covered firewood, lawn equipment, or a tractor overhang. Effectively expands usable footprint without bumping permit thresholds.
Mezzanines & Lofts
A small loft over half the 10×12 footprint adds 60 sq ft of seasonal storage. Engineered for 40 PSF live load.
Interior Partitions
Split the 120 sq ft into a 4×10 mechanical room (pool pump, generator, well pump) and a 6×10 storage side. Steel-stud partitions or insulated metal panels are both available.
Trim, Anchors, Gables
Decorative gable accents, contrasting trim packages, and accent gable vents turn a utility shed into a residential outbuilding. Worth it on any 10×12 sitting in the front or side yard.
Flooring Prep
Steel and Stud doesn’t pour the slab, but we send the spec: 4-inch concrete with #4 rebar 16 on center is standard for 10×12. Gravel pads and crushed-stone bases work.
Wind & Snow Certification
Standard 115 MPH wind, 35 PSF snow. Upgrade to 140 MPH for hurricane zones (FL, TX Gulf, Carolinas) or 65 PSF for heavy-snow regions.
Permit-Ready Drawings
Stamped engineered drawings include foundation plan, anchoring detail, and load calculations compliant with International Building Code (IBC), International Residential Code (IRC), and where applicable NEC and IECC.
Door Locks & Access Control
Slide bolts and padlocks standard, deadbolts and keypad entry as upgrades. Wi-Fi smart locks pair well with home-office configurations.
Fire Safety & Alarms
Smoke detectors, ABC fire extinguishers, and exit signage are buyer-installed but easy on a 10×12 build. Required for any home-office conversion in most jurisdictions per local fire marshal.
Anchoring System
Concrete wedge anchors for slabs, asphalt anchors for blacktop, mobile-home anchors for compacted gravel, auger ground anchors for bare soil. Steel and Stud sends the correct hardware based on your.
Solar & Roof-Top Loads
A 10×12 vertical roof can carry a 6-panel residential solar array, useful for off-grid garden sheds, well-pump enclosures, or studios. Roof framing reinforced at order time, not retrofit later.
10x12 Metal Building Codes, Permits & Engineering
Most US counties exempt accessory structures under 120-200 sq ft from building permits, which means a 10x12 metal building (exactly 120 sq ft) often falls just under the threshold. Rules vary, so check your county before you order.
We also adhere to plumbing codes, energy conservation standards, and any state or local requirements. Our team handles code compliance so you have total peace of mind.
How to Maintain a 10x12 Metal Building
A 10x12 metal building from Steel and Stud is engineered to last decades with very little upkeep, but a 30-minute walkaround twice a year keeps the warranty intact and the building looking new.
What Can You Do with 120 Square Feet?
120 sq ft sounds small until you actually lay it out. Here's what fits inside a 10x12 metal building based on real builds Steel and Stud has installed across all 48 continental US states.
One zero-turn riding mower (60-inch
One zero-turn riding mower (60-inch deck), a wall of pegboard tools, two fuel cans, and a string trimmer hung overhead.
Eight bikes wall-mounted vertically on
Eight bikes wall-mounted vertically on one 12-foot wall, plus two kayaks stored diagonally and a workbench on the short wall.
A 10-foot workbench down the
A 10-foot workbench down the long wall, a drill press, a miter saw station, and walking room for a project up to 6 feet long.
A backyard home office
A backyard home office: 5-foot desk, two monitors, a guest chair, a small bookshelf, and a mini-split, all comfortable in 120 sq ft.
Pool equipment side (pump, filter,
Pool equipment side (pump, filter, heater, chemical shelf) plus a 5-foot changing-room side with a hook wall and a bench.
Sub-compact tractor (Kubota BX, John
Sub-compact tractor (Kubota BX, John Deere 1025R) parked with bucket dropped, plus a tiller hung on the wall and a shelf of garden chemicals.
A chicken coop for 18
A chicken coop for 18 hens with nesting boxes on the short wall, a roost bar above, and a partial-side opening to a covered run.
Two motorcycles with saddlebags on
Two motorcycles with saddlebags on one side, a snowmobile or ATV on the other, plus shelving for helmets, jackets, and tools.
3 Ways to Order Your 10x12 Metal Building
Customize your 10x12 steel building in our free 3D builder, request a free custom quote, or talk directly with a building expert. Reservation deposit typically 10% to 30% based on your state and manufacturer.
Request Free 10x12 Quote
Free custom design, reply within 24 hours
Send us your 10x12 spec (gauge, roof, doors, color, install state) and a Steel and Stud building expert returns a stamped custom quote within 24 business hours. No deposit, no phone calls until you're ready, no obligation. The fastest path for buyers who already know what they want.
- Stamped quote in 24 hours
- Free delivery in all 48 states
- Free install on tubular frames
- 20-year rust-through warranty
- Flexible deposit holds your slot
Free quote. 10-30% deposit reserves your build slot after approval.
Build Your 10x12 in 3D
Design your 10x12 yourself in our free 3D builder
Open sensei3d (the 3D building configurator), drag your 10x12 metal building together, pick gauge, roof style, doors, windows, and colors, and save your spec. Submit when you're done and a stamped custom quote lands in your inbox within 24 business hours, with no hidden fees.
- Design in 3D before you commit
- See every option visualized
- Save and share your spec
- Submit for 24-hour quote
- Free tool, no credit card
Free tool. Flexible deposit reserves your build after quote approval.
Talk to a 10x12 Building Expert
Fastest answers, call or chat now
Prefer to walk through your 10x12 metal building over the phone? A Steel and Stud building expert can size doors, recommend gauge, talk through your county's permit norms, and lock in your spec in 15 minutes. Best for first-time buyers or anyone with site-specific questions.
- Direct line to a building expert
- Permit and code guidance
- Door and gauge recommendations
- Financing and RTO walkthrough
- Same-day spec confirmation
Toll-free. Speak with an expert now.
How the 3D Builder Works
Spec your 10x12 metal building yourself in sensei3d (the 3D building configurator). Four steps, no account required, and a stamped quote returns within 24 business hours of submission.
Pick Your Size
Lock in 10x12 as the footprint and choose your leg height between 8 and 20 feet. The 3D model updates instantly as you drag the dimensions.
Choose Roof Style
Toggle between Regular Roof, A-Frame Horizontal (Boxed Eave), and Vertical Roof. Pick the pitch: 3:12 standard, or 4:12/5:12 for snow regions.
Add Doors, Windows, Colors
Drag in roll-up doors, walk-in doors, and windows where you want them on the 10x12 footprint. Pick from 17 colors for roof, walls, and trim.
Get Your Quote
Submit your saved spec and a Steel and Stud building expert returns a stamped custom quote within 24 business hours, with no haggling and no hidden fees.
Ready to design your custom 10x12 metal building in 3D?
Customize My 10x12 in sensei3d →
Tip: Open sensei3d in a new tab so you can keep this page open for spec and certification reference. No deposit until you approve the final spec.
How Much Does a 10x12 Metal Building Cost?
Starting at $1,750 and running up to about $2,250 fully installed, a 10x12 metal building from Steel and Stud answers the how much is a 10x12 metal building question with a real range that includes free delivery and free professional installation. That installation cost is built in, not bolted on later.
Your Location
Delivery is free to all 48 continental US states, but coastal hurricane zones and heavy-snow regions often require certification upgrades that move the price up. Inland Texas costs less to certify than coastal North Carolina, even at the same 10x12 footprint.
Steel Gauge
14-gauge tubular framing with 29-gauge panels is the standard 10x12 spec and hits the floor of the price range. Stepping to 12-gauge frame and 26-gauge panels adds roughly 15-25% but extends the warranty profile and survives hail and hurricanes.
Roof & Layout
Regular Roof is the cheapest. Boxed Eave adds a residential look for a small upcharge. Vertical Roof costs the most but is required for snow shedding and is what most northern-state buyers pick.
Certification
Stamped engineered drawings, 140 MPH wind certification, or 65 PSF snow load engineering each add to the quote. Necessary in some counties, optional in most. Steel and Stud tells you which applies in your zip code.
Doors & Access
One walk-in door is included. Adding a roll-up garage door (8x7 or 9x8), a sliding barn door, or a second walk-in adds to the build. Windows, skylights, and openers stack on top.
Site Conditions
A level concrete slab is the cleanest install. Gravel pads, asphalt, and bare ground all work but require different anchoring hardware. Steeply sloped sites or remote rural delivery may carry a final-mile coordination fee.
10x12 Metal Building Complete Price Range
Compact Standard Garage (below typical range), 120 sqft @ ~$16.78/sqft, ±12% range for options. Excludes sales tax, shipping, site prep, concrete slab, permits, and install add-ons.
Flexible Financing & Rent-To-Own
Choose the payment path that fits your project and budget
Traditional Financing
Credit Check Required
- Loans available across all 48 states
- Competitive rates with approved credit
- Flexible 24-84 month repayment terms
- Simple online application, fast decisions
- Ownership from day one
Rent-To-Own (RTO)
No Credit Check
- No credit check, no credit score requirement
- Fast same-day approval in most states
- Low upfront payment to start
- Affordable monthly payments 24-60 months
- Own the 10x12 building at end of term
How Delivery & Installation Works
After your deposit lands, Steel and Stud handles everything from production to free delivery and free professional installation. Here's the exact sequence from order to your installed 10x12 building.
Place Your Order
Reservation deposit (typically 10-30%) confirms your spec and locks your build slot in the production schedule.
Step 1
Production
Your 10x12 frame and panels are pre-engineered and cut to spec at the manufacturing facility, typically within 3-4 weeks.
Step 2
Prepare the Site
You level the install pad (concrete, gravel, asphalt, or ground) while production runs. Steel and Stud sends written prep specs.
Step 3
Installation
A Steel and Stud crew delivers and installs the 10x12 building on your prepared site free of charge, usually in one day.
Step 4
10x12 Metal Building Reviews from Verified Buyers
Real feedback from verified 10x12 owners.
Replaced a rotting wood shed with the 10x12 metal building. Riding mower fits with room for a workbench. Crew installed it in under five hours and free delivery actually meant free.
Needed snow certification and Steel and Stud delivered stamped engineered drawings my county accepted on the first submission. Two winters in, zero issues, and the Barn Red looks new.
Built mine as a backyard home office with full insulation and a mini-split. 120 sq ft is plenty for a desk, a chair, and a bookshelf. Quote came back in 18 hours and the price held.
Compare 10x12 vs. Other Metal Building Sizes
Choosing between a 10x10 and a 12x16 comes down to what you're actually storing. Here's how the four nearest sizes stack up against the 10x12 footprint.
| Feature | 10x10 Building | 10x12 Building | 12x12 Building | 12x16 Building |
|---|---|---|---|---|
| Square Footage | 100 sq ft | 120 sq ft | 144 sq ft | 192 sq ft |
| Use Capacity | Tools + bikes | Mower + workbench | Hobby room or studio | Tractor + workshop |
| Access Potential | 6x6 roll-up max | 8x7 roll-up fits | 9x8 roll-up fits | 10x8 roll-up fits |
| Roof Style | Regular standard | Vertical recommended | Vertical recommended | Vertical required |
| Best For | Tight side yards | Backyard storage | Studios & offices | Equipment storage |
| View 10x10 | You're Here | View 12x12 | View 12x16 |
10x12 Metal Building FAQ: Cost, Permits, Sizes & Install
Quick answers to the most-asked 10x12 buyer questions.
Request Your Custom Design & Quote
Tell us about your project and we’ll provide a custom design with exact pricing. No obligation, no pressure just helpful information to guide your decision.
Customize Other Metal Carport Sizes
Need a different size? Customize any of these nearby sizes in our 3D builder.
Utility Metal Carports – 20 x 35 x 10
700 sq ft — utility carport with storage and garage door
14 Gauge
Local Certification Available
20x35x10 Utility Metal Carport Specs, Dimensions & Custom Options
Buy a 20x35x10 utility metal carport for covered vehicle parking, secure tool storage, contractor equipment protection, farm equipment cover, RV storage, boat storage, trailer shelter, lawn equipment storage, business inventory, and utility storage space. This 700 sq ft steel carport delivers open covered parking plus custom utility enclosure options, 10′ leg clearance, fast custom quotes, free delivery, and professional installation options in the 48 continental US states.
| Carport Footprint | 20′ Wide × 35′ Longwith 10′ leg height for vehicles, trucks, trailers, boats, UTVs, mowers, farm equipment, contractor tools, and lockable utility storage |
|---|---|
| Total Covered Square Footage | 700 square feetof steel-covered parking, equipment protection, utility storage, business storage, and weather-protected work space |
| Product Type | Utility metal carport, 20×35 steel carport, metal carport with storage, utility storage carport, equipment cover, RV carport, farm carport, contractor storage shelterQuote Ready |
| Configuration Options | Open carport, utility carport with enclosed storage room, partially enclosed sides, gable ends, side panels, end panels, roll-up door package, walk-in door package, or fully enclosed conversion |
| Roof Styles | Regular Roof for budget pricing, A-Frame Horizontal / Boxed Eave for a clean peaked look, or Vertical Roof for the best rain and snow runoff |
| Recommended Roof | Vertical roof recommended for a 20×35 utility metal carport when you want premium drainage, stronger curb appeal, better weather performance, and long-term value |
| Frame Gauge | 14-gauge galvanized steel tubing standard, 12-gauge upgrade available for heavy-duty utility carports, commercial properties, high-wind zones, and equipment storage |
| Roof & Side Panels | 29-gauge sheet metal standard, 26-gauge upgrade available for hail-prone regions, coastal climates, commercial use, and higher impact resistance |
| Clearance & Access | 10′ leg height supports pickups, work vans, SUVs, small RVs, boats, trailers, tractors, UTVs, mowers, service vehicles, and utility storage access |
| Optional Openings | Roll-up doors, walk-in doors, framed openings, windows, vents, gables, side panels, end walls, utility enclosure, lean-tos, and custom storage packages available |
| Color Options | 17 colors for roof, trim, and panel upgrades: Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, White |
| Wind Rating | 115 MPH standard, certified upgrades available up to 170+ MPH for coastal, hurricane, open-lot, farm, residential, and commercial properties |
| Snow Load | 35 PSF standard, certified snow-load packages available up to 65+ PSF for northern and mountain-region installations |
| Certification | Permit-ready engineered and stamped drawings available for certified 20x35x10 utility metal carports that must meet local building codes |
| Anchoring | Concrete anchors, asphalt anchors, mobile home anchors, or auger anchors selected for your slab, driveway, gravel pad, commercial lot, farm pad, or ground installation |
| Free Delivery | Included on qualifying ordersin the 48 continental US states |
| Installation | Professional installation available on tubular-frame 20x35x10 utility metal carports after your site is level, accessible, and ready |
| Lead Time | 4 to 6 weeks from order confirmation in many service areas, with peak-season scheduling based on manufacturing and route availability |
| Installation Time | Often completed in 1 day for standard open or basic utility carports; enclosed upgrades, doors, certified packages, and complex sites may require additional time |
| Warranty | 20-year rust-through warranty options plus 90-day workmanship guarantee on eligible structures |
Limited + Product Pledge
Paint Finish
Workmanship Guarantee
Workmanship Guarantee
What’s Included in a 20x35x10 Utility Metal Carport?
Every 20x35x10 utility metal carport package is built for buyers who want fast pricing, strong steel coverage, dependable vehicle protection, lockable storage options, and a clean installation experience. Get the essentials for covered parking, equipment storage, farm use, RV cover, boat storage, contractor tools, business inventory, and utility storage without overpaying for a fully enclosed building.
Free With Every 20x35x10 Utility Carport Order
Core steel carport components included for a quote-ready utility storage package
- 14-gauge galvanized steel frame20′ x 35′ utility carport footprint with 10′ leg height for vehicles, trailers, tools, boats, mowers, and equipment
- Choice of 3 roof stylesRegular, A-Frame Horizontal / Boxed Eave, or premium Vertical Roof for better water runoff
- 29-gauge sheet metal roofingDurable roof panels in your preferred color with optional utility room, side panel, and end panel upgrades
- 17 color optionsChoose roof, trim, and panel colors to match your home, business, farm, workshop, or fleet yard
- Galvanized purlins and bracingSteel secondary framing designed to support long-term carport strength, stability, and daily use
- All hardware includedFasteners, screws, brackets, bolts, trim hardware, and installation-ready components
- Painted trim and ridge capsColor-matched trim gives your 20×35 utility carport a clean finished look
- Foundation-matched anchorsConcrete, asphalt, mobile home, or auger anchors matched to your install surface
- FREE delivery to 48 statesCurbside delivery to your prepared installation address on qualifying metal carport orders
- Professional installation availableExperienced crews install eligible tubular-frame utility carports after your site is level and accessible
- Warranty-backed steel coverageLong-term frame, panel, paint, and workmanship warranty options on eligible builds
+ Popular 20x35x10 Utility Carport Upgrades & Add-Ons
Upgrade your utility metal carport for better storage security, commercial performance, code compliance, weather protection, and higher property value
- Vertical roof upgradePremium choice for rain, snow, leaf shedding, debris control, and long-term carport performance
- Utility storage enclosureTurn part of the carport into lockable storage for tools, supplies, farm gear, contractor equipment, and seasonal inventory
- 12-gauge steel frame upgradeHeavy-duty tubing for commercial buyers, farms, exposed sites, equipment yards, and long-term storage use
- 26-gauge roof panel upgradeThicker metal panels for better durability in hail-prone and high-use environments
- Certified / engineered drawingsStamped plans for permits, financing requirements, code review, insurance, and property approvals
- Higher wind and snow ratingsUpgrade to certified wind and snow loads for storm-prone, coastal, open-lot, and mountain regions
- Side panels and end panelsAdd partial or full enclosure to block sun, rain, wind, and side-blown weather
- Roll-up and walk-in doorsCreate secure access for utility storage, tool rooms, equipment bays, and business supplies
- Gable ends and boxed trimImprove curb appeal while helping close off roof-end exposure
- Insulation and condensation controlAdd vapor barriers or insulation packages where drip control, tool protection, or inventory protection matters
- Wainscoting and two-tone panelsPremium appearance for homes, offices, farms, dealerships, service businesses, and customer-facing properties
- Lean-to extensionsAdd extra covered bays for trailers, side storage, tractors, customer parking, or loading areas
Customize & Buy Your 20x35x10 Utility Metal Carport
Build the 20×35 utility metal carport that fits your vehicles, tools, business, farm, lot, climate, and budget. Choose roof style, steel gauge, color, certification, anchors, side panels, gable ends, utility enclosure, doors, windows, insulation, lean-tos, and financing options before you request your best price.
10′ Leg Height
The 20x35x10 footprint gives you 700 sq ft of covered utility space with 10′ legs for pickups, work vans, boats, trailers, small RVs, tractors, UTVs, mowers, and storage access. It is a strong utility carport size for buyers who want vehicle coverage plus room for an enclosed storage area.
20′ Wide Utility Layout
The 20′ wide design gives practical vehicle coverage while allowing smart storage layouts for tools, feed, parts, contractor equipment, powersports gear, and property maintenance supplies.
35′ Extended Depth
The 35′ length creates space for covered parking, trailer storage, utility enclosure, work staging, lawn equipment, farm supplies, and business inventory under one durable steel roof.
3 Roof Styles
Regular Roof is the lowest-cost option. A-Frame Horizontal adds a classic peaked profile. Vertical Roof is the best-selling premium option for 20×35 utility carports because water, snow, leaves, and debris shed more efficiently from the roof panels.
Frame Gauge (14 or 12)
14-gauge galvanized steel tubing comes standard for dependable everyday coverage. Upgrade to 12-gauge steel when you need a heavy-duty utility carport for business use, higher wind exposure, equipment protection, or longer service life.
Certified Carport Packages
Certified 20x35x10 utility metal carports can be engineered for local wind and snow requirements. Add stamped drawings when your county, lender, insurance company, HOA, or commercial property manager requires documentation.
Utility Storage Room
Enclose a portion of the 20×35 carport to create a lockable storage room for tools, parts, inventory, feed, mowers, powersports gear, landscaping equipment, or contractor supplies while keeping the remaining bays open for parking.
Side Panel Options
Add one side, both sides, partial sides, or taller panels to reduce sun exposure, rain splash, wind, and visibility from neighboring properties. Side panels are one of the most requested upgrades for utility carport buyers.
End Panel Options
Close the front, rear, or both ends with partial panels, full panels, or gable ends. End panels improve weather protection and help create a cleaner, more finished look for your property.
Roll-Up Door Upgrades
Add a roll-up door to the utility enclosure for secure access to tools, landscaping gear, seasonal inventory, farm supplies, service equipment, and small business stock.
Walk-In Door Access
Add a 36″ walk-in door to the utility enclosure for easy daily entry. Personnel doors are popular for businesses, farms, homeowners, and contractors who want fast access without opening a roll-up door.
Open Parking + Storage Layout
Keep the main bay open for vehicles, trailers, or equipment while using the enclosed utility section for secure storage. This layout is ideal for buyers who want covered parking and lockable storage in one structure.
17 Standard Color Options
Choose from Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, and White. Color choices help match your home, storefront, barn, shop, farm, or business branding.
Mix-and-Match Roof and Trim
Pick separate colors for the roof, trim, gables, and optional side panels. Popular high-conversion combinations include Black roof with White trim, Pewter Gray with Black trim, Barn Red with White accents, and Galvalume with Black trim.
Wainscoting (Two-Tone Panels)
Add wainscoting to side panels or enclosed utility sections for a more premium property appearance. Two-tone panels are a smart upgrade for farms, shops, dealerships, service businesses, and residential curb appeal.
Galvalume Finish
Galvalume is a practical bare-metal finish for buyers who want durability, low maintenance, and a clean industrial look. It is commonly selected for farms, equipment yards, shops, and high-traffic commercial properties.
Painted Trim & Flashings
Color-matched trim, ridge caps, corners, and gable trim give your 20×35 utility carport a finished look. This small detail makes the structure look more permanent and professional.
Business-Friendly Curb Appeal
For utility carports, color matching helps create a consistent appearance across homes, lots, buildings, fleet areas, farm yards, and customer-facing properties. Ask for a quote that matches your existing brand or building colors.
Parking + Utility Storage
Use the 20×35 carport for covered vehicle parking, trailer storage, tool storage, utility room storage, mowers, side-by-sides, equipment, and small business supplies while keeping everything organized and protected.
Contractor Storage Setup
Create a practical covered area for work trucks, ladders, pressure washers, compressors, hand tools, jobsite materials, and lockable equipment storage without the cost of a full garage.
Farm & Ranch Storage
Protect compact tractors, feed, seed, tack, pumps, mowers, utility trailers, implements, and farm supplies with a durable steel carport and enclosed utility storage area.
Condensation Control
Add a vapor barrier, insulation, or condensation-control package when vehicles, tools, inventory, feed, documents, parts, or machinery need extra protection from roof drip and temperature swings.
Lighting & Electrical Prep
Plan the layout for lights, outlets, security cameras, battery chargers, EV chargers, shop tools, gate access, or business use before installation. Your electrician can finish utilities after the structure is installed.
Future Enclosure Planning
Start with a 20×35 utility carport now and add panels, doors, windows, vents, insulation, lean-tos, or additional enclosed storage later. Planning future upgrades during the quote process helps prevent layout mistakes.
Wind & Snow Certification
Standard packages are built for everyday conditions, while certified packages can be upgraded for stronger wind and snow requirements. This matters for coastal states, open lots, mountain regions, and permitted installations.
Permit-Ready Drawings
Engineered drawings and stamped plans are available when required by your city, county, HOA, lender, or insurance provider. Ask before ordering so your 20x35x10 utility carport is quoted correctly the first time.
Anchoring System
Concrete wedge anchors, asphalt anchors, mobile-home anchors, or auger anchors are selected based on the install surface. Correct anchoring is critical for carport stability and code compliance.
Security Add-Ons
Add motion lights, cameras, lockable utility storage, walk-in doors, roll-up doors, enclosed panels, and reinforced access points for higher-value vehicles, tools, trailers, machinery, and commercial inventory.
Fire & Access Planning
Commercial and farm sites may need access spacing, emergency visibility, lighting, electrical planning, ventilation, and fire-department requirements. Our quote team can help you prepare the right questions before you buy.
Solar & Roof-Top Planning
If you plan to add solar panels, lighting, cameras, vents, fans, or roof-mounted equipment, request the right engineered package up front so your 20×35 metal carport can be specified correctly.
20x35x10 Utility Metal Carport Codes, Permits & Engineering
Order a certified 20x35x10 utility metal carport when your county, HOA, business property, lender, or insurance company requires permit-ready drawings. We can quote engineered packages for local wind load, snow load, anchoring, and site requirements so you can move from quote to installation with fewer delays.
Permit requirements vary by county and use case. Ask for a certified utility metal carport quote if you need stamped drawings, stronger wind or snow ratings, foundation guidance, residential documentation, business storage documentation, commercial approval, or HOA support.
How to Maintain a 20x35x10 Utility Metal Carport
A steel utility carport is a low-maintenance investment, but quick seasonal care protects your vehicles, tools, equipment, utility enclosure, roof panels, frame, anchors, trim, doors, and paint finish for years of daily residential, farm, or business use.
Best Uses for a 20x35x10 Utility Metal Carport
A 700 sq ft utility steel carport gives you covered space for vehicles, tools, equipment, inventory, trailers, farm supplies, work areas, and secure utility storage
Vehicle + Utility Storage
Cover cars, pickups, SUVs, vans, trailers, and equipment while adding secure enclosed storage for tools and supplies
Contractor Equipment Cover
Protect tools, ladders, compressors, pressure washers, mowers, parts, and jobsite equipment from sun, rain, and theft exposure
Business Inventory Storage
Use the utility enclosure for retail overflow, boxed goods, parts storage, product staging, service supplies, or secure stock storage

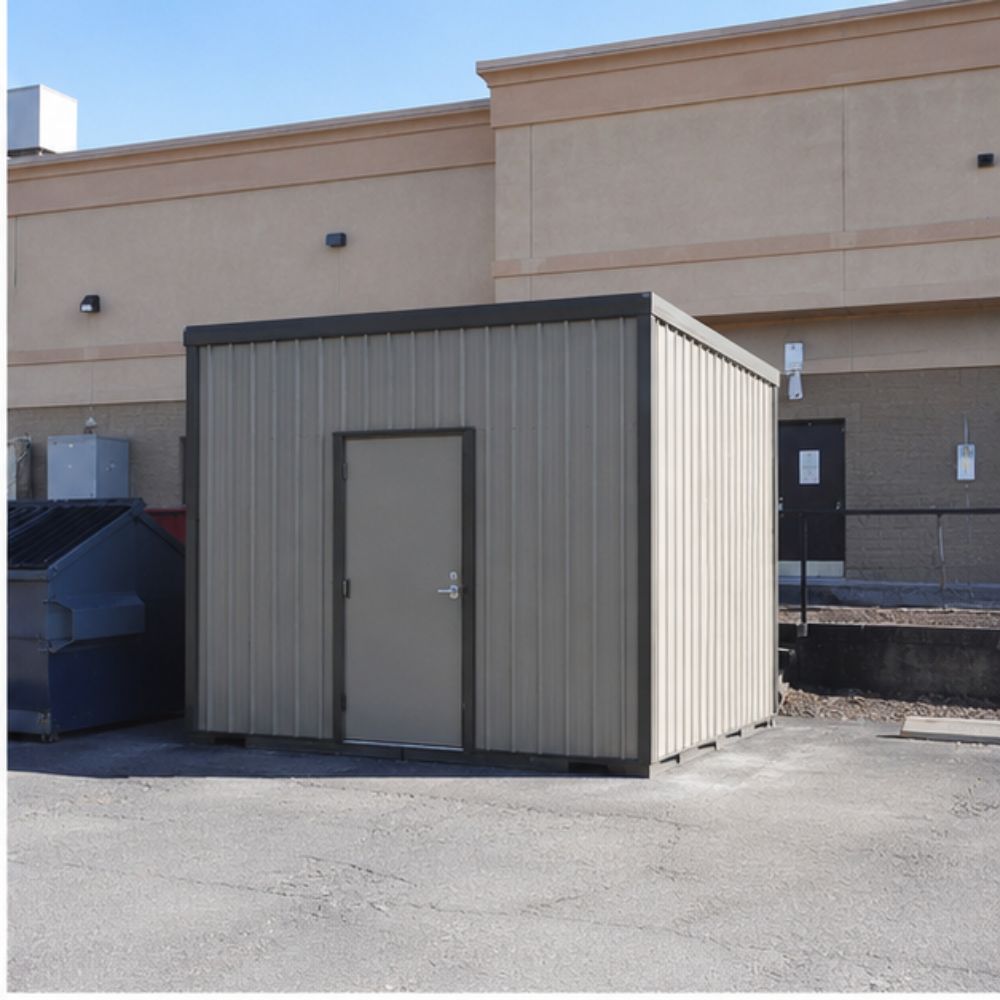

Commercial Utility Shelter
Add protected parking and storage for employees, service vehicles, delivery equipment, maintenance tools, and daily operations

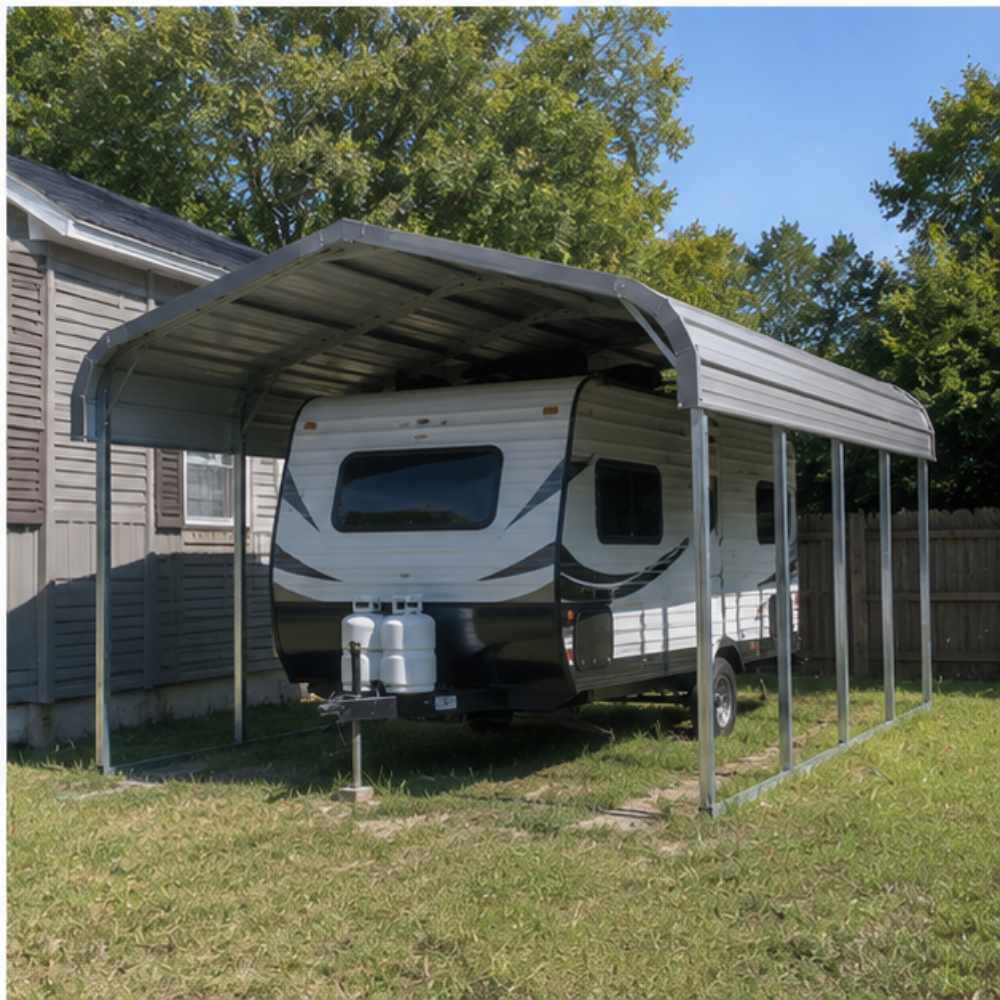

RV, Boat & Trailer Cover
The 10′ legs provide practical clearance for many boats, campers, cargo trailers, utility trailers, and recreational vehicles
Outdoor Work Bay
Create shaded space for detailing, loading, staging, repairs, maintenance, and weather-protected work

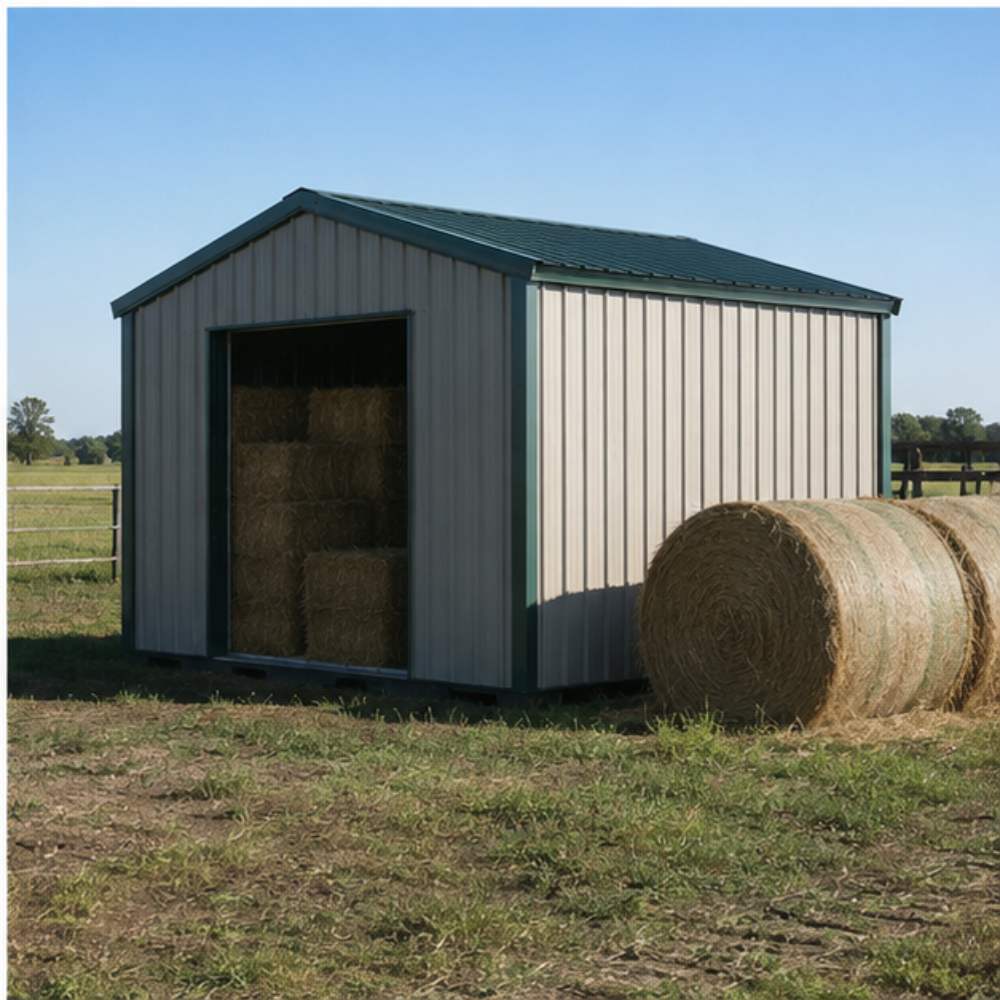

Farm & Ranch Storage
Shelter compact tractors, hay equipment, implements, feed, seed, tack, side-by-sides, pumps, and farm supplies under durable steel roofing
Property Value Upgrade
Add a cost-effective utility carport that improves covered parking, secure storage, organization, curb appeal, and long-term property value
3 Ways to Order Your 20x35x10 Utility Metal Carport
Get your best price on a 20x35x10 utility metal carport today. Request a free custom quote, configure your utility carport package, or speak with a building expert about pricing, delivery, installation, certification, financing, rent-to-own, storage enclosure, doors, panels, and site requirements.
Request Free 20x35x10 Quote
Best price, custom layout, fast response
Tell us where the carport will be installed and how you plan to use it. Our team will price a 20x35x10 utility metal carport with the right roof style, gauge, anchors, panels, utility enclosure, certification, doors, and delivery options for your property.
- Free expert utility carport design consultation
- Vehicle, contractor, farm, RV, storage, and business quotes
- Certified and non-certified packages available
- Fast quote for high-intent buyers ready to order
Free quote. Flexible deposit options after approval.
Build Your Utility Carport Quote
Design the structure and compare options
Choose a utility metal carport layout, roof style, colors, gauge, side panels, gable ends, utility storage enclosure, roll-up door, walk-in door, insulation, and enclosure upgrades. Then contact us to verify your final price, local availability, and installation details.
- Visual metal carport customization
- Compare roof, color, door, and panel upgrades
- Plan residential, farm, storage, or commercial utility layouts
- Send your configuration for final quote review
Final pricing confirmed by your advisor.
Talk to a Carport Expert
Fastest answers, call or chat now
Speak directly with a metal carport advisor who can help with price, lead time, certified drawings, foundation questions, financing, rent-to-own eligibility, roof style, storage enclosure sizing, door options, and the right upgrade package for your property.
- Instant answers over the phone
- Expert guidance on permits and certification
- Roof, gauge, color, door, and panel recommendations
- Mon to Fri 8am to 6pm PST, Sat 9am to 3pm
Toll-free. Speak with an expert now.
How the Utility Metal Carport Quote Process Works
Design your 20x35x10 utility metal carport in minutes
1. Start Your Quote
Open the quote page so you can compare roof styles, panels, colors, doors, anchors, certification, utility storage, and upgrades.
2. Configure Your Carport
Set the 20×35 size, 10′ leg height, roof style, colors, side panels, utility enclosure, roll-up door, walk-in door, and certification options.
3. Share Your Design
Send your configuration details, preferred doors, colors, storage needs, usage, and installation zip code before requesting final pricing.
4. Complete Your Quote
We will confirm pricing, scheduling, delivery, installation, certification, storage enclosure details, and site preparation requirements.
Ready to price your custom 20x35x10 utility metal carport?
Tip:Keep this page open so you can return and submit your final configuration with ease.
How Much Does a 20x35x10 Utility Metal Carport Cost?
The cost of a 20x35x10 utility metal carport depends on roof style, steel gauge, certification, state, anchors, side panels, end panels, gable ends, color package, utility storage enclosure size, roll-up doors, walk-in doors, windows, insulation, and enclosed storage upgrades. Request a custom quote for current utility carport prices, free delivery eligibility, installation availability, financing, and rent-to-own options.
Roof Style
Regular roof is the most affordable. A-Frame Horizontal adds a peaked look. Vertical roof costs more but is the top-value choice for 20×35 utility carports because it improves drainage and long-term performance.
Your Location
State pricing, delivery routes, local labor, manufacturing coverage, permit requirements, site access, and certified load requirements can affect your final utility carport price.
Steel Gauge
14-gauge steel is the standard choice for many carports. 12-gauge steel is recommended for commercial buyers, higher wind exposure, heavy equipment, farm use, and buyers who want a more rugged structure.
Utility Enclosure
Open carports cost less. Utility storage rooms, side panels, end panels, gables, roll-up doors, walk-in doors, windows, vents, and full enclosure packages increase price while adding more weather protection and security.
Certification
Certified 20x35x10 utility carports with engineered drawings cost more but may be required for permits, insurance, commercial use, coastal regions, hurricane zones, or heavy-snow areas.
Financing & RTO
Flexible financing and rent-to-own availability can help buyers get the utility metal carport they need now while spreading payments over time. Eligibility depends on structure type, location, and provider approval.
20x35x10 Utility Metal Carport Price
For the most accurate 20x35x10 utility metal carport price, request a live quote based on your zip code, roof style, certification, steel gauge, color selection, anchor type, panel package, utility enclosure size, door package, and installation surface. A quote helps lock in current promotions, delivery eligibility, financing options, and the best package for your use case.
20x35x10 Utility Metal Carport Financing & Rent-To-Own
Choose the payment path that helps you buy your utility metal carport faster
Traditional Financing
Credit Check Required
- Finance your 20x35x10 utility metal carport project
- Structured monthly payment options
- Terms based on lender approval
- Fast online application process
- Ownership from day one
Rent-To-Own (RTO)
No Credit Check
- No credit check required
- Simple approval process
- Low upfront commitment
- Convenient monthly payments
- Great for many eligible utility metal carports
How Delivery & Installation Works
A simple step-by-step process for getting your 20x35x10 utility metal carport installed
Place Your Order
Submit your request for the 20x35x10 utility carport configuration and confirm roof style, colors, panels, utility enclosure, doors, certification, anchors, and site details.
Step 1
Production Scheduling
Your order is scheduled according to manufacturing capacity, delivery routing, local availability, and the final utility carport specifications you approve.
Step 2
Prepare the Site
Make sure your installation area is level, accessible, clear of debris, and ready for the crew before delivery and installation.
Step 3
Installation Day
Our crew installs the metal carport, verifies layout details, anchors the structure, installs selected panels or utility enclosure components, and confirms the exterior finish details.
Step 4
20x35x10 Utility Metal Carport Reviews from Buyers
Customers across 48 states choose Steel And Stud for utility metal carports, RV covers, contractor storage shelters, farm equipment covers, vehicle parking canopies, utility storage buildings, and custom steel carport projects. See why buyers request quotes, compare upgrades, and install with confidence.
“We needed a utility metal carport for a work truck, trailer, and tools. The 20x35x10 size gave us covered parking plus the storage space we wanted, and the quote process was simple.”
“Bought a 20×35 utility carport for farm equipment, mowers, and supplies. The color matched our barn, the 10-foot legs gave us the clearance we needed, and the utility enclosure keeps tools protected.”
“We use our 20x35x10 carport for business supplies, service equipment, and covered parking. Steel and Stud made the doors, panels, and storage layout easy to understand before ordering.”
Compare 20x35x10 vs. Other Utility Metal Carport Sizes
Need a different metal carport size? Compare popular utility carport and storage carport sizes, then request a quote for the structure that fits your vehicles, equipment, tools, storage needs, lot, and budget. Every button below connects you with a pricing expert.
| Feature | 18×30 Utility Carport | 20×35×10 Utility Carport | 20×40 Utility Carport | 24×35 Utility Carport |
|---|---|---|---|---|
| Square Footage | 540 SF | 700 SF | 800 SF | 840 SF |
| Use Capacity | Vehicle plus compact storage | Covered parking + utility storage | Extended parking and storage depth | Wider utility storage and equipment cover |
| Access Potential | Very Good | Excellent | Excellent | Maximum |
| Recommended Roof | Vertical Recommended | Vertical Recommended | Vertical Recommended | Vertical Recommended |
| Best For | Compact utility storage | Utility carport buyers | RV, trailer, and tool storage | Wide equipment and storage needs |
| View 18×30 | You’re Here | View 20×40 | View 24×35 |
20x35x10 Utility Metal Carport FAQ: Cost, Permits, Sizes & Install
Get answers before ordering your 700 sq ft utility metal carport. Learn about 20×35 carport prices, roof styles, utility storage enclosures, 10′ leg height, certification, delivery, installation, financing, rent-to-own, color options, anchors, doors, and weather protection. Still have questions? Call our carport advisors at 1-877-275-7048.
Price range: $6,702.25 through $8,417.40
Utility Metal Carports – 20 x 35 x 10
700 sq ft — utility carport with storage and garage door
14 Gauge
Local Certification Available
Price range: $6,702.25 through $8,417.40
Standard Metal Carports – 24 x 40 x 10
960 sq ft — standard carport for vehicles, equipment or 2-car coverage
14 Gauge
Code Certified
24x40x10 Standard Metal Carport Specs, Dimensions & Custom Options
Buy a 24x40x10 standard metal carport for RV storage, commercial vehicle parking, work truck coverage, fleet protection, boat storage, trailer shelter, farm equipment cover, contractor equipment storage, dealership inventory, and everyday weather protection. This 960 sq ft steel carport delivers wide covered parking, 10′ leg clearance, high-value steel protection, fast quoting, free delivery, and professional installation options in the 48 continental US states.
| Carport Footprint | 24′ Wide × 40′ Longwith 10′ leg height for RVs, trucks, boats, trailers, tractors, UTVs, work vans, campers, farm equipment, and commercial vehicles |
|---|---|
| Total Covered Square Footage | 960 square feetof open-air covered parking, RV cover, equipment storage, and vehicle protection space |
| Product Type | Standard metal carport, 24×40 metal carport, RV carport, commercial vehicle shelter, equipment cover, farm carport, boat carport, truck canopyQuote Ready |
| Configuration Options | Open carport, partially enclosed sides, gable ends, side panels, end panels, utility storage enclosure, RV cover layout, equipment shelter, or fully enclosed conversion |
| Roof Styles | Regular Roof for budget pricing, A-Frame Horizontal / Boxed Eave for a clean peaked look, or Vertical Roof for the best rain and snow runoff |
| Recommended Roof | Vertical roof recommended for a 24×40 metal carport when you want premium drainage, improved curb appeal, stronger long-span performance, and long-term commercial durability |
| Frame Gauge | 14-gauge galvanized steel tubing standard, 12-gauge upgrade available for commercial carports, RV covers, high-wind zones, and heavy-duty equipment storage |
| Roof & Side Panels | 29-gauge sheet metal standard, 26-gauge upgrade available for hail-prone regions, coastal climates, high-use commercial properties, and higher impact resistance |
| Clearance & Access | 10′ leg height supports many RVs, pickups, work vans, boats, trailers, tractors, UTVs, mowers, campers, service vehicles, and equipment storage needs |
| Optional Openings | Framed openings, roll-up doors, walk-in doors, gables, side panels, end walls, utility enclosures, and custom enclosure packages available |
| Color Options | 17 colors for roof, trim, and panel upgrades: Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, White |
| Wind Rating | 115 MPH standard, certified upgrades available up to 170+ MPH for coastal, hurricane, open-lot, rural, and exposed commercial properties |
| Snow Load | 35 PSF standard, certified snow-load packages available up to 65+ PSF for northern and mountain-region installations |
| Certification | Permit-ready engineered and stamped drawings available for certified 24x40x10 metal carports that must meet local building codes |
| Anchoring | Concrete anchors, asphalt anchors, mobile home anchors, or auger anchors selected for your slab, driveway, gravel pad, commercial yard, or ground installation |
| Free Delivery | Included on qualifying ordersin the 48 continental US states |
| Installation | Professional installation available on eligible tubular-frame 24x40x10 standard metal carports after your site is level, accessible, and ready |
| Lead Time | 4 to 6 weeks from order confirmation in many service areas, with peak-season scheduling based on manufacturing and route availability |
| Installation Time | Often completed efficiently for standard open carports; side panels, enclosed upgrades, certified packages, and complex sites may require additional time |
| Warranty | 20-year rust-through warranty options plus 90-day workmanship guarantee on eligible structures |
Limited + Product Pledge
Paint Finish
Workmanship Guarantee
Workmanship Guarantee
What’s Included in a 24x40x10 Standard Metal Carport?
Every 24x40x10 standard metal carport package is built for buyers who want fast pricing, strong steel coverage, dependable weather protection, and a clean installation experience. Get the essentials for RV storage, commercial parking, equipment storage, farm use, boat cover, trailer shelter, and fleet protection without paying for unnecessary walls.
Free With Every 24x40x10 Metal Carport Order
Core steel carport components included for a quote-ready standard carport package
- 14-gauge galvanized steel frame24′ x 40′ standard footprint with 10′ leg height for RVs, trucks, trailers, boats, tractors, work vans, and equipment
- Choice of 3 roof stylesRegular, A-Frame Horizontal / Boxed Eave, or premium Vertical Roof for better water runoff and long-span performance
- 29-gauge sheet metal roofingDurable roof panels in your preferred color with optional side and end panel upgrades
- 17 color optionsChoose roof, trim, and panel colors to match your home, business, barn, farm, shop, rental property, or fleet yard
- Galvanized purlins and bracingSteel secondary framing designed to support long-term carport strength, stability, and daily use
- All hardware includedFasteners, screws, brackets, bolts, trim hardware, and installation-ready steel carport components
- Painted trim and ridge capsColor-matched trim gives your 24×40 carport a clean finished residential, farm, or commercial look
- Foundation-matched anchorsConcrete, asphalt, mobile home, or auger anchors matched to your install surface
- FREE delivery to 48 statesCurbside delivery to your prepared installation address on qualifying metal carport orders
- Professional installation availableExperienced crews install eligible tubular-frame carports after your site is level and accessible
- Warranty-backed steel coverageLong-term frame, panel, paint, and workmanship warranty options on eligible standard metal carport builds
+ Popular 24x40x10 Carport Upgrades & Add-Ons
Upgrade your standard carport for commercial performance, RV protection, code compliance, stronger storage, better weather coverage, and higher property value
- Vertical roof upgradePremium choice for rain, snow, leaf shedding, long 40′ roof drainage, and high-end commercial appearance
- 12-gauge steel frame upgradeHeavy-duty tubing for commercial buyers, RV owners, equipment yards, farms, exposed sites, and daily-use carports
- 26-gauge roof panel upgradeThicker metal panels for better durability in hail-prone, high-use, and premium storage environments
- Certified / engineered drawingsStamped plans for permits, financing requirements, code review, insurance, HOA approval, and commercial approvals
- Higher wind and snow ratingsUpgrade to certified wind and snow loads for storm-prone, coastal, open-lot, rural, and mountain regions
- Side panels and end panelsAdd partial enclosure to block sun, rain, wind, side-blown weather, and property visibility
- Gable ends and boxed trimImprove curb appeal while helping close off roof-end exposure on RV covers, truck shelters, and equipment carports
- Utility storage enclosureTurn part of the 24×40 carport into lockable storage for tools, parts, farm supplies, seasonal gear, or contractor equipment
- Insulation and condensation controlAdd vapor barriers or insulation packages where vehicles, tools, inventory, or machinery need drip control
- Wainscoting and two-tone panelsPremium appearance for homes, offices, farms, dealerships, rental properties, and storefront properties
- Lean-to extensionsAdd extra covered bays for trailers, side storage, tractors, outdoor work areas, or customer parking
- Custom height and width optionsNeed taller than 10′ or wider than 24′? Ask for a custom metal carport quote for RVs, fleets, or equipment
Customize & Buy Your 24x40x10 Standard Metal Carport
Build the 24×40 metal carport that fits your vehicles, RV, business, farm equipment, lot, climate, and budget. Choose roof style, steel gauge, color, certification, anchors, side panels, gable ends, utility enclosure, lean-to additions, and financing options before you request your best price.
10′ Leg Height
The 24x40x10 footprint gives you 960 sq ft of covered parking with 10′ legs for RVs, trucks, work vans, boats, trailers, tractors, campers, farm equipment, and service vehicles. It is a strong high-intent carport size for buyers who need more length, clearance, and weather protection than a compact residential carport.
24′ Wide Standard Span
The 24′ width supports side-by-side vehicle parking, RV cover layouts, truck and trailer storage, boat protection, farm equipment access, and business vehicle coverage while still fitting many residential and commercial lots.
40′ Long Coverage
The 40′ length gives valuable depth for RVs, boats, trailers, work trucks, equipment rows, loading areas, outdoor storage, or a vehicle plus extra covered space for supplies and gear.
3 Roof Styles
Regular Roof is the lowest-cost option. A-Frame Horizontal adds a classic peaked profile. Vertical Roof is the best-selling premium option for 24×40 carports because water, snow, leaves, and debris shed more efficiently across the long roof run.
Frame Gauge (14 or 12)
14-gauge galvanized steel tubing comes standard for dependable everyday coverage. Upgrade to 12-gauge steel when you need a heavy-duty metal carport for commercial use, higher wind exposure, equipment protection, RV storage, or longer service life.
Certified Carport Packages
Certified 24x40x10 metal carports can be engineered for local wind and snow requirements. Add stamped drawings when your county, lender, insurance company, HOA, or commercial property manager requires documentation.
Side Panel Options
Add one side, both sides, partial sides, or taller panels to reduce sun exposure, rain splash, wind, and visibility from neighboring properties. Side panels are one of the most requested upgrades for RV covers, commercial carports, and equipment shelters.
End Panel Options
Close the front, rear, or both ends with partial panels, full panels, or gable ends. End panels improve weather protection and help create a cleaner, more finished look for homes, farms, shops, and business properties.
Roll-Up Door Upgrades
If you want a lockable storage bay, add a roll-up door to an enclosed end section. This is ideal for tools, landscaping gear, seasonal inventory, farm supplies, contractor equipment, or service equipment that needs secure access.
Walk-In Door Access
Add a 36″ walk-in door to a utility enclosure or enclosed storage section for easy daily entry. Personnel doors are popular for businesses, farms, and homeowners who want secure storage inside the carport footprint.
Framed Openings
Request framed openings for future doors, windows, vents, electrical penetrations, or business-specific access points. Planning openings during your order can save time and cost later.
Open Drive-Through Layout
Keep the 24x40x10 carport open on all sides for fast drive-through access, trailer maneuvering, RV parking, multi-vehicle parking, and daily equipment movement across a busy commercial or farm property.
17 Standard Color Options
Choose from Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, and White. Color choices help match your home, storefront, shop, barn, business branding, or existing metal building.
Mix-and-Match Roof and Trim
Pick separate colors for the roof, trim, gables, and optional side panels. Popular high-conversion combinations include Black roof with White trim, Pewter Gray with Black trim, Galvalume with Charcoal trim, and Barn Red with White accents.
Wainscoting (Two-Tone Panels)
Add wainscoting to side panels or enclosed sections for a more premium property appearance. Two-tone panels are a smart upgrade for dealerships, service businesses, farms, RV covers, and residential curb appeal.
Galvalume Finish
Galvalume is a practical bare-metal finish for buyers who want durability, low maintenance, and a clean industrial look. It is commonly selected for farms, equipment yards, RV covers, and high-traffic commercial properties.
Painted Trim & Flashings
Color-matched trim, ridge caps, corners, and gable trim give your 24×40 carport a finished look. This is a small detail that makes the structure look more permanent, professional, and value-focused.
Business-Friendly Curb Appeal
For commercial carports, color matching helps create a consistent appearance across lots, buildings, fleet areas, storage areas, and customer-facing properties. Ask for a quote that matches your existing brand or building colors.
RV & Trailer Storage Layout
Use the 960 sq ft footprint for RVs, campers, cargo trailers, boats, work trucks, utility trailers, equipment, and extra storage while keeping the structure open and easy to access.
Utility Storage Bay
Enclose a portion of the 24×40 carport to create lockable storage for tools, pressure washers, farm supplies, seasonal inventory, automotive gear, or contractor equipment while keeping the remaining space open for parking.
Lean-To Additions
Add a lean-to on one or more sides for extra covered space at a lower cost than expanding the main structure. Lean-tos are popular for trailers, side parking, feed storage, outdoor work areas, and customer parking.
Condensation Control
Add a vapor barrier, insulation, or condensation-control package when vehicles, tools, inventory, RVs, or machinery need extra protection from roof drip and temperature swings.
Lighting & Electrical Prep
Plan the layout for lighting, outlets, security cameras, EV chargers, gate access, battery chargers, fans, or business equipment before installation. Your electrician can finish utilities after the structure is installed.
Concrete, Asphalt, Gravel, or Dirt
Install on a prepared concrete slab, asphalt lot, gravel pad, or level ground. Concrete is best for commercial vehicle parking, RV storage, and high-value equipment, while gravel and dirt can work for budget-friendly farm or residential coverage.
Wind & Snow Certification
Standard packages are built for everyday conditions, while certified packages can be upgraded for stronger wind and snow requirements. This matters for coastal states, open lots, rural properties, mountain regions, and commercial permits.
Permit-Ready Drawings
Engineered drawings and stamped plans are available when required by your city, county, HOA, lender, or insurance provider. Ask before ordering so your 24x40x10 carport is quoted correctly the first time.
Anchoring System
Concrete wedge anchors, asphalt anchors, mobile-home anchors, or auger anchors are selected based on the install surface. Correct anchoring is critical for carport stability, RV protection, and code compliance.
Security Add-Ons
Add motion lights, cameras, lockable storage rooms, walk-in doors, roll-up doors, and enclosed panels for higher-value vehicles, RVs, tools, trailers, and commercial inventory.
Fire & Access Planning
Commercial sites may need access spacing, emergency visibility, lighting, electrical planning, and fire-department requirements. Our quote team can help you prepare the right questions before you buy.
Solar & Roof-Top Planning
If you plan to add solar panels, lighting, cameras, or roof-mounted equipment, request the right engineered package up front so your 24×40 metal carport can be specified correctly.
24x40x10 Metal Carport Codes, Permits & Engineering
Order a certified 24x40x10 standard metal carport when your county, HOA, business property, lender, or insurance company requires permit-ready drawings. We can quote engineered packages for local wind load, snow load, anchoring, foundation surface, side panels, enclosure options, and site requirements so you can move from quote to installation with fewer delays.
Permit requirements vary by county and use case. Ask for a certified metal carport quote if you need stamped drawings, stronger wind or snow ratings, foundation guidance, commercial documentation, insurance documentation, or HOA approval support.
How to Maintain a 24x40x10 Standard Metal Carport
A steel carport is a low-maintenance investment, but quick seasonal care protects your vehicles, RV, equipment, roof panels, frame, anchors, trim, and paint finish for years of daily commercial, farm, or residential use.
Best Uses for a 24x40x10 Standard Metal Carport
A 960 sq ft standard steel carport gives you high-value covered space for RVs, vehicles, trailers, inventory, farm equipment, work areas, and long-term property protection
Fleet Vehicle Parking
Cover work trucks, vans, service vehicles, trailers, and small fleet assets with a high-clearance 24×40 standard metal carport
Contractor Equipment Cover
Protect trailers, compressors, lifts, mowers, ladders, supplies, tools, and jobsite equipment from sun and rain
RV & Camper Storage
Use the 24×40 carport as a practical RV cover, camper shelter, motorhome cover, or long trailer storage solution
Business Parking Canopy
Add professional covered parking for employees, customers, delivery vehicles, service trucks, VIP parking, or loading areas
Boat, Trailer & Equipment Cover
The 10′ legs provide practical clearance for many boats, cargo trailers, campers, tractors, utility trailers, and recreational vehicles
Outdoor Work Bay
Create shaded space for detailing, loading, staging, repairs, maintenance, equipment prep, and weather-protected work
Farm & Ranch Equipment
Shelter tractors, hay wagons, implements, feed, seed, side-by-sides, sprayers, and farm supplies under durable steel roofing
Multi-Use Property Coverage
Cover multiple vehicles, RVs, trailers, tools, equipment, and property assets with a clean standard carport design that adds daily convenience
3 Ways to Order Your 24x40x10 Standard Metal Carport
Get your best price on a 24x40x10 metal carport today. Request a free custom quote, plan your carport layout, or speak with a building expert about pricing, delivery, installation, certification, financing, rent-to-own, RV storage, side panels, enclosure options, and site requirements.
Request Free 24x40x10 Quote
Best price, custom layout, fast response
Tell us where the carport will be installed and how you plan to use it. Our team will price a 24x40x10 standard metal carport with the right roof style, gauge, anchors, panels, certification, and delivery options for your property.
- Free expert carport design consultation
- Commercial, farm, RV, boat, trailer, and residential quotes
- Certified and non-certified packages available
- Fast quote for high-intent buyers ready to order
Free quote. Flexible deposit options after approval.
Plan Your Carport Layout
Compare roof, panels, colors, and upgrades
Choose a standard carport layout, roof style, colors, gauge, side panels, gable ends, utility enclosure, doors, lean-to additions, and certification upgrades. Then contact us to verify your final price, local availability, delivery, and installation details.
- Visualize a custom carport package
- Compare roof, color, panel, and enclosure upgrades
- Plan RV, commercial, farm, trailer, or residential layouts
- Send your requirements for final quote review
Final pricing confirmed by your advisor.
Talk to a Carport Expert
Fastest answers, call or chat now
Speak directly with a metal carport advisor who can help with price, lead time, certified drawings, foundation questions, financing, rent-to-own eligibility, roof style, side panels, RV clearance, and the right upgrade package for your property.
- Instant answers from a building specialist
- Expert guidance on permits and certification
- Roof, gauge, color, panel, and enclosure recommendations
- Mon to Fri 8am to 6pm PST, Sat 9am to 3pm
Speak with an expert about your 24×40 carport.
How the Standard Metal Carport Quote Process Works
Price your 24x40x10 standard metal carport in minutes
1. Request Pricing
Start your quote so you can compare roof styles, panels, colors, certification, gauge, anchors, enclosure options, and upgrades.
2. Configure Your Carport
Set the 24×40 size, 10′ leg height, roof style, certification, colors, side panels, gables, and enclosure options.
3. Review Your Options
Compare RV storage, fleet parking, boat cover, equipment shelter, farm storage, and business carport layouts before approving your final package.
4. Complete Your Quote
Send your final requirements and we will confirm pricing, scheduling, delivery, installation, certification, and financing options.
Ready to price your custom 24x40x10 standard metal carport?
Tip:Keep this page open so you can return and submit your final carport requirements with ease.
How Much Does a 24x40x10 Standard Metal Carport Cost?
The cost of a 24x40x10 metal carport depends on roof style, steel gauge, certification, state, anchors, side panels, gable ends, color package, panel gauge, utility enclosure, lean-to additions, and any enclosed storage upgrades. Request a custom quote for current metal carport prices, RV carport prices, free delivery eligibility, installation availability, financing, and rent-to-own options.
Roof Style
Regular roof is the most affordable. A-Frame Horizontal adds a peaked look. Vertical roof costs more but is the top-value choice for 24×40 carports because it improves drainage and long-term performance across the longer roof span.
Your Location
State pricing, delivery routes, local labor, manufacturing coverage, permit requirements, property use, and certified load requirements can affect your final carport price.
Steel Gauge
14-gauge steel is the standard choice for many carports. 12-gauge steel is recommended for commercial buyers, RV storage, higher wind exposure, heavy equipment, and buyers who want a more rugged structure.
Panels & Enclosures
Open carports cost less. Side panels, end panels, gables, utility storage rooms, doors, lean-tos, and full enclosure packages increase price while adding more weather protection and security.
Certification
Certified 24x40x10 carports with engineered drawings cost more but may be required for permits, insurance, commercial use, coastal regions, hurricane zones, or heavy-snow areas.
Financing & RTO
Flexible financing and rent-to-own availability can help buyers get the steel coverage they need now while spreading payments over time. Eligibility depends on structure type, location, and provider approval.
24x40x10 Standard Metal Carport Price
For the most accurate 24x40x10 metal carport price, request a live quote based on your zip code, roof style, certification, steel gauge, color selection, anchor type, panel package, enclosure needs, and installation surface. A quote helps lock in current promotions, delivery eligibility, financing options, and the best package for your use case.
24x40x10 Metal Carport Financing & Rent-To-Own
Choose the payment path that helps you buy your standard metal carport faster
Traditional Financing
Credit Check Required
- Finance your 24x40x10 metal carport project
- Structured monthly payment options
- Terms based on lender approval
- Fast online application process
- Ownership from day one
Rent-To-Own (RTO)
No Credit Check
- No credit check required
- Simple approval process
- Low upfront commitment
- Convenient monthly payments
- Great for many standard metal carports
How Delivery & Installation Works
A simple step-by-step process for getting your 24x40x10 metal carport installed
Place Your Order
Submit your request for the 24x40x10 standard carport configuration and confirm roof style, colors, panels, certification, anchors, enclosure options, and site details.
Step 1
Production Scheduling
Your order is scheduled according to manufacturing capacity, delivery routing, local availability, and the final carport specifications you approve.
Step 2
Prepare the Site
Make sure your installation area is level, accessible, clear of debris, and ready for the crew before delivery and installation.
Step 3
Installation Day
Our crew installs the metal carport, verifies layout details, anchors the structure, and confirms the exterior finish details.
Step 4
24x40x10 Metal Carport Reviews from Buyers
Customers across 48 states choose Steel And Stud for standard metal carports, RV covers, commercial vehicle canopies, farm equipment shelters, boat carports, trailer covers, and custom steel carport projects. See why buyers request quotes, compare upgrades, and install with confidence.
“We needed a 24x40x10 metal carport for an RV, work truck, and trailer. The size gave us the length and clearance we wanted, and the quote process was simple from start to finish.”
“Bought a 24×40 metal carport for farm equipment and trailers. The roof color matched our barn, the coverage is excellent, and the 10-foot legs made it easy to park equipment underneath.”
“We started with an open 24x40x10 carport for our boat and camper, then added side panels for more protection. Steel and Stud made the upgrades easy and the structure feels solid.”
Compare 24x40x10 vs. Other Metal Carport Sizes
Need a different metal carport size? Compare popular standard, RV, and commercial carport sizes, then request a quote for the structure that fits your vehicles, equipment, lot, and budget. Every button below connects you with a pricing expert.
| Feature | 20×40 Carport | 24×40×10 Carport | 24×45 Carport | 30×40 Carport |
|---|---|---|---|---|
| Square Footage | 800 SF | 960 SF | 1,080 SF | 1,200 SF |
| Use Capacity | RV or long vehicle cover | RV + truck + trailer + equipment | Extra depth for RV storage | Wider fleet and equipment coverage |
| Access Potential | Very Good | Excellent | Excellent | Maximum |
| Recommended Roof | Vertical Recommended | Vertical Recommended | Vertical Recommended | Vertical Recommended |
| Best For | Budget RV cover buyers | Standard carport buyers | Long RV and trailer storage | Commercial fleet coverage |
| View 20×40 | You’re Here | View 24×45 | View 30×40 |
24x40x10 Standard Metal Carport FAQ: Cost, Permits, Sizes & Install
Get answers before ordering your 960 sq ft standard metal carport. Learn about 24×40 carport prices, roof styles, 10′ leg height, certification, delivery, installation, financing, rent-to-own, color options, anchors, RV storage, side panels, and weather protection. Still have questions? Call our carport advisors at 1-877-275-7048.
Price range: $4,690.00 through $9,780.00
Standard Metal Carports – 24 x 40 x 10
960 sq ft — standard carport for vehicles, equipment or 2-car coverage
14 Gauge
Code Certified
Price range: $4,690.00 through $9,780.00
Standard Metal Carports – 24 x 25 x 7 (Vertical Roof)
600 sq ft — standard carport for vehicles or coverage
14 Gauge
Code Certified
24x25x7 Vertical Roof Standard Metal Carport Specs, Dimensions & Custom Options
Buy a 24x25x7 standard metal carport with vertical roof for two-car parking, compact commercial vehicle cover, employee parking, contractor equipment storage, trailer shelter, small business inventory protection, farm utility use, driveway coverage, and everyday weather protection. This 600 sq ft steel carport delivers premium vertical roof drainage, wider parking clearance, 7′ leg height, fast custom quotes, free delivery, and professional installation options in the 48 continental US states.
| Carport Footprint | 24′ Wide × 25′ Longwith 7′ leg height for cars, compact trucks, small trailers, lawn equipment, utility storage, and covered parking |
|---|---|
| Total Covered Square Footage | 600 square feetof steel carport coverage for two-car parking, business-use storage, equipment protection, and driveway shelter |
| Product Type | Standard metal carport, 24×25 vertical roof carport, steel carport, commercial parking canopy, vehicle shelter, equipment cover, driveway carport, utility carportQuote Ready |
| Configuration Options | Open carport, partially enclosed carport, side panel package, gable end package, end panel package, utility enclosure, storage add-on, or custom compact commercial carport package |
| Roof Style | Vertical Roof included for better rain, snow, leaf, and debris runoff compared to regular or A-frame horizontal roof panel layouts |
| Recommended Roof | Vertical roof is the premium choice for a 24×25 metal carport when you want stronger drainage, clean curb appeal, and long-term weather protection |
| Frame Gauge | 14-gauge galvanized steel tubing standard, 12-gauge upgrade available for commercial carports, high-wind zones, heavy-duty equipment cover, and long-term business use |
| Roof & Side Panels | 29-gauge sheet metal standard, 26-gauge upgrade available for hail-prone regions, coastal climates, and buyers who want higher impact resistance |
| Clearance & Access | 7′ leg height supports many cars, compact SUVs, small pickups, utility trailers, golf carts, ATVs, mowers, motorcycles, and compact service equipment |
| Optional Openings | Side panels, end panels, gables, framed openings, walk-in doors, roll-up doors for enclosed sections, and custom utility storage packages available |
| Color Options | 17 colors for roof, trim, and panel upgrades: Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, White |
| Wind Rating | 115 MPH standard, certified upgrades available up to 170+ MPH for coastal, hurricane, open-lot, farm, and exposed commercial properties |
| Snow Load | 35 PSF standard, certified snow-load packages available up to 65+ PSF for northern and mountain-region installations |
| Certification | Permit-ready engineered and stamped drawings available for certified 24x25x7 vertical roof metal carports that must meet local building codes |
| Anchoring | Concrete anchors, asphalt anchors, mobile home anchors, or auger anchors selected for your slab, driveway, gravel pad, commercial lot, or ground installation |
| Free Delivery | Included on qualifying ordersin the 48 continental US states |
| Installation | Professional installation available on tubular-frame 24x25x7 standard metal carports after your site is level, accessible, and ready |
| Lead Time | 4 to 6 weeks from order confirmation in many service areas, with peak-season scheduling based on manufacturing and route availability |
| Installation Time | Often completed in 1 day for standard open carports; side panels, certified packages, enclosure upgrades, and complex sites may require additional time |
| Warranty | 20-year rust-through warranty options plus 90-day workmanship guarantee on eligible structures |
Limited + Product Pledge
Paint Finish
Workmanship Guarantee
Workmanship Guarantee
What’s Included in a 24x25x7 Vertical Roof Standard Metal Carport?
Every 24x25x7 vertical roof metal carport package is built for buyers who want fast pricing, strong steel coverage, dependable weather protection, and a clean installation experience. Get the essentials for two-car parking, compact commercial cover, contractor equipment, small trailer storage, farm utility use, driveway protection, and business-use storage without paying for unnecessary walls.
Free With Every 24x25x7 Metal Carport Order
Core steel carport components included for a quote-ready standard vertical roof package
- 14-gauge galvanized steel frame24′ x 25′ standard carport footprint with 7′ leg height for cars, compact trucks, trailers, tools, and small equipment
- Vertical roof style includedPremium roof layout for better rain runoff, snow shedding, debris control, and long-term carport performance
- 29-gauge sheet metal roofingDurable roof panels in your preferred color with optional side and end panel upgrades
- 17 color optionsChoose roof, trim, and panel colors to match your home, business, shop, farm, driveway, or existing metal building
- Galvanized purlins and bracingSteel secondary framing designed to support long-term carport strength and daily use
- All hardware includedFasteners, screws, brackets, bolts, trim hardware, and installation-ready components
- Painted trim and ridge capsColor-matched trim gives your 24×25 carport a clean finished commercial look
- Foundation-matched anchorsConcrete, asphalt, mobile home, or auger anchors matched to your install surface
- FREE delivery to 48 statesCurbside delivery to your prepared installation address on qualifying metal carport orders
- Professional installation availableExperienced crews install eligible tubular-frame carports after your site is level and accessible
- Warranty-backed steel coverageLong-term frame, panel, paint, and workmanship warranty options on eligible builds
+ Popular 24x25x7 Carport Upgrades & Add-Ons
Upgrade your standard metal carport for better commercial performance, weather protection, security, code compliance, and property value
- 12-gauge steel frame upgradeHeavy-duty tubing for commercial buyers, equipment storage, open lots, farms, and exposed sites
- 26-gauge roof panel upgradeThicker metal panels for better durability in hail-prone and high-use environments
- Certified / engineered drawingsStamped plans for permits, financing requirements, code review, insurance, and commercial approvals
- Higher wind and snow ratingsUpgrade to certified wind and snow loads for storm-prone, coastal, open-lot, and mountain regions
- Side panels and end panelsAdd partial enclosure to block sun, rain, wind, and side-blown weather
- Gable ends and boxed trimImprove curb appeal while helping close off roof-end exposure
- Utility storage enclosureTurn part of the carport into lockable storage for tools, supplies, mower gear, and seasonal items
- Roll-up or walk-in doorsAdd door access to enclosed sections for secure tools, equipment, and compact business storage
- Condensation controlAdd vapor barrier options where drip control matters for vehicles, equipment, and stored goods
- Wainscoting and two-tone panelsPremium appearance for homes, offices, shops, farms, and customer-facing properties
- Lean-to extensionsAdd extra side coverage for motorcycles, carts, tools, small trailers, or customer parking
- Custom height and width optionsNeed taller than 7′ or wider than 24′? Ask for a custom commercial metal carport quote
Customize & Buy Your 24x25x7 Vertical Roof Standard Metal Carport
Build the 24×25 vertical roof carport that fits your vehicles, business, driveway, lot, climate, and budget. Choose steel gauge, color, certification, anchors, side panels, gable ends, utility enclosure, door options, and financing before you request your best price.
7′ Leg Height
The 24x25x7 footprint gives you 600 sq ft of covered parking with 7′ legs for cars, compact SUVs, small pickups, utility trailers, motorcycles, golf carts, ATVs, mowers, and compact equipment. It is a smart standard carport size for buyers who need wider two-car coverage with premium vertical roof performance.
24′ Wide Two-Car Layout
The 24′ wide metal carport layout is ideal for two-car parking with extra door clearance, driveway coverage, small business parking, farm utility cover, side-lot storage, customer parking, and compact equipment protection.
25′ Extended Length
The 25′ length gives extra coverage beyond a basic carport, making it practical for longer vehicles, small trucks, trailers, tool carts, mower storage, or added front-and-rear weather protection.
Vertical Roof Included
Vertical roof panels run from peak to eave, helping rain, snow, leaves, and debris shed more efficiently. This is the best-value roof style for buyers who want better drainage, clean appearance, and long-term performance.
Frame Gauge (14 or 12)
14-gauge galvanized steel tubing comes standard for dependable everyday coverage. Upgrade to 12-gauge steel when you need a heavy-duty metal carport for commercial use, higher wind exposure, equipment protection, or longer service life.
Certified Carport Packages
Certified 24x25x7 vertical roof metal carports can be engineered for local wind and snow requirements. Add stamped drawings when your county, lender, insurance company, HOA, or commercial property manager requires documentation.
Side Panel Options
Add one side, both sides, partial sides, or taller panels to reduce sun exposure, rain splash, wind, and visibility from neighboring properties. Side panels are a high-value upgrade for compact commercial carports, two-car covers, and driveway structures.
End Panel Options
Close the front, rear, or both ends with partial panels, full panels, or gable ends. End panels improve weather protection and help create a cleaner, more finished look for the property.
Roll-Up Door Upgrades
If you want a lockable storage bay, add a roll-up door to an enclosed section. This is ideal for tools, landscaping gear, motorcycles, mower storage, farm supplies, or service equipment that needs secure access.
Walk-In Door Access
Add a 36″ walk-in door to a utility enclosure or enclosed storage section for easy daily entry. Personnel doors are popular for businesses, farms, and homeowners who want secure storage inside the carport footprint.
Framed Openings
Request framed openings for future doors, windows, vents, electrical penetrations, or business-specific access points. Planning openings during your order can save time and cost later.
Open Drive-In Layout
Keep the 24x25x7 carport open on all sides for fast vehicle access, daily parking, compact trailer maneuvering, loading, and quick equipment movement across a busy home, farm, or commercial property.
17 Standard Color Options
Choose from Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, and White. Color choices help match your home, storefront, shop, barn, fleet yard, or business branding.
Mix-and-Match Roof and Trim
Pick separate colors for the roof, trim, gables, and optional side panels. Popular high-conversion combinations include Black roof with White trim, Pewter Gray with Black trim, Barn Red with White accents, and Galvalume with Black trim.
Wainscoting (Two-Tone Panels)
Add wainscoting to side panels or enclosed sections for a more premium property appearance. Two-tone panels are a smart upgrade for businesses, farms, shops, and residential curb appeal.
Galvalume Finish
Galvalume is a practical bare-metal finish for buyers who want durability, low maintenance, and a clean industrial look. It is commonly selected for equipment yards, utility covers, farms, and high-traffic commercial properties.
Painted Trim & Flashings
Color-matched trim, ridge caps, corners, and gable trim give your 24×25 carport a finished look. This small detail makes the structure look more permanent and professional.
Business-Friendly Curb Appeal
For commercial carports, color matching helps create a consistent appearance across lots, buildings, customer parking, employee parking, and service areas. Ask for a quote that matches your existing brand or building colors.
Utility Storage Bay
Enclose a portion of the 24×25 carport to create lockable storage for tools, pressure washers, mowers, farm supplies, seasonal inventory, or automotive gear while keeping the remaining space open for parking.
Lean-To Additions
Add a lean-to on one or more sides for extra covered space at a lower cost than expanding the main structure. Lean-tos are popular for motorcycles, carts, side storage, compact equipment, and outdoor work areas.
Condensation Control
Add a vapor barrier or condensation-control package when vehicles, tools, inventory, or machinery need extra protection from roof drip and temperature swings.
Lighting & Electrical Prep
Plan the layout for lighting, outlets, security cameras, EV charging, gate access, or business equipment before installation. Your electrician can finish utilities after the structure is installed.
Concrete, Asphalt, Gravel, or Dirt
Install on a prepared concrete slab, asphalt lot, gravel pad, or level ground. Concrete is best for daily vehicle parking and high-value equipment, while gravel and dirt can work for budget-friendly farm or residential coverage.
Future Enclosure Planning
Start with an open standard carport now and add panels, doors, or enclosed storage later. Planning future upgrades during the quote process helps you avoid layout mistakes and wasted investment.
Wind & Snow Certification
Standard packages are built for everyday conditions, while certified packages can be upgraded for stronger wind and snow requirements. This matters for coastal states, open lots, mountain regions, and commercial permits.
Permit-Ready Drawings
Engineered drawings and stamped plans are available when required by your city, county, HOA, lender, or insurance provider. Ask before ordering so your 24x25x7 vertical roof carport is quoted correctly the first time.
Anchoring System
Concrete wedge anchors, asphalt anchors, mobile-home anchors, or auger anchors are selected based on the install surface. Correct anchoring is critical for carport stability and code compliance.
Security Add-Ons
Add motion lights, cameras, lockable storage rooms, walk-in doors, roll-up doors, and enclosed panels for higher-value vehicles, tools, trailers, and compact commercial inventory.
Fire & Access Planning
Commercial sites may need access spacing, emergency visibility, lighting, electrical planning, and fire-department requirements. Our quote team can help you prepare the right questions before you buy.
Solar & Roof-Top Planning
If you plan to add solar panels, lighting, cameras, or roof-mounted equipment, request the right engineered package up front so your 24×25 vertical roof carport can be specified correctly.
24x25x7 Vertical Roof Metal Carport Codes, Permits & Engineering
Order a certified 24x25x7 standard metal carport when your county, HOA, business property, lender, or insurance company requires permit-ready drawings. We can quote engineered packages for local wind load, snow load, anchoring, and site requirements so you can move from quote to installation with fewer delays.
Permit requirements vary by county and use case. Ask for a certified metal carport quote if you need stamped drawings, stronger wind or snow ratings, foundation guidance, commercial documentation, or HOA approval support.
How to Maintain a 24x25x7 Vertical Roof Standard Metal Carport
A steel carport is a low-maintenance investment, but quick seasonal care protects your vehicles, equipment, roof panels, frame, anchors, trim, and paint finish for years of daily commercial or residential use.
Best Uses for a 24x25x7 Vertical Roof Standard Metal Carport
A 600 sq ft vertical roof steel carport gives you high-value covered space for vehicles, compact equipment, trailers, tools, work areas, and property protection
Two-Car Parking Cover
Cover cars, compact SUVs, small pickups, and daily drivers with a durable 24×25 vertical roof steel carport
Contractor Equipment Cover
Protect tools, small trailers, compressors, mowers, carts, and service equipment from sun and rain
Compact Business Storage
Use the 24×25 carport for covered equipment, customer parking, display products, jobsite staging, or business overflow
Employee Parking Canopy
Add professional covered parking for staff, customers, delivery vehicles, or reserved business parking spaces
Trailer & Small Boat Cover
The 25′ length provides practical coverage for many small trailers, compact boats, motorcycles, carts, and recreational equipment
Outdoor Work Bay
Create shaded space for detailing, loading, staging, repairs, maintenance, and weather-protected work
Farm & Ranch Utility Cover
Shelter feed, mowers, ATVs, garden equipment, side-by-sides, compact tools, and farm supplies under durable steel roofing
Residential Driveway Cover
Add a clean vertical roof carport for vehicle protection, driveway shade, seasonal storage, and property-value convenience
3 Ways to Order Your 24x25x7 Vertical Roof Standard Metal Carport
Get your best price on a 24x25x7 standard metal carport today. Request a free custom quote, configure your carport online, or speak with a building expert about pricing, delivery, installation, certification, financing, rent-to-own, and site requirements.
Request Free 24x25x7 Quote
Best price, custom layout, fast response
Tell us where the carport will be installed and how you plan to use it. Our team will price a 24x25x7 vertical roof standard metal carport with the right gauge, anchors, panels, certification, color package, and delivery options for your property.
- Free expert carport design consultation
- Commercial, farm, utility, vehicle, and residential quotes
- Certified and non-certified packages available
- Fast quote for high-intent buyers ready to order
Free quote. Flexible deposit options after approval.
Build Your Carport Quote
Design the structure and compare options
Choose a standard vertical roof carport layout, colors, gauge, side panels, gable ends, doors, and enclosure upgrades. Then contact us to verify your final price, local availability, and installation details.
- Visual carport customization
- Compare color, panel, gauge, and enclosure upgrades
- Plan commercial or residential carport layouts
- Send your configuration for final quote review
Final pricing confirmed by your advisor.
Talk to a Carport Expert
Fastest answers, call or chat now
Speak directly with a metal carport advisor who can help with price, lead time, certified drawings, foundation questions, financing, rent-to-own eligibility, panel options, color choices, and the right upgrade package for your property.
- Instant answers over the phone
- Expert guidance on permits and certification
- Gauge, color, anchor, and panel recommendations
- Mon to Fri 8am to 6pm PST, Sat 9am to 3pm
Toll-free. Speak with an expert now.
How the Standard Metal Carport Quote Process Works
Design your 24x25x7 vertical roof standard metal carport in minutes
1. Start Your Quote
Open the quote page so you can compare colors, panels, anchors, certification, and upgrades.
2. Configure Your Carport
Set the 24×25 size, 7′ leg height, vertical roof style, certification, colors, side panels, and enclosure options.
3. Share Your Design
Send your configuration details, preferred colors, usage, and installation zip code before requesting final pricing.
4. Complete Your Quote
We will confirm pricing, scheduling, delivery, installation, certification, and site preparation details.
Ready to price your custom 24x25x7 vertical roof standard metal carport?
Tip:Keep this page open so you can return and submit your final configuration with ease.
How Much Does a 24x25x7 Vertical Roof Standard Metal Carport Cost?
The cost of a 24x25x7 standard metal carport depends on steel gauge, certification, state, anchors, side panels, gable ends, color package, door options, and any enclosed storage upgrades. Request a custom quote for current vertical roof metal carport prices, free delivery eligibility, installation availability, financing, and rent-to-own options.
Vertical Roof Value
Vertical roof is the premium roof option for a 24×25 carport because it improves drainage, helps shed debris, and gives the structure a cleaner long-term appearance.
Your Location
State pricing, delivery routes, local labor, manufacturing coverage, permit requirements, and certified load requirements can affect your final carport price.
Steel Gauge
14-gauge steel is the standard choice for many carports. 12-gauge steel is recommended for commercial buyers, higher wind exposure, heavy equipment, and buyers who want a more rugged structure.
Panels & Enclosures
Open carports cost less. Side panels, end panels, gables, utility storage rooms, doors, and full enclosure packages increase price while adding more weather protection and security.
Certification
Certified 24x25x7 carports with engineered drawings cost more but may be required for permits, insurance, commercial use, coastal regions, hurricane zones, or heavy-snow areas.
Financing & RTO
Flexible financing and rent-to-own availability can help buyers get the steel coverage they need now while spreading payments over time. Eligibility depends on structure type, location, and provider approval.
24x25x7 Vertical Roof Standard Metal Carport Price
For the most accurate 24x25x7 metal carport price, request a live quote based on your zip code, vertical roof package, certification, steel gauge, color selection, anchor type, panel package, and installation surface. A quote helps lock in current promotions, delivery eligibility, financing options, and the best package for your use case.
24x25x7 Standard Metal Carport Financing & Rent-To-Own
Choose the payment path that helps you buy your vertical roof standard metal carport faster
Traditional Financing
Credit Check Required
- Finance your 24x25x7 metal carport project
- Structured monthly payment options
- Terms based on lender approval
- Fast online application process
- Ownership from day one
Rent-To-Own (RTO)
No Credit Check
- No credit check required
- Simple approval process
- Low upfront commitment
- Convenient monthly payments
- Great for many standard metal carports
How Delivery & Installation Works
A simple step-by-step process for getting your 24x25x7 vertical roof metal carport installed
Place Your Order
Submit your request for the 24x25x7 standard vertical roof configuration and confirm colors, panels, certification, anchors, and site details.
Step 1
Production Scheduling
Your order is scheduled according to manufacturing capacity, delivery routing, local availability, and the final carport specifications you approve.
Step 2
Prepare the Site
Make sure your installation area is level, accessible, clear of debris, and ready for the crew before delivery and installation.
Step 3
Installation Day
Our crew installs the metal carport, verifies layout details, anchors the structure, and confirms the exterior finish details.
Step 4
24x25x7 Vertical Roof Metal Carport Reviews from Buyers
Customers across 48 states choose Steel And Stud for standard metal carports, vertical roof carports, commercial vehicle canopies, farm equipment shelters, driveway covers, and custom steel carport projects. See why buyers request quotes, compare upgrades, and install with confidence.
“We needed a standard metal carport for two company vehicles and small trailer storage. The 24x25x7 size gave us extra width, and the vertical roof handles rain runoff much better at our service yard.”
“Bought a 24×25 metal carport for driveway parking and mower storage. The quote was clear, the roof color matched our shop, and the vertical roof was worth the upgrade.”
“We started with an open 24x25x7 carport for service vehicles, then added side panels for more protection. Steel and Stud made the options simple and the structure feels solid.”
Compare 24x25x7 vs. Other Standard Metal Carport Sizes
Need a different metal carport size? Compare popular standard and commercial carport sizes, then request a quote for the structure that fits your vehicles, equipment, lot, and budget. Every button below connects you with a pricing expert.
| Feature | 20×25 Carport | 24×25×7 Carport | 24×30 Carport | 30×25 Carport |
|---|---|---|---|---|
| Square Footage | 500 SF | 600 SF | 720 SF | 750 SF |
| Use Capacity | Two-car standard cover | Wider two-car + trailer or equipment cover | Extra storage depth | Three-car or commercial cover |
| Access Potential | Excellent | Excellent | Excellent | Maximum |
| Recommended Roof | A-Frame or Vertical | Vertical Included | Vertical Recommended | Vertical Recommended |
| Best For | Residential and business parking | Standard vertical roof carport buyers | Longer equipment storage | Fleet and wide coverage needs |
| View 20×25 | You’re Here | View 24×30 | View 30×25 |
24x25x7 Vertical Roof Standard Metal Carport FAQ: Cost, Permits, Sizes & Install
Get answers before ordering your 600 sq ft vertical roof standard metal carport. Learn about 24×25 carport prices, 7′ leg height, certification, delivery, installation, financing, rent-to-own, color options, anchors, panels, and weather protection. Still have questions? Call our carport advisors at 1-877-275-7048.
Price range: $2,275.00 through $4,810.00
Standard Metal Carports – 24 x 25 x 7 (Vertical Roof)
600 sq ft — standard carport for vehicles or coverage
14 Gauge
Code Certified
Price range: $2,275.00 through $4,810.00
Standard Metal Carports – 24 x 20 x 6 (Regular Roof)
480 sq ft — standard carport for vehicles or coverage
14 Gauge
Code Certified
24x20x6 Standard Metal Carport Specs, Dimensions & Regular Roof Options
Buy a 24x20x6 standard metal carport with regular roof for affordable two-car parking, wide vehicle cover, small business equipment storage, ATV shelter, motorcycle cover, mower storage, trailer protection, farm utility storage, and everyday weather protection. This 480 sq ft steel carport delivers budget-friendly coverage, extra 24′ width, 6′ leg clearance, fast quoting, free delivery, and professional installation options in the 48 continental US states.
| Carport Footprint | 24′ Wide × 20′ Longwith 6′ leg height for two-car parking, compact equipment, motorcycles, ATVs, mowers, carts, and utility storage |
|---|---|
| Total Covered Square Footage | 480 square feetof open-air covered parking and storage space |
| Product Type | Standard metal carport, regular roof metal carport, wide two-car carport, steel carport, vehicle shelter, equipment cover, utility carportQuote Ready |
| Configuration Options | Open carport, partially enclosed sides, gable ends, side panels, end panels, utility enclosure, equipment cover, or custom standard carport package |
| Roof Style | Regular Roofincluded for the most affordable metal carport price, rounded roof edges, simple coverage, and budget-friendly vehicle protection |
| Available Roof Upgrades | A-Frame Horizontal / Boxed Eave for a clean peaked look or Vertical Roof for stronger rain, snow, and debris runoff when you want premium performance |
| Frame Gauge | 14-gauge galvanized steel tubing standard, 12-gauge upgrade available for higher durability, exposed properties, commercial storage, and heavy-duty use |
| Roof & Side Panels | 29-gauge sheet metal standard, 26-gauge upgrade available for hail-prone regions, high-use sites, and buyers who want stronger panel protection |
| Clearance & Access | 6′ leg height works for many compact cars, sedans, motorcycles, ATVs, lawn mowers, carts, and storage items; always measure your vehicle before ordering |
| Optional Openings | Side panels, end panels, gable ends, framed openings, roll-up doors, walk-in doors, and utility enclosure packages available on upgraded configurations |
| Color Options | 17 colors for roof, trim, and panel upgrades: Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, White |
| Wind Rating | 115 MPH standard, certified upgrades available up to 170+ MPH for coastal, hurricane, open-lot, rural, and exposed installation properties |
| Snow Load | 35 PSF standard, certified snow-load packages available up to 65+ PSF for northern and mountain-region installations |
| Certification | Permit-ready engineered and stamped drawings available for certified 24x20x6 metal carports that must meet local building codes |
| Anchoring | Concrete anchors, asphalt anchors, mobile home anchors, or auger anchors selected for your slab, driveway, gravel pad, or ground installation |
| Free Delivery | Included on qualifying ordersin the 48 continental US states |
| Installation | Professional installation available on eligible tubular-frame 24x20x6 standard metal carports after your site is level, accessible, and ready |
| Lead Time | 4 to 6 weeks from order confirmation in many service areas, with peak-season scheduling based on manufacturing and route availability |
| Installation Time | Often completed efficiently for standard open carports; side panels, certified packages, utility enclosures, and complex sites may require additional time |
| Warranty | 20-year rust-through warranty options plus 90-day workmanship guarantee on eligible structures |
Limited + Product Pledge
Paint Finish
Workmanship Guarantee
Workmanship Guarantee
What’s Included in a 24x20x6 Standard Metal Carport?
Every 24x20x6 regular roof metal carport package is built for buyers who want low-cost pricing, dependable steel coverage, fast installation, and practical weather protection. Get an affordable standard metal carport for cars, motorcycles, ATVs, lawn equipment, tools, small business storage, farm supplies, rental properties, fleet overflow parking, and daily property protection.
Free With Every 24x20x6 Regular Roof Metal Carport Order
Core steel carport components included for a quote-ready standard package
- 14-gauge galvanized steel frame24′ x 20′ standard carport footprint with 6′ leg height for cars, motorcycles, ATVs, mowers, compact equipment, and small storage
- Regular roof style includedMost affordable roof option for buyers who want low-cost metal carport pricing and simple vehicle protection
- 29-gauge sheet metal roofingDurable roof panels in your preferred color with optional side and end panel upgrades
- 17 color optionsChoose roof, trim, and panel colors to match your home, business, farm, driveway, parking area, or storage lot
- Galvanized purlins and bracingSteel secondary framing designed to support long-term carport strength and everyday coverage
- All hardware includedFasteners, screws, brackets, bolts, trim hardware, and installation-ready components
- Painted trim and ridge capsColor-matched trim gives your 24×20 carport a clean finished look
- Foundation-matched anchorsConcrete, asphalt, mobile home, or auger anchors matched to your install surface
- FREE delivery to 48 statesCurbside delivery to your prepared installation address on qualifying metal carport orders
- Professional installation availableExperienced crews install eligible tubular-frame carports after your site is level and accessible
- Warranty-backed steel coverageLong-term frame, panel, paint, and workmanship warranty options on eligible builds
+ Popular 24x20x6 Carport Upgrades & Add-Ons
Upgrade your standard metal carport for stronger protection, better curb appeal, commercial use, code compliance, and higher resale value
- A-frame roof upgradeUpgrade from regular roof to boxed eave styling for a sharper peaked appearance and better property curb appeal
- Vertical roof upgradePremium choice for stronger rain runoff, snow shedding, leaf removal, and long-term weather performance
- 12-gauge steel frame upgradeHeavy-duty tubing for commercial buyers, exposed sites, equipment storage, and stronger everyday coverage
- 26-gauge roof panel upgradeThicker metal panels for better durability in hail-prone and high-use storage environments
- Certified / engineered drawingsStamped plans for permits, financing requirements, code review, insurance, and local approvals
- Higher wind and snow ratingsUpgrade to certified wind and snow loads for storm-prone, coastal, open-lot, and mountain regions
- Side panels and end panelsAdd partial enclosure to block sun, rain, wind, and side-blown weather
- Gable ends and boxed trimImprove curb appeal while helping close off roof-end exposure
- Utility storage enclosureTurn part of the carport into lockable storage for tools, supplies, mowers, and seasonal gear
- Wainscoting and two-tone panelsPremium appearance for homes, small businesses, offices, farms, and customer-facing properties
- Custom height and width optionsNeed taller than 6′ or wider than 24′? Ask for a custom metal carport quote
- Concrete-ready installationPair your 24×20 carport with a prepared slab for cleaner parking, better drainage, and long-term use
Customize & Buy Your 24x20x6 Regular Roof Metal Carport
Build the 24×20 metal carport that fits your vehicles, equipment, property, climate, and budget. Choose steel gauge, color, certification, anchors, side panels, gable ends, utility enclosure, roof upgrades, and financing options before you request your best price.
6′ Leg Height
The 24x20x6 footprint gives you 480 sq ft of covered parking with 6′ legs for compact cars, sedans, motorcycles, ATVs, lawn equipment, carts, mowers, tools, and utility storage. It is a strong budget carport size for buyers who want affordable steel coverage with extra parking width.
Standard 24′ Wide Layout
The 24′ width is ideal for wider two-car parking, driveway coverage, side-yard storage, compact equipment cover, small business utility storage, and residential vehicle protection where you want more door-opening room than a 20′ wide carport.
Regular Roof Design
Regular Roof is the lowest-cost metal carport option and is popular for buyers who want fast pricing, simple coverage, rounded roof edges, and dependable everyday shade and weather protection.
Frame Gauge (14 or 12)
14-gauge galvanized steel tubing comes standard for dependable everyday coverage. Upgrade to 12-gauge steel when you need a heavy-duty carport for exposed lots, commercial use, equipment protection, or longer service life.
Sheet Metal Gauge (29 or 26)
29-gauge roofing is standard on most carport orders. Upgrade to 26-gauge roof panels for hail-prone regions, high-value vehicles, daily equipment storage, and customers who want a stronger premium build.
Certified Carport Packages
Certified 24x20x6 metal carports can be engineered for local wind and snow requirements. Add stamped drawings when your county, lender, insurance company, HOA, or property manager requires documentation.
Side Panel Options
Add one side, both sides, partial sides, or taller panels to reduce sun exposure, rain splash, wind, and visibility from neighboring properties. Side panels are one of the most popular upgrades for standard metal carports.
End Panel Options
Close the front, rear, or both ends with partial panels, full panels, or gable ends. End panels improve weather protection and create a cleaner, more finished look for your driveway, business lot, or storage area.
Utility Storage Upgrades
If you want a lockable storage bay, add enclosure options with a roll-up door or walk-in door. This is ideal for tools, landscaping gear, seasonal inventory, farm supplies, or service equipment.
Walk-In Door Access
Add a 36″ walk-in door to a utility enclosure or enclosed storage section for easy daily entry. Personnel doors are popular for homeowners, farms, and small businesses that need secure storage inside the carport footprint.
Framed Openings
Request framed openings for future doors, windows, vents, electrical penetrations, or business-specific access points. Planning openings during your order can save time and cost later.
Open Drive-In Layout
Keep the 24x20x6 carport open on all sides for simple vehicle access, wider parking clearance, mower storage, motorcycle cover, and daily equipment movement.
17 Standard Color Options
Choose from Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, and White. Color choices help match your home, shop, driveway, barn, small business, or existing metal building.
Mix-and-Match Roof and Trim
Pick separate colors for the roof, trim, gables, and optional side panels. Popular high-conversion combinations include Black roof with White trim, Pewter Gray with Black trim, Galvalume with Charcoal trim, and Barn Red with White accents.
Wainscoting (Two-Tone Panels)
Add wainscoting to side panels or enclosed sections for a more premium property appearance. Two-tone panels are a smart upgrade for homes, small service businesses, farms, and customer-facing locations.
Galvalume Finish
Galvalume is a practical bare-metal finish for buyers who want durability, low maintenance, and a clean industrial look. It is commonly selected for equipment storage, farms, utility lots, and budget-focused carport projects.
Painted Trim & Flashings
Color-matched trim, ridge caps, corners, and gable trim give your 24×20 carport a finished look. This small detail makes the structure look more permanent and professional.
Driveway-Friendly Curb Appeal
For residential and small commercial buyers, color matching helps create a clean appearance across homes, shops, parking areas, and outdoor storage zones. Ask for a quote that matches your existing building colors.
Wide Two-Car Vehicle Storage
Use the 480 sq ft footprint for two compact vehicles, compact car parking, motorcycle cover, ATV storage, mower shelter, golf cart parking, small trailer storage, and daily weather protection without taking over your lot.
Equipment & Tool Cover
Protect lawn equipment, small contractor tools, generators, pressure washers, carts, sprayers, seasonal supplies, and farm utility items from sun, rain, and light weather exposure.
Condensation Control
Add a vapor barrier or condensation-control package when vehicles, tools, inventory, or machinery need extra protection from roof drip and temperature swings.
Lighting & Electrical Prep
Plan the layout for lighting, security cameras, outlets, EV charging, gate access, or business equipment before installation. Your electrician can finish utilities after the structure is installed.
Concrete, Asphalt, Gravel, or Dirt
Install on a prepared concrete slab, asphalt driveway, gravel pad, or level ground. Concrete is best for clean parking and high-value equipment, while gravel and dirt can work for budget-friendly farm or residential coverage.
Future Enclosure Planning
Start with an open 24×20 regular roof carport now and add panels, doors, or enclosed storage later. Planning future upgrades during the quote process helps you avoid layout mistakes and wasted investment.
Wind & Snow Certification
Standard packages are built for everyday conditions, while certified packages can be upgraded for stronger wind and snow requirements. This matters for coastal states, open lots, rural areas, mountain regions, and permit approvals.
Permit-Ready Drawings
Engineered drawings and stamped plans are available when required by your city, county, HOA, lender, or insurance provider. Ask before ordering so your 24x20x6 carport is quoted correctly the first time.
Anchoring System
Concrete wedge anchors, asphalt anchors, mobile-home anchors, or auger anchors are selected based on the install surface. Correct anchoring is critical for carport stability and code compliance.
Security Add-Ons
Add motion lights, cameras, lockable storage rooms, walk-in doors, roll-up doors, and enclosed panels for higher-value vehicles, tools, equipment, and small business inventory.
Fire & Access Planning
Commercial or utility sites may need access spacing, emergency visibility, lighting, electrical planning, and fire-department requirements. Our quote team can help you prepare the right questions before you buy.
Solar & Roof-Top Planning
If you plan to add solar panels, lighting, cameras, or roof-mounted equipment, request the right engineered package up front so your 24×20 metal carport can be specified correctly.
24x20x6 Standard Metal Carport Codes, Permits & Engineering
Order a certified 24x20x6 regular roof metal carport when your county, HOA, property manager, lender, or insurance company requires permit-ready drawings. We can quote engineered packages for local wind load, snow load, anchoring, and site requirements so you can move from quote to installation with fewer delays.
Permit requirements vary by county and use case. Ask for a certified metal carport quote if you need stamped drawings, stronger wind or snow ratings, foundation guidance, documentation, insurance support, or HOA approval help.
How to Maintain a 24x20x6 Regular Roof Metal Carport
A steel carport is a low-maintenance investment, but quick seasonal care protects your vehicles, equipment, roof panels, frame, anchors, trim, and paint finish for years of daily residential, farm, or small business use.
Best Uses for a 24x20x6 Standard Metal Carport
A 480 sq ft regular roof steel carport gives you affordable covered space for vehicles, tools, equipment, storage, work areas, and property protection
Wide Two-Car Parking Cover
Cover compact cars, sedans, motorcycles, golf carts, and daily-use vehicles with affordable regular roof steel protection
Equipment & Tool Cover
Protect mowers, pressure washers, compressors, carts, toolboxes, and small contractor equipment from sun and rain
Small Business Storage
Use the 24×20 carport as covered utility space for parts, supplies, work carts, seasonal inventory, or service equipment
Commercial Utility Cover
Add budget-friendly covered space for employee parking, loading, staging, outdoor supplies, or small jobsite equipment
ATV, Bike & Small Trailer Cover
The 6′ legs provide practical coverage for many ATVs, bikes, utility carts, lawn trailers, and recreational storage items
Outdoor Work Bay
Create shaded space for cleaning, detailing, repairs, maintenance, tool prep, small equipment work, and weather-protected tasks
Farm & Property Storage
Shelter mowers, feed, sprayers, garden tools, seed, small implements, side-by-sides, and farm supplies under durable steel roofing
Driveway Value Upgrade
Add affordable covered parking to a home, rental property, small business, farm, cabin, or acreage without conventional construction delays
3 Ways to Order Your 24x20x6 Regular Roof Metal Carport
Get your best price on a 24x20x6 standard metal carport today. Request a free custom quote, plan your carport package, or speak with a building expert about pricing, delivery, installation, certification, financing, rent-to-own, and site requirements.
Request Free 24x20x6 Quote
Best price, custom layout, fast response
Tell us where the carport will be installed and how you plan to use it. Our team will price a 24x20x6 regular roof metal carport with the right gauge, anchors, panels, certification, colors, and delivery options for your property.
- Free expert standard carport consultation
- Residential, commercial, farm, and utility quotes
- Certified and non-certified packages available
- Fast quote for high-intent buyers ready to order
Free quote. Flexible deposit options after approval.
Plan Your Carport Package
Compare roof, panels, colors, and upgrades
Choose your regular roof carport layout, colors, gauge, side panels, gable ends, utility storage, certification upgrades, and anchor package. Then contact us to verify your final price, local availability, delivery, and installation details.
- Build a budget-friendly standard carport package
- Compare regular roof, color, and panel upgrades
- Plan wide two-car parking or equipment storage layouts
- Send your requirements for final quote review
Final pricing confirmed by your advisor.
Talk to a Carport Expert
Fastest answers, call or chat now
Speak directly with a metal carport advisor who can help with price, lead time, certified drawings, foundation questions, financing, rent-to-own eligibility, regular roof benefits, panel upgrades, and the right package for your property.
- Instant answers over the phone
- Expert guidance on permits and certification
- Roof, gauge, color, and panel recommendations
- Mon to Fri 8am to 6pm PST, Sat 9am to 3pm
Toll-free. Speak with an expert now.
How the Standard Metal Carport Quote Process Works
Price your 24x20x6 regular roof metal carport in minutes
1. Request Pricing
Start your quote so you can compare steel gauge, colors, panels, anchors, certification, and budget-friendly upgrades.
2. Configure Your Carport
Set the 24×20 size, 6′ leg height, regular roof style, certification, colors, side panels, and enclosure options.
3. Review Your Options
Compare vehicle cover, equipment cover, driveway parking, small business storage, and utility layouts before approving your final carport package.
4. Complete Your Quote
Send your final requirements and we will confirm pricing, scheduling, delivery, installation, and financing options.
Ready to price your custom 24x20x6 regular roof metal carport?
Tip:Keep this page open so you can return and submit your final carport requirements with ease.
How Much Does a 24x20x6 Regular Roof Metal Carport Cost?
The cost of a 24x20x6 standard metal carport depends on roof style, steel gauge, certification, state, anchors, side panels, gable ends, color package, utility enclosure options, and installation surface. Request a custom quote for current metal carport prices, regular roof carport deals, free delivery eligibility, installation availability, financing, and rent-to-own options.
Roof Style
Regular roof is the most affordable metal carport roof style. A-Frame Horizontal and Vertical Roof upgrades cost more but add a peaked appearance and stronger roof runoff performance.
Your Location
State pricing, delivery routes, local labor, manufacturing coverage, permit requirements, and certified load requirements can affect your final carport price.
Steel Gauge
14-gauge steel is the standard choice for many carports. 12-gauge steel is recommended for exposed sites, commercial buyers, equipment storage, and buyers who want a more rugged structure.
Panels & Enclosures
Open regular roof carports cost less. Side panels, end panels, gables, utility storage rooms, doors, and full enclosure packages increase price while adding more weather protection and security.
Certification
Certified 24x20x6 carports with engineered drawings cost more but may be required for permits, insurance, coastal regions, hurricane zones, open-field sites, or heavy-snow areas.
Financing & RTO
Flexible financing and rent-to-own availability can help buyers get the steel coverage they need now while spreading payments over time. Eligibility depends on structure type, location, and provider approval.
24x20x6 Regular Roof Metal Carport Price
For the most accurate 24x20x6 standard metal carport price, request a live quote based on your zip code, regular roof package, certification, steel gauge, color selection, anchor type, panel package, and installation surface. A quote helps lock in current promotions, delivery eligibility, financing options, and the best package for your use case.
24x20x6 Regular Roof Metal Carport Financing & Rent-To-Own
Choose the payment path that helps you buy your standard metal carport faster
Traditional Financing
Credit Check Required
- Finance your 24x20x6 regular roof metal carport project
- Structured monthly payment options
- Terms based on lender approval
- Fast online application process
- Ownership from day one
Rent-To-Own (RTO)
No Credit Check
- No credit check required
- Simple approval process
- Low upfront commitment
- Convenient monthly payments
- Great for many standard metal carports
How Delivery & Installation Works
A simple step-by-step process for getting your 24x20x6 regular roof metal carport installed
Place Your Order
Submit your request for the 24x20x6 regular roof configuration and confirm colors, panels, certification, anchors, and site details.
Step 1
Production Scheduling
Your order is scheduled according to manufacturing capacity, delivery routing, local availability, and the final carport specifications you approve.
Step 2
Prepare the Site
Make sure your installation area is level, accessible, clear of debris, and ready for the crew before delivery and installation.
Step 3
Installation Day
Our crew installs the metal carport, verifies layout details, anchors the structure, and confirms the exterior finish details.
Step 4
24x20x6 Regular Roof Metal Carport Reviews from Buyers
Customers across 48 states choose Steel And Stud for standard metal carports, regular roof carports, wide two-car covers, compact vehicle shelters, equipment canopies, farm utility covers, and custom steel carport projects. See why buyers request quotes, compare upgrades, and install with confidence.
“We needed a 24x20x6 regular roof carport for two vehicles and mower storage. The extra width made parking easier, the price was clear, and the finished carport looks clean beside our driveway.”
“Bought a 24×20 metal carport for tools, bikes, and lawn equipment. The regular roof kept the cost low, the roof color matched our home, and the install was simple.”
“We started with an open 24x20x6 carport for a small business storage area, then added side panels for more protection. Steel and Stud made the upgrades easy and the structure feels solid.”
Compare 24x20x6 vs. Other Standard Metal Carport Sizes
Need a different metal carport size? Compare popular standard, two-car, utility, and compact carport sizes, then request a quote for the structure that fits your vehicle, equipment, lot, and budget. Every button below connects you with a pricing expert.
| Feature | 20×20 Carport | 24×20×6 Carport | 24×25 Carport | 24×30 Carport |
|---|---|---|---|---|
| Square Footage | 400 SF | 480 SF | 600 SF | 720 SF |
| Use Capacity | Two compact vehicles | Wider two-car parking + storage | Vehicles + deeper coverage | Vehicles + equipment storage |
| Access Potential | Excellent | Excellent | Excellent | Maximum |
| Best Roof Match | Regular Roof | Regular Roof | A-Frame Optional | Vertical Optional |
| Best For | Budget two-car coverage | Wide standard carport buyers | Driveway and utility use | Equipment and vehicle cover |
| View 20×20 | You’re Here | View 24×25 | View 24×30 |
24x20x6 Regular Roof Metal Carport FAQ: Cost, Permits, Sizes & Install
Get answers before ordering your 480 sq ft standard metal carport. Learn about 24×20 carport prices, regular roof benefits, 6′ leg height, certification, delivery, installation, financing, rent-to-own, color options, anchors, panels, and weather protection. Still have questions? Call our carport advisors at 1-877-275-7048.
Price range: $1,725.00 through $3,585.00
Standard Metal Carports – 24 x 20 x 6 (Regular Roof)
480 sq ft — standard carport for vehicles or coverage
14 Gauge
Code Certified
Price range: $1,725.00 through $3,585.00
Explore More Metal Buildings
Find the perfect size and style for your needs.
