32×40 Prefabricated Metal Building with Adjustable Leg Heights up to 20 Ft
1,280 sq ft for metal garage, workshop, or horse barn
32×40 Metal Building Specs, Dimensions & Custom Options
These are the engineered specs every 32×40 metal building ships with from Steel and Stud. Use them as the baseline, and the 3D builder lets you push any line item up or down before you order.
| Building Footprint | 32′ Wide × 40′ Long Leg heights configurable from 8 ft to 20 ft, sized for two-bay garages, workshops, and small commercial shops |
|---|---|
| Total Square Footage | 1,280 square feet of usable clear-span interior space with no center posts blocking the floor plan |
| Building Configurations | Open carport, partially enclosed with end walls, or fully enclosed garage/shop; split into bays with sliding barn doors, or keep one wide-open clear span for equipment |
| Enclosure Options | Choose a fully open 32×40 carport, a 3-side enclosed shelter, or a 4-wall enclosed metal garage. Custom wall heights and side cutouts are available per side. |
| Roof Style Options | Regular Roof (rounded corners, horizontal panels), A-Frame Horizontal / Boxed Eave, or Vertical Roof (recommended for snow and rain runoff at this footprint) |
| Roof Pitch Options | Standard 3:12 pitch handles most regions; 4:12 and 5:12 pitch upgrades available for heavy-snow zones in NY, CO, MI, MN, and ME |
| Frame Gauge Options | 14-gauge galvanized steel tubing standard, 12-gauge upgrade available (33% thicker tubular framing, extended warranty, recommended for any 32×40 over 12 ft tall) |
| Roof & Wall Panels | 29-gauge sheet metal panels standard, 26-gauge upgrade for hail-prone and coastal areas; choice of horizontal or vertical panel orientation |
| Color Options | 17 standard colors for roof, walls, wainscoting, and trim, all powder-coated with a 20-year fade and chalk warranty |
| Door Options | Roll-up garage doors in 8×8, 9×8, 10×8, 10×10, 12×12; 36-inch walk-in personnel doors; sliding barn doors up to 12 ft wide; framed openings sized to your spec |
| Window Options | Single-hung 30×30 standard, custom sizes available, with screens, security bars, and storefront glazing options |
| Insulation Options | Single-bubble and double-bubble radiant barriers, R-13 vapor barrier, R-19 fiberglass batt, or closed-cell spray foam. Match the spec to your climate. |
| Anchoring Options | Concrete wedge anchors, asphalt anchors, mobile home anchors, or auger ground anchors, included with every 32×40 build and matched to the install surface |
| Installation Surface | Concrete slab, asphalt, gravel pad, or level ground. Each surface uses different anchors and the pad must be level within 3 inches across the 32×40 footprint. |
| Certification & Permits | Stamped engineered drawings available for any county that requires them; permit packets vary by state and local zoning office |
| Snow Load Rating | Standard 30 PSF; upgrades to 65 PSF certified engineering available for snow zones in the Northeast, Rockies, and Upper Midwest |
| Wind Load Rating | Standard 100 MPH, with upgrades to 140 MPH and 170 MPH hurricane-rated certifications available for FL, TX, NC, SC, and LA Gulf coastal zones |
| Lead Time | 4-6 weeks from order confirmation to install in most regions; 6-10 weeks for stamped engineered or certified builds requiring ASCE 7-22 calculations |
| Delivery | Free delivery to all 48 continental US states, with final-mile coordination handled for remote rural sites |
| Warranty | 20-year rust-through warranty on panels and tubular frame; 1-year workmanship warranty on professional installation |
Limited + Product Pledge
Paint Finish
Workmanship Guarantee
Workmanship Guarantee
12 Popular 32×40 Metal Building Uses (1,280 Sq Ft Layouts)
Twelve concrete ways buyers use 1,280 sq ft of clear-span steel. Each card shows the dimension range we typically build for that use, what fits inside, and which spec upgrades to lock in before you order.

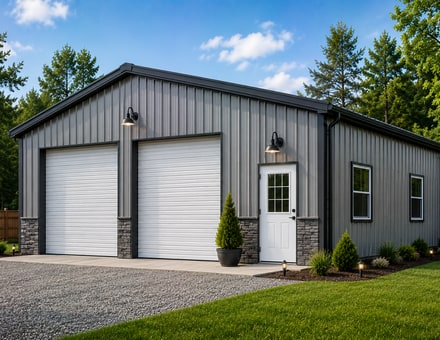

32×40 Two-Car Garage with Workshop
Homeowners pick this layout when a single-bay garage feels cramped. Park two full-size pickups or SUVs in front, then keep 16 feet of depth in back for a workbench, tool wall, and air compressor. The 32-foot clear span means no center post between vehicles.
32×40 Detached Shop with Loft
Tradespeople running side jobs from home spec this build with 12-14 ft legs to fit a mezzanine over half the footprint. You get 1,280 sq ft on the slab plus 640 sq ft up top for parts storage, leaving the main floor open for vehicles and equipment.

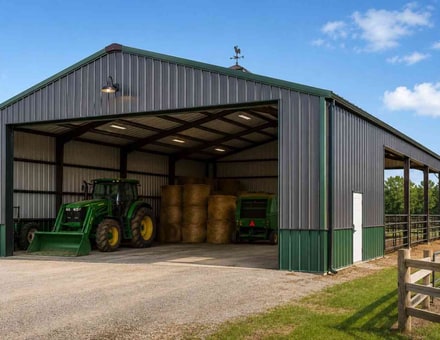

32×40 Equipment Storage Barn
Hobby farmers store a compact tractor, brush hog, hay wagon, and ATV under one roof. The 32-foot clear span handles a 60-horse tractor with implement attached. Spec 14-16 ft legs if you run a cab tractor or stack round bales two-high on pallets.
32×40 Horse Barn with Stalls
Rural property owners divide 1,280 sq ft into four 10×12 stalls down one side, a 12-foot center aisle, and a tack/feed room at one end. Add a lean-to off the back for hay storage. Wainscoting and Dutch doors give the build curb appeal for boarders.
32×40 Auto Repair Shop
Independent mechanics buy this footprint to run two service bays with a two-post lift in each. The 14-16 ft leg height clears any standard 8-9 ft lift plus a raised vehicle. Add a 12×12 roll-up at each end for drive-through bays and a walk-in for the customer waiting area.
32×40 Retail or Boutique Storefront
Small business owners frame out a storefront window package across the 32-foot front, add a 36-inch insulated walk-in, and finish the interior with partitions. 1,280 sq ft is a strong sales-floor size for a boutique gym, cycle studio, or small showroom in a B-zoned lot.
32×40 Fabrication & Welding Shop
Welders and fabricators need clear-span height for crane hoists, plasma tables, and stacked material racks. Spec 14-gauge framing minimum, 26-gauge wall panels for spark resistance, and a 12×14 roll-up to wheel finished trailers and frames out the back.
32×40 Warehouse & Distribution
Small distributors stack pallets three-high across 1,280 sq ft with a 12-foot center aisle for forklift travel. The 32-foot clear span means racks line both long walls without center-post interference. Add a hydraulic dock door at one gable end for truck loading.
32×40 RV Garage & Cover
RV owners with a Class A coach or fifth-wheel plus a tow vehicle pick this footprint over a narrower 24×40. The extra 8 feet of width fits the RV with slides extended on one side and the tow rig parked alongside, all under one roof with 14-16 ft of vertical clearance.
32×40 Man Cave & Hobby Garage
Car collectors and hobbyists split the footprint between a finished lounge area and a working garage bay. Partition off 12×32 for the cave (TV wall, bar, seating), leaving 28×32 of garage. Add insulation, two windows, and a walk-in side door for full year-round use.
32×40 Barndominium Shell
Buyers building a barndo on rural land start with the 32×40 shell as a 1-bedroom living half and a 2-bay shop half. The clear-span steel frame lets your contractor stud out interior walls anywhere. Stamped engineered drawings ship with every certified build for permit submittal.
32×40 Community & Church Hall
Small congregations and rural community boards use 1,280 sq ft for a fellowship hall seating roughly 80 in folding chairs, a kitchenette, and one restroom. Spec wainscoting and storefront windows for daylighting, and finish with painted trim that matches the main building.
Don’t see your exact use case? Our advisors will help configure your 32×40 for any application. Request a free quote.
What’s Included
What’s Included in a 32×40 Metal Building Kit?
Every 32×40 metal building kit ships with the structural package, color choices, anchors, and professional installation already in the price. Below is exactly what comes standard and which upgrades buyers most often add before they order.
Standard With Every 32×40 Order
Standard configuration items at no extra cost.
- 14-Gauge Galvanized Steel FrameG90 hot-dipped zinc-coated tubular framing forms the full skeleton of your 32×40 build, engineered to AISI S100 cold-formed steel standards for two-decade service life.
- 29-Gauge Roof and Wall PanelsPowder-coated sheet metal panels in your choice of 17 standard colors, with a 20-year rust-through warranty backing every panel on the building.
- Three Roof Style OptionsPick Regular Roof, A-Frame Horizontal (Boxed Eave), or Vertical Roof at no upcharge. Vertical is recommended on any 32×40 over 30 ft long for proper rain and snow shedding.
- Engineered Ridge Caps and TrimColor-matched ridge caps, eave trim, corner trim, gable trim, and rake trim are included to seal every roof and wall joint against weather intrusion.
- Anchoring SystemConcrete wedge anchors, asphalt anchors, mobile home anchors, or auger ground anchors come with the kit. The type ships based on the surface you tell us at order.
- Delivery to All 48 StatesSteel and Stud ships every 32×40 build as standard across the continental US, with final-mile coordination handled for rural and remote sites at no extra cost.
- Professional InstallationOn every tubular-frame 32×40 kit, our certified install crew erects the building on your pad. No separate contractor bid required for the structure itself.
- 20-Year Rust-Through WarrantyBoth the galvanized steel frame and the powder-coated sheet metal panels carry a 20-year rust-through warranty from the manufacturer.
- 17 Standard Color ChoicesMix and match roof, walls, wainscoting, and trim from the full palette. White, Barn Red, Burnished Slate, Galvalume, Pewter Gray, and 12 more at no additional cost.
- Standard Wind and Snow EngineeringEvery 32×40 ships rated to 100 MPH wind and 30 PSF snow load by default, sized to ASCE 7-22 and IBC baseline requirements for non-certified zones.
- Three Leg Height Options StandardPick 8 ft, 9 ft, or 10 ft legs at no upcharge; taller legs from 12 ft to 20 ft are configurable in the sensei3d 3D builder before you submit for a quote.
- Stamped Engineered Drawings AvailableAny certified build includes stamped engineered drawings and a foundation plan ready to hand to your county permit office for IBC, IRC, and local code review.
+ Popular 32×40 Building Upgrades
Common add-ons buyers select on this footprint.
- 12-Gauge Frame UpgradeSteps the tubular framing from 14-gauge to 12-gauge (33% thicker steel) with an extended structural warranty. Most-picked upgrade on builds with 12 ft+ legs or heavy snow loads.
- 26-Gauge Panel UpgradeSteps roof and wall sheet metal from 29-gauge to 26-gauge for better hail and impact resistance, recommended in hail alley and coastal zones.
- Roll-Up Garage DoorsAdd 8×8, 9×8, 10×8, 10×10, 12×12, or 12×14 roll-up doors at any wall position. Wayne Dalton-style commercial doors with chain or motorized operators available.
- Insulated Walk-In Doors36-inch insulated personnel doors with weatherstripping, deadbolts, and panic hardware, required for any 32×40 used as a workspace or storefront under most county codes.
- Single-Hung 30×30 WindowsAdd windows in any wall position for daylighting and ventilation, with screens and optional security bars; custom sizes and storefront glazing are also available.
- Insulation PackagesSingle-bubble radiant, double-bubble radiant, R-13 vapor, R-19 fiberglass batt, or closed-cell spray foam. Pick by climate zone and whether the build will be heated.
- Wainscoting Two-Tone WallsAdds a contrasting lower band 3-4 ft up the wall in a second color, popular on residential garages, horse barns, and storefronts for curb appeal.
- Lean-To AdditionsBolt a 10 ft or 12 ft wide lean-to onto one, two, or three sides of the 32×40 for hay storage, equipment overhang, outdoor wash bay, or covered walkway.
- Hurricane and Snow CertificationStep wind rating from 100 MPH to 140 MPH or 170 MPH, and snow from 30 PSF to 65 PSF, with stamped engineering for coastal and heavy-snow counties.
- Mezzanine Floor SystemEngineered partial-loft framing covers up to half the 32×40 footprint (640 sq ft up top) for parts storage, office space, or a sleeping loft in a barndo shell.
- Garage Door Openers and AccessoriesChain-drive, belt-drive, or Wi-Fi smart openers paired with window kits in roll-up doors, weather seals, and motion lighting, bundled and installed with the doors.
Customize & Build Your 32×40 Metal Building Online
Open the sensei3d 3D builder to customize your 32×40 metal building line by line. Configure leg height from 8 ft to 20 ft, pick from 3 roof styles and 17 standard colors, drop in roll-up and walk-in doors at any wall position, then submit for a stamped 24-hour custom quote with free delivery and free install included in the price.
Leg Height (8′ to 20′)
Pick 8-10 ft legs for a standard residential garage, 12-14 ft for RV covers and shop lifts, or 16-20 ft for fabrication work. Taller legs require 12-gauge framing and may.
3 Roof Styles
Regular Roof saves cost on short builds, A-Frame Horizontal (Boxed Eave) gives a residential look, and Vertical Roof is required on any 32×40 over 30 ft long for proper runoff.
Roof Pitch & Slope
Standard 3:12 pitch handles most regions; spec 4:12 or 5:12 in heavy-snow zones (NY, CO, MI, MN, ME) to shed snow loads up to 65 PSF without ice damming.
Frame Gauge (14 or 12)
14-gauge tubular framing is the standard on a 32×40; jump to 12-gauge (33% thicker, G90 galvanized) for builds with 12 ft+ legs, snow zones, or commercial use cases.
Sheet Metal Gauge (29 or 26)
29-gauge sheet metal is the default; upgrade to 26-gauge in hail-prone counties, coastal Florida and Gulf zones, or any build where you want longer paint life.
Certification & Engineering
Stamped engineered drawings, foundation plans, and ASCE 7-22 wind/snow calcs ship with any certified 32×40, required by most county permit offices for IBC and IRC compliance.
Roll-Up Garage Doors
Spec 8×8, 9×8, 10×8, 10×10, 12×12, or 12×14 roll-ups in any wall position. Two 10x10s on the long wall is the most-ordered config for two-car 32×40 garages.
Walk-In Doors
36-inch insulated walk-in personnel doors come with full frames, weatherstripping, deadbolts, and locksets; required on any 32×40 used as workspace or storefront.
Hydraulic & Rapid Doors
Commercial hydraulic one-piece doors and high-speed rapid-roll units are available for auto shops, fab shops, and warehouse builds. Pair with smart access keypads or fob entry.
Windows & Skylights
Single-hung 30×30 windows are standard; custom sizes, storefront glazing, and roof skylights add daylighting, popular on horse barns, hobby shops, and boutique storefronts.
Framed Openings
Pre-frame openings for future doors, HVAC penetrations, or expansion bays during the original build to skip cutting panels later. Costs almost nothing at order, saves a lot at year three.
Garage Door Openers & Windows
Chain, belt, or Wi-Fi smart openers pair with optional window kits in roll-up doors and motion-activated lighting for hands-free entry on the 32×40 frame.
17 Standard Color Options
Pick from Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, and White, all with.
Mix-and-Match Roof, Walls, Trim
Spec different colors per surface; White walls with Barn Red roof is the most-ordered residential combo, and Pewter Gray walls with Black trim is the top commercial pick.
Wainscoting (Two-Tone Walls)
Add a contrasting lower band 3-4 ft up the wall in a second color for residential garages, horse barns, and boutique storefronts that want extra curb appeal.
Galvalume (Bare Metal Finish)
Hot-dipped aluminum-zinc Galvalume roofing is the cost-effective default for rural equipment barns and industrial shops where curb appeal takes a back seat to corrosion resistance.
Painted Trim & Flashings
Color-matched ridge caps, eave trim, corner trim, gable trim, and rake trim all ship in your chosen color with color-coded fasteners for a finished, unified look.
Custom Color Match
Match an existing house, barn, or commercial building with a custom paint upcharge; samples ship before order so HOA and design-review buyers can confirm the spec.
Insulation Options
Single-bubble, double-bubble, R-13 vapor, R-19 fiberglass batt, closed-cell spray foam, or insulated metal panels. Pick by climate and whether the 32×40 will be heated or cooled.
Lean-To Additions
Add a 10 ft or 12 ft lean-to on one, two, or three sides for hay storage, tractor overhang, outdoor wash bay, or covered patio, engineered into the original frame.
Mezzanines & Lofts
Engineered partial-loft framing covers up to 640 sq ft of the 32×40 footprint for parts storage, office space, or a sleeping loft in a barndo shell, common in shops and.
Interior Partitions
Divide 1,280 sq ft into bays, offices, restrooms, or tack/feed rooms with steel-stud or insulated metal panel walls; partitions install after the shell is up.
Trim, Anchors, Gables
Add decorative gable accents, contrasting trim bands, or stylized peak vents to push a utilitarian 32×40 toward residential or storefront curb appeal.
Flooring Prep
We provide slab spec guidance. Typical 32×40 pour is 4-inch reinforced concrete on a compacted gravel base, with engineered thicker slabs for shops running lifts or forklifts.
Wind & Snow Certification
Standard ratings are 100 MPH wind and 30 PSF snow; step up to 140 MPH or 170 MPH for coastal hurricane zones (FL, TX, NC, SC, LA) and 65 PSF.
Permit-Ready Drawings
Stamped engineered drawings, foundation plans, and ASCE 7-22 calcs ship with every certified build, pre-checked against IBC, IRC, NEC, IFGC, IECC, and IMC requirements.
Door Locks & Access Control
Slide bolts, deadbolts, keypad entry, smart locks, Wi-Fi garage openers, and Knox box options secure the 32×40 for residential, commercial, or institutional buyers.
Fire Safety & Alarms
Smoke and heat detectors, ABC extinguishers, illuminated exit signage, and sprinkler-ready framing are spec’d into commercial 32×40 builds where county code requires them.
Anchoring System
Concrete wedge, asphalt, mobile-home, or auger ground anchors come with every 32×40 build and are matched to your install surface at order. No separate purchase needed.
Solar & Roof-Top Loads
Engineered framing supports rooftop solar arrays, satellite dishes, and HVAC condensers on the 32×40 roof. Spec reinforced purlins at order if you plan a PV install.
32x40 Metal Building Codes, Permits & Engineering
Permit rules on a 1,280 sq ft footprint vary by county, but most jurisdictions in the 48 states treat a 32x40 as a permitted accessory structure that requires stamped drawings if used commercially or sited near a property line.
We also adhere to plumbing codes, energy conservation standards, and any state or local requirements. Our team handles code compliance so you have total peace of mind.
How to Maintain a 32x40 Metal Building
Steel buildings shed weather and shrug off pests, but a 32x40 still benefits from twice-a-year walk-throughs to keep the warranty intact and catch small issues before they grow.
What Can You Do with 1,280 Square Feet?
1,280 sq ft sounds abstract until you see what actually fits. Here are real layouts buyers have built on the 32x40 footprint.
Workshop & Fabrication
Two full-size pickups parked side-by-side with 12 ft of depth behind for a workbench, tool wall, and air compressor.
Equestrian Use
Four 10x12 horse stalls down one long wall, a 12-foot center aisle, and an 8x32 tack and feed room at one gable end.
RV & Motorhome Storage
One Class A motorhome with slides extended on one side plus a Jeep tow rig parked alongside, all under a 14 ft Vertical Roof.
Service & Repair Area
Two auto repair service bays each with a two-post lift, plus a 12x16 customer waiting area and a small parts office.
Recreation & Sports
A 32x16 boutique gym floor with rubber matting and one squat rack, plus a 32x24 cardio and stretch zone behind a partition.
Farm & Ranch Use
Compact tractor with brush hog attached, a hay wagon, an ATV, and stacked round bales two-high along the back 12 feet.
Barndominium Living
1-bedroom barndo living half (32x20 with kitchen, bath, bedroom) and a 32x20 two-bay shop on the other side of an interior wall.
Pallet & Warehouse Storage
Pallet racking lining both 40-ft long walls three-high, with a 12-foot center aisle for a 5,000-lb forklift to travel and turn.
3 Ways to Order Your 32x40 Metal Building
Customize your 32x40 steel building in our free 3D builder, request a free custom quote, or talk directly with a building expert. Reservation deposit typically 10% to 30% based on your state and manufacturer.
Request Free 32x40 Quote
Free custom design with a reply within 24 hours
Send us your zip code, surface type, and rough spec, and a Steel and Stud building expert will return a stamped 32x40 custom quote within 24 hours. This path fits buyers who already know roughly what they want and just need the number to move forward.
- Quote returned within 24 business hours
- Stamped engineered drawings if certified
- Free delivery and install included
- Flexible deposit to reserve your slot
- No-obligation, no credit pull required
Free quote. Flexible 10-30% deposit to reserve your 32x40 after approval.
Build Your 32x40 in 3D
Design your 32x40 yourself in our free 3D builder
Open sensei3d (the 3D building configurator), spec every door, window, color, and gauge on a 32x40, and save your build. We then return a stamped custom quote within 24 hours against your real spec, no signup wall and no credit pull required.
- Free 3D builder, no signup wall
- Save your spec and share with a contractor
- 24-hour stamped custom quote
- Configure all 17 colors and door positions
- Flexible deposit to reserve your build
Free tool. Flexible deposit to reserve your 32x40 build.
Talk to a 32x40 Building Expert
Fastest answers, call or chat right now
Call a Steel and Stud expert directly for the fastest path through a 32x40 spec. Best for buyers comparing pole barns to steel kits, navigating county permits, or working through coastal hurricane and heavy-snow certifications.
- Toll-free direct line to a building expert
- Help with county permit questions
- Pole barn vs steel comparison guidance
- Walk-through of financing and rent-to-own
- Same-day quote in many cases
Toll-free. Speak with a Steel and Stud expert now.
How the 3D Builder Works
Four steps in sensei3d takes a 32x40 from blank screen to submitted custom quote, with no signup, no credit check, and no obligation.
Pick Your Size
Confirm the 32x40 footprint and pick leg height between 8 ft and 20 ft based on your use case and clearance needs.
Choose Roof Style
Pick Regular Roof, A-Frame Horizontal (Boxed Eave), or Vertical Roof. Vertical is recommended on any 32x40 over 30 ft long.
Add Doors, Windows, Colors
Drop in roll-ups, walk-ins, windows, and skylights at any wall position, then pick from 17 standard colors for roof, walls, wainscoting, and trim.
Get Your Quote
Submit the saved spec and a Steel and Stud expert returns a stamped custom quote against your real configuration within 24 hours.
Ready to design your custom 32x40 metal building in 3D?
Customize My 32x40 in sensei3d →
Tip: Open sensei3d in a new tab so you can keep this page open for spec and certification reference. No deposit until you approve the final spec.
How Much Does a 32x40 Metal Building Cost?
How much is a 32x40 metal building? A 32x40 metal building kit price starts at $13,420 (est.) and runs up to $22,005 (est.)+ fully installed, with free delivery and free professional installation included in every quote.
Your Location
Steel costs and freight vary by state, and coastal hurricane zones (FL, TX, NC, SC, LA Gulf) plus heavy-snow zones (NY, CO, MI, MN, ME) add certification cost. Free delivery is included, but the engineering load shifts the base.
Steel Gauge
14-gauge tubular framing is the 32x40 standard; stepping to 12-gauge adds roughly 10-15% to the kit but extends the warranty and is recommended on any build with 12 ft+ legs or commercial use.
Roof & Layout
Regular Roof is the cheapest, A-Frame Horizontal mid-range, and Vertical Roof the priciest. Vertical is required on any 32x40 over 30 ft long, so most buyers land there anyway.
Certification
Standard 100 MPH / 30 PSF builds cost less; stamped engineering for 140-170 MPH wind or 50-65 PSF snow adds 8-15% but is mandatory under most coastal and heavy-snow county codes.
Doors & Access
Each roll-up garage door, walk-in personnel door, sliding barn door, or window adds line-item cost. Two 10x10 roll-ups and one 36-inch walk-in is the most-ordered residential config.
Site Conditions
Concrete slabs, asphalt, gravel, and ground each use different anchors at the same kit price, but your site prep (pad leveling, slab pour, gravel base) is separate and varies by region.
32x40 Metal Building Complete Price Range
Triple Wide Garage, 1,280 sqft @ ~3.84/sqft, ±12% range for options. Excludes sales tax, shipping, site prep, concrete slab, permits, and install add-ons.
Flexible Financing & Rent-To-Own
Choose the payment path that fits your project and budget
Traditional Financing
Credit Check Required
- Loans available on 32x40 builds from $13,420 (est.)+
- Competitive fixed rates with same-day pre-approval
- Flexible 24, 36, 48, and 60-month terms
- Simple online application, no paperwork
- Ownership from day one of install
Rent-To-Own (RTO)
No Credit Check
- No credit check required, fast approval
- Low upfront deposit on your 32x40
- Affordable monthly payments by spec
- Skip the bank, no interest disclosed as financing
- Full ownership at the end of term
How Delivery & Installation Works
Four steps move a 32x40 metal building kit from order to standing on your pad. Free delivery to all 48 continental US states is included in the kit price, free professional installation is included on every tubular-frame build, and total lead time runs 4-6 weeks in most regions.
Place Your Order
Lock in your 32x40 spec with a 10-30% reservation deposit after the stamped quote is approved.
Step 1
Production
Galvanized steel framing and 29 or 26-gauge panels are cut and pre-engineered to your spec in 3-5 weeks.
Step 2
Prepare the Site
Pour your slab or level your gravel pad to within 3 inches across the 32x40 footprint before the install date.
Step 3
Installation
Our certified crew erects the 32x40 on your pad in 1-3 days at no additional charge to the kit price.
Step 4
Compare 32x40 vs. Other Metal Building Sizes
A 32x40 sits in the sweet spot between a tight 28x40 and a more commercial 32x36 or step-up 30x40. Compared to a 30x40 you pick up an extra 80 sq ft of clear span and 2 feet of vehicle-side clearance, which matters when you're running two full-size pickups with doors open.
| Feature | 28x40 Building | 32x40 Building | 30x40 Building | 32x36 Building |
|---|---|---|---|---|
| Square Footage | 1,120 sq ft | 1,280 sq ft | 1,200 sq ft | 1,152 sq ft |
| Use Capacity | Tight 2-car + storage | 2-car + full workshop | 2-car + workshop | 2-car + light storage |
| Access Potential | Two 9x8 roll-ups | Two 10x10 roll-ups | Two 10x8 roll-ups | Two 10x8 roll-ups |
| Roof Style | Vertical recommended | Vertical recommended | Vertical recommended | A-Frame works |
| Best For | Tight lots | Shop + 2 vehicles | Standard 2-car shop | Shorter footprint |
| View 28x40 | You're Here | View 30x40 | View 32x36 |
32x40 Metal Building FAQ: Cost, Permits, Sizes & Install
Quick answers to the most-asked 32x40 buyer questions.
