100×200 Metal Building
900 sq ft — triple wide carport for vehicles or equipment
14 Gauge
Local Certification Available
No card charged online · Specialist calls within 1 business day · 10–20% deposit by phone
100×200 Metal Building Specs, Dimensions & Custom Options
A 100×200 footprint delivers 20,000 square feet of clear-span industrial interior – the standard for large distribution centers, manufacturing plants, fleet terminals, and high-volume warehouse operations. Configure every option below in our 3D builder, or work with our commercial advisors for code-stamped engineered drawings.
| Building Footprint | 100′ Wide × 200′ Longwith leg heights from 18′ to 28′, clear-span throughout (no interior columns) |
|---|---|
| Total Square Footage | 20,000 square feetof clear-span interior – a large industrial rectangular footprint for logistics, manufacturing, fleet, storage, and institutional operations |
| Building Configurations | Large industrial warehouse, regional distribution center, manufacturing plant, fleet maintenance terminal, trucking terminal, indoor sports complex, equestrian arena, RV dealership, worship center, agricultural processingAll Available |
| Enclosure Options | Fully enclosed (4 walls) is standard for most 100×200 industrial and commercial builds. Open shelter, partial enclosure, clear-span bays, long-side lean-tos, cross-dock layouts, cross-dock layouts, and loading-dock configurations are available for agricultural, fleet, logistics, and manufacturing uses |
| Roof Styles | Vertical Roof is standard on Mega-tier structures (best snow and rain runoff over the 100-foot span). A-Frame Horizontal available for aesthetic builds. Regular Roof not recommended at this footprint |
| Roof Pitch Options | Standard 4:12 pitch on 100×200 builds, with 5:12 and 6:12 upgrades for snow regions, plus engineered low-pitch and standing-seam options for warehouse, logistics, and industrial roofing |
| Frame Gauge | 12-gauge primary tubing standard, 14-gauge secondary framing, with red iron I-beam upgrades available for heavy industrial loads, long-span requirements, mezzanines, dock systems, and overhead crane systems |
| Roof & Wall Panels | 26-gauge sheet metal panels standard at Mega tier (29-gauge available on lower-spec builds). Insulated metal panels and standing-seam upgrades available for office and retail conversions |
| Door Options | Roll-up doors from 10’x10′ up to 20’x20′ for tractor-trailers, fleet vehicles, RV inventory, and heavy equipment. Sliding doors, hydraulic one-piece doors, dock-leveler-ready openings, and 4’x7′ personnel doors all available |
| Window Options | 36″x36″, 48″x48″, or storefront-style fixed glazing. Insulated and Low-E options for office or retail conversion. Skylights and clerestory glazing can be specified for daylighting where allowed by code and occupancy requirements |
| Color Options | 17 colors for roof, walls, and trim independently: Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, White |
| Wind Rating | 140 MPH wind rating standard at this size. Engineered upgrades certified to 170+ MPH for hurricane and coastal zones. Wind exposure category C/D applicable |
| Snow Load | 40 PSF snow load standard, with engineered upgrades to 80+ PSF for mountain regions and ground-snow zones above 50 PSF |
| Certification | Mandatory at Mega tier. Engineered, wet-stamped drawings ship with every 100×200 order, meeting IBC, IRC, NEC, IFGC, IECC, and IMC code requirements for commercial occupancy |
| Anchoring | Engineered concrete footings recommended (8″ to 12″ depth depending on soil bearing). Anchor bolt patterns delivered with the foundation drawings. Slab spec scales with intended use and load. |
| Free Delivery | Included on every orderin the 48 continental US states |
| Free Installation | Free delivery to all 48 contiguous states. Installation on Mega-tier red iron and large industrial builds is bid separately by our certified crew network and varies by region, crane access, and complexity. |
| Lead Time | 8 to 12 weeks from order confirmation. Large industrial structures fabricate to order; high-demand seasons, red iron upgrades, dock arrays, and insulated panel packages may extend lead times. |
| Installation Time | 10 to 18 days for most 100×200 commercial and industrial configurations, with longer windows for red iron framing, mezzanines, crane-ready framing, complex dock systems, or insulated metal panel skin |
| Warranty | 20-year rust-through warranty plus 90-day workmanship guarantee |
Limited + Product Pledge
Paint Finish
Workmanship Guarantee
Workmanship Guarantee
12 Industrial 100×200 Metal Building Uses (20,000 Sq Ft Operations)
A 20,000 square foot 100×200 prefab steel building anchors large industrial warehouses, regional distribution centers, manufacturing plants, fleet terminals, agricultural facilities, and institutional campuses. Filter by use category and price your custom configuration in minutes.

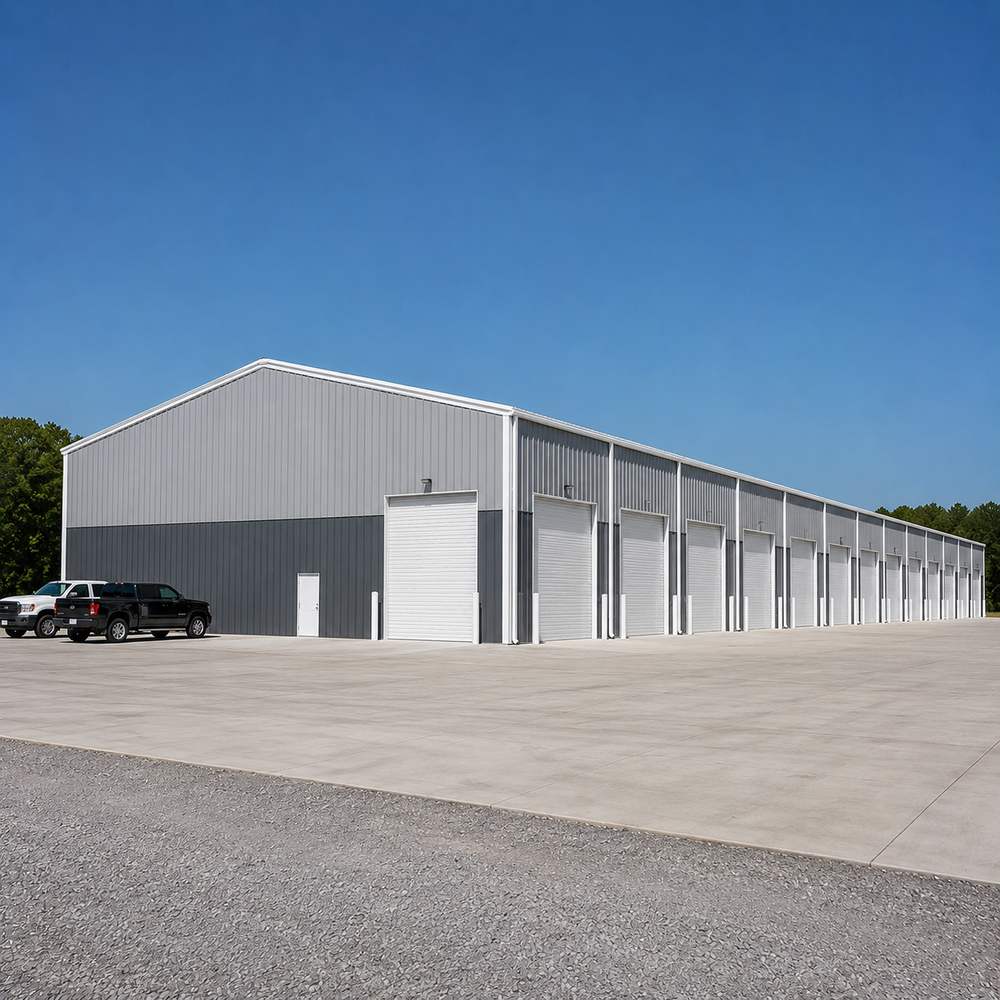

100×200 Fleet Terminal / Vehicle Operations
20,000 sq ft fleet garage for 70 to 100 work trucks, vans, service trailers, or municipal vehicles under one engineered roof. Multiple 14×16 roll-ups along the long wall keep crew mornings moving with room for maintenance bays, staging, and dispatch flow.

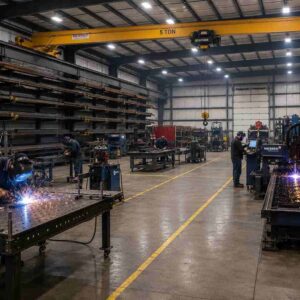

100×200 Manufacturing Plant
Column-free 20,000 sq ft floor accommodates production lines, CNC equipment, robotic cells, conveyor systems, and overhead crane bridges. Reinforced framing supports rooftop HVAC and rooftop solar arrays without secondary structural work.

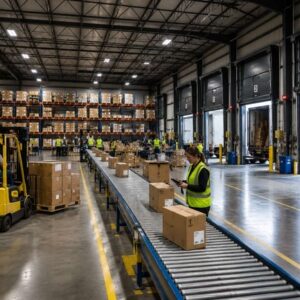

100×200 Regional Distribution Center
Built for high-throughput logistics: dock-leveler-ready openings on the long wall, drive-through bay configurations, and clear height for forklifts to stack pallets six high. Pairs naturally with a side lean-to for trailer staging.

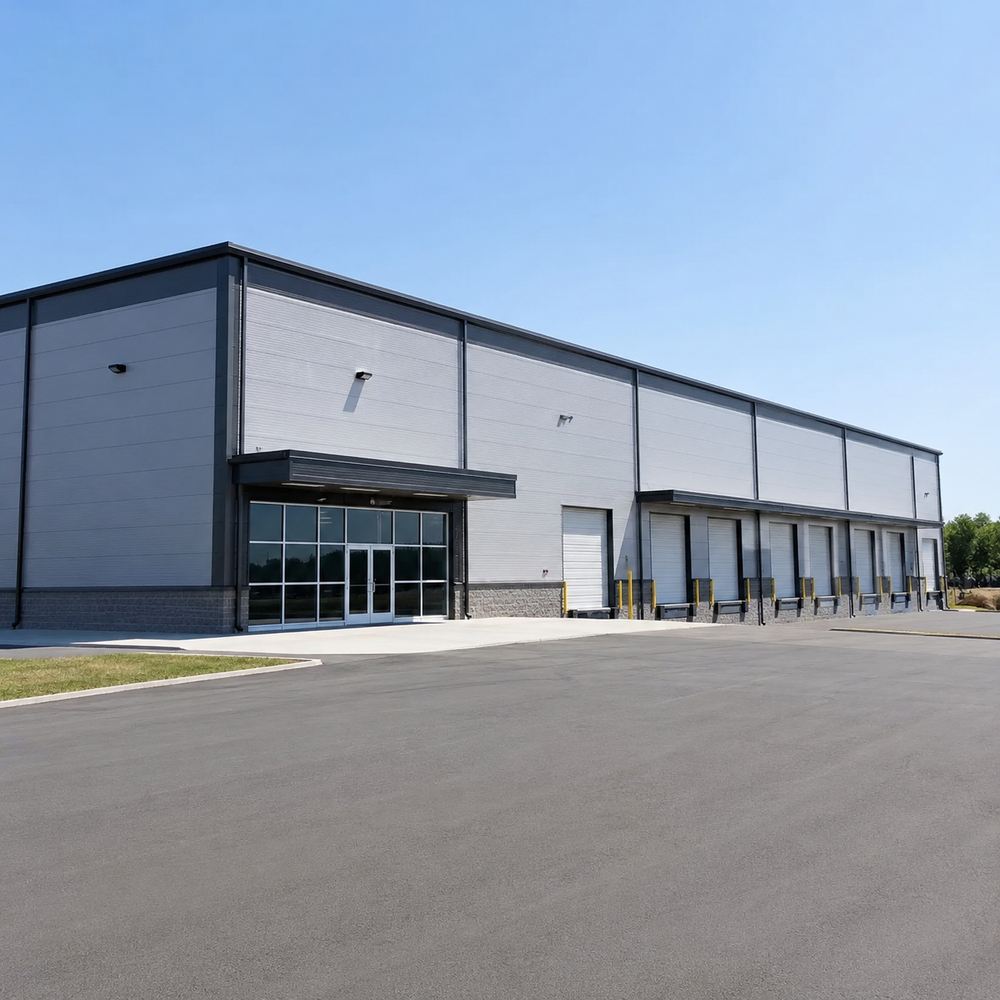

100×200 Commercial Showroom / Retail Facility
Auto, RV, boat, or equipment dealership floors that need 20,000 sq ft of column-free display. Storefront glazing, customer-facing finishes, and engineered roof loads for branded signage and HVAC equipment.

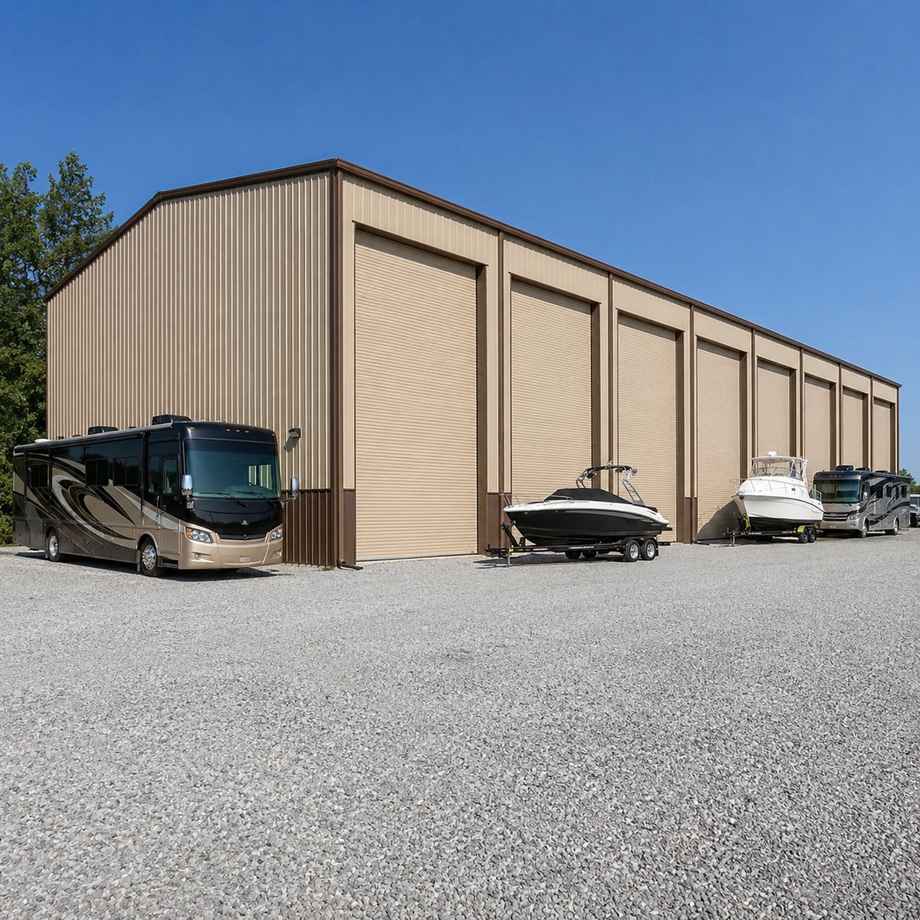

100×200 RV / Boat Dealership Inventory Facility
Indoor inventory floor for Class A motorhomes, fifth wheels, travel trailers, marine boats, and recreational equipment. 22 to 28 feet of leg clearance accommodates the tallest fifth wheels with rooftop AC units.
100×200 Athletic Facility / Indoor Sports Complex
20,000 sq ft accommodates two full basketball courts with sideline run-out, two practice fields for soccer or lacrosse, batting cages with overhead clearance, or a CrossFit-style training floor with rigs along the long wall.

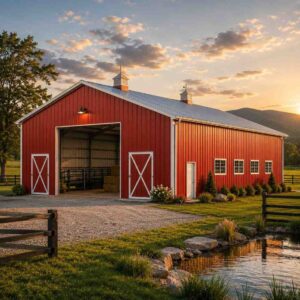

100×200 Agricultural Processing Facility
Hay barn, grain processing, cold storage, dairy operations, or large-equipment housing for combines and grain trucks. Heavy-gauge framing supports rooftop conveyors, ventilation fans, and industrial wash-down systems.

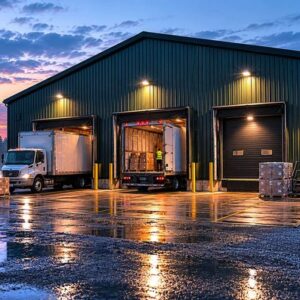

100×200 Trucking Terminal / Cross-Dock
Large cross-dock terminal with bay doors on opposing long walls, dock-leveler-ready openings, and clear interior height for tractor-trailers to drive through fully loaded. Office partition fits naturally on the front-end gable.
100×200 High-Bay Warehouse / Inventory Storage
20,000 sq ft of high-bay warehouse for pallet racking, bulk storage, or inventory staging. Standard 18-foot clearance supports five- to six-tier racking; 20-foot clearance accommodates six-tier racking with forklift access.
100×200 Municipal / Government Facility
Public works storage, emergency response staging, regional evacuation shelters, or municipal equipment yards. Engineered to 170+ MPH wind ratings with stamped plans suitable for FEMA shelter compliance and public-bid procurement.
100×200 Indoor Riding Arena
Large indoor riding arena with mounted-rider clearance, kickwall reinforcement up to 8 feet, and a side lean-to for tack rooms or stalls. Galvanized framing handles ammonia and humidity from year-round equine use.
100×200 Worship Center / Fellowship Hall
20,000 sq ft column-free interior seats 1,800 to 2,500 in standard worship configuration, with room for a stage, balcony framing, and rear fellowship space. Insulation packages and HVAC-ready framing handle congregation comfort year-round.
Need engineered drawings, mezzanine framing, cross-dock layouts, or crane-ready specs on your 100×200? Our commercial advisors design and price it free.
What’s Included in a 100×200 Metal Building Kit?
Every 100×200 prefab steel building kit ships with primary 12-gauge framing, secondary purlins and girts, sheet metal, fasteners, and engineered drawings. Free curbside delivery on every Mega-tier order; commercial install bid separately by region.
Standard With Every 100×200 Metal Building Order
Everything you need ships with clear commercial scope and no hidden steel-package fees
- 12-gauge primary tubing + 14-gauge secondary100′ x 200′ footprint with leg height of your choice from 18′ to 28’+
- Vertical Roof (standard at Mega tier)A-Frame Horizontal also available; Vertical Roof recommended for any region with snow or rain runoff over the 150-foot building run
- 26-gauge sheet metal panels (standard at Mega tier)Roof and walls in your color choice; insulated metal panel upgrades available for office or retail conversion
- 17 color optionsPick roof, walls, and trim colors independently from 17 standard metal building colors
- Engineered purlins, girts, and primary bracingCold-formed and rolled secondary framing engineered specifically for the 100-foot clear span and 150-foot building run
- All hardware includedFasteners, color-matched screws, sealing strips, brackets, bolts
- Painted flashings, trim, ridge capsColor-matched to your panel choices; 20-year paint warranty on all painted exterior surfaces
- Anchor bolt patterns (foundation matched)Engineered anchor bolt layouts delivered with the foundation drawings; concrete pad spec at 6″ to 12″ depth scaled to soil bearing
- FREE delivery to all 48 statesCurbside delivery to your install address; no hidden freight charges on the steel package
- Engineered, wet-stamped drawings includedMandatory at Mega tier – code-stamped to IBC, IRC, NEC, IFGC, IECC, IMC and your local jurisdiction
- 20-year rust-through warrantyPlus 90-day workmanship guarantee on the 12-gauge primary frame and assembly
+ Popular 100×200 Building Upgrades & Add-Ons
Optional add-ons to spec your 100×200 commercial building for industrial, retail, agricultural, or institutional use
- Red iron beam upgrade (industrial)Hot-rolled red iron primary frame for crane bridges, mezzanines, and rooftop equipment loads beyond standard tubular capacity
- Heavier gauge primary framingBeyond the standard 12-gauge: red iron and engineered W-shape options for industrial loads and overhead cranes up to 20-ton capacity
- 26-gauge sheet metal upgradeStanding-seam roof panels for office or retail aesthetics, plus insulated metal panel walls for energy-code compliance
- Certified / engineered drawingsWet-stamped engineered plans with foundation drawings, anchor patterns, and code calculations for FEMA, OSHA, and IBC commercial occupancy
- Higher wind and snow ratingsUp to 170+ MPH wind for hurricane and coastal zones, up to 80+ PSF snow load for mountain and ground-snow regions over 50 PSF
- Commercial roll-up and dock doors10’x10′ to 20’x20′ roll-up doors, hydraulic one-piece doors, dock-leveler-ready openings, and high-speed rapid-roll doors for warehouse throughput
- Storefront entries and double doors4’x7′ commercial double doors, full-glass storefront entries, and ADA-compliant entry systems for retail and office occupancy
- Storefront and clerestory windows36″x36″, 48″x48″, and full-height storefront glazing with insulated Low-E glass; clerestory windows for daylighting and energy code compliance
- Commercial insulation packagesFiberglass batt R-19 to R-30, spray foam closed-cell, insulated metal panels (R-25 to R-50), and vapor-barrier wraps for office, retail, and HVAC-conditioned spaces
- Wainscoting (two-tone walls)Two-tone wainscoting for branded retail aesthetics; works with corporate color palettes for dealership and franchise locations
- Lean-to additions for trailer stagingLong-side lean-tos add covered staging for trailers, materials handling, or outdoor equipment without expanding the primary footprint
- Taller leg heights (up to 24’+ standard, 28′ on engineered request)For high-bay racking, fifth-wheel inventory, mezzanine framing, dock clearance, or overhead crane bridge clearance
Customize & Spec Your 100×200 Metal Building Online
Every option below is selectable in our 3D builder or your custom commercial quote. The 100×200 footprint is fixed. Roof, leg height, gauge, doors, dock systems, insulation, and finishes are configurable to your operation.
Leg Height (18′ to 28’+)
On a 100×200, leg height runs 18′ to 28′ standard, with taller engineered heights available on request. Warehouse operations land at 16′ to 18′ for five- to six-tier racking. Trucking terminals and RV inventory floors require 22′ to 28’+. Manufacturing with overhead cranes specifies 20’+ to clear the bridge.
3 Roof Styles
Vertical Roof is the standard recommendation on every 100×200 build. Over a 100-foot span and 150-foot run, Vertical Roof routes water and snow straight off the eaves and is required by most commercial code authorities. A-Frame Horizontal is available for aesthetic builds where matching a corporate identity matters. Regular Roof is not recommended at this footprint.
Roof Pitch & Slope
Standard 4:12 roof pitch on 100×200 builds, with 5:12 and 6:12 upgrades for snow regions and engineered low-pitch options for shed-style commercial roofing. Cool roof coatings reduce HVAC load and meet Title 24 and similar state energy codes for retail and office occupancy.
Frame Gauge (14 or 12)
12-gauge primary tubing is standard at Mega tier, with 14-gauge secondary purlins and girts. Red iron I-beam primary framing is available for industrial loads, mezzanines, overhead cranes, and any application where rooftop or interior point loads exceed standard tubular capacity.
Sheet Metal Gauge (29 or 26)
26-gauge sheet metal panels are standard for the 100×200 roof and walls. Insulated metal panels (IMP) replace standard panels for office, retail, or temperature-controlled commercial use. Standing-seam roofing is available for architectural builds and meets cool-roof requirements in California, Arizona, and Texas.
Certification & Engineering
Engineering and certification are mandatory at Mega tier. Every 100×200 ships with wet-stamped drawings, foundation plans, and wind/snow load calculations matched to your local code. Required for permits in all 48 states for a commercial 20,000 sq ft structure. We coordinate directly with your project’s structural engineer or municipal plan reviewer.
Roll-Up Garage Doors
Roll-up doors from 10’x10′ up to 20’x20′ on the 100×200. Standard fleet garage uses six to ten 14’x14′ or 14’x16′ doors along the long wall. Distribution hubs spec 14’x16′ on opposing walls for drive-through configurations. RV dealerships need 16’x18′ or 20’x20′ for fifth-wheel inventory access.
Walk-In Doors
4’x7′ commercial double doors with crash-bar exit hardware, weatherstripping, and ADA-compliant thresholds. Insulated and non-insulated options. On a 100×200, plan main entries near office zones plus emergency exits on side walls and rear bays per local fire code.
Hydraulic & Rapid Doors
Hydraulic one-piece doors are standard for commercial 100×200 builds where door cycles exceed 20 per day. High-speed rapid-roll doors integrate with smart access control for distribution warehouses, fleet operations, and food processing. Auto-lock systems and remote opener integration are available.
Windows & Skylights
36″x36″ or 48″x48″ insulated glazing standard. Full-height storefront entries are available for retail occupancy. Clerestory window bands along the upper wall provide daylighting and meet IECC and Title 24 energy code requirements for commercial spaces. Skylights spec up to 4 percent of roof area.
Framed Openings
Order framed openings now to skip cutting once the building is up. Useful for planned future dock additions, HVAC penetrations, electrical service entrances, or expansion phases. Sized to your structural and mechanical drawings.
Garage Door Openers & Windows
Commercial chain-hoist openers, smart access systems, and integrated fleet-management opener arrays. Wi-Fi and BAC-net integration for facilities management. Loading dock seal kits, dock levelers, and bumpers ship with dock-ready door packages.
17 Standard Color Options
All 17 standard color options are available on the 100×200: Barn Red, Beige, Black, Brown, Burgundy, Burnished Slate, Clay, Galvalume, Green, Patriot Red, Pewter Gray, Quaker Gray, Rawhide Tan, Royal Blue, Sandstone, Slate Blue, and White. Commercial owners often coordinate to corporate brand color or municipal palette requirements.
Mix-and-Match Roof, Walls, Trim
Mix-and-match roof, wall, and trim colors. On a 100×200 commercial build, popular pairings include Galvalume roof with corporate brand wall color and matching trim, or Pewter Gray walls with Black trim and a darker contrasting roof for industrial applications.
Wainscoting (Two-Tone Walls)
Wainscoting on a 100×200 means lower 4′ to 5′ of wall in a contrasting color. Used in retail and dealership applications to create branded curb appeal, hide loading dock dirt, and visually separate the customer-facing facade from the warehouse rear.
Galvalume (Bare Metal Finish)
Galvalume is a hot-dipped aluminum-zinc coating with no paint. The most cost-effective option on a 100×200, it weathers to a soft gray and works well for industrial, agricultural, and rural commercial applications. Maximum corrosion resistance with zero paint maintenance.
Painted Trim & Flashings
Color-matched ridge caps, eave trim, gable trim, and corner trim ship with every 100×200. All hardware including color-coded screws matches your panel choice. The 20-year paint warranty covers the full painted exterior surface area, including 20,000+ sq ft of roof and walls.
Custom Color Match
Custom paint matching for corporate brand colors, franchise standards, municipal palettes, or institutional color requirements. Available for an upcharge with a 4 to 8 week additional lead time. Ask your commercial advisor for color sample chips before final order confirmation.
Insulation Options
Insulation packages on the 100×200 scale to occupancy. Single-bubble radiant barrier suffices for unconditioned warehouses. Fiberglass batt R-19 to R-30 fits warehouses with seasonal HVAC. Spray foam closed-cell delivers R-25 and creates a vapor barrier for food-grade or pharmaceutical applications. Insulated metal panels deliver R-25 to R-50 for full HVAC commercial occupancy.

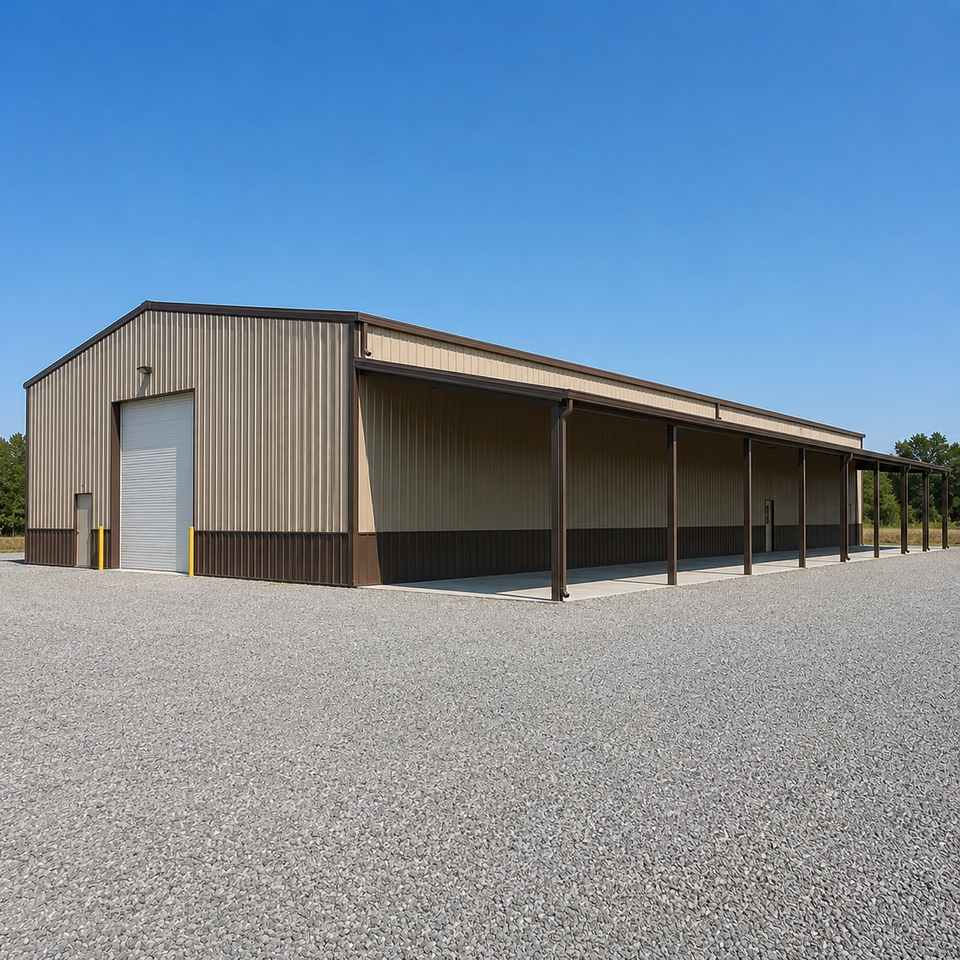

Lean-To Additions
Lean-to additions on the 100×200 typically run 20′ to 50′ wide along one or both long walls. Common uses include trailer staging, raw material storage, finished goods staging, or covered dock approaches. Lean-tos add square footage without expanding the primary 20,000 sq ft footprint.
Mezzanines & Lofts
Mezzanines and partial second floors are common on 100×200 builds. Common configurations include front-end office mezzanines (3,000 to 5,000 sq ft) over the main entry, full-width mezzanines for parts storage, or partial mezzanines for break rooms and locker areas. Engineered for live and dead loads to your spec.
Interior Partitions
Interior partitions divide the 20,000 sq ft into bays, offices, restrooms, locker rooms, mechanical rooms, and storage areas. Steel-stud framing or insulated metal interior panels available. Common build pattern: 3,000 sq ft office front-end, 16,000 sq ft warehouse main floor, 1,000 sq ft mechanical and restroom area.
Trim, Anchors, Gables
Decorative trim around doors, corners, and rooflines on 100×200 builds typically follows corporate identity standards. Branded gables over storefront entries, full-color trim packages, and parapet walls for signage are configurable to your design intent.
Flooring Prep
We don’t pour foundations, but we’ll coordinate with your structural engineer on slab spec. A 100×200 typically requires a 8″ to 12″ reinforced concrete slab ($6 to $12 per sq ft, so $160,000 to $320,000 total) with engineered footings at column locations. Slab spec scales with intended use, dead load, and live load.
Wind & Snow Certification
Standard 140 MPH wind and 40 PSF snow load on every 100×200. Engineered upgrades certified to 170+ MPH wind for hurricane and coastal zones (Category C and D wind exposure), and 80+ PSF snow load for mountain and ground-snow regions over 50 PSF.
Permit-Ready Drawings
Wet-stamped engineered drawings, foundation plans, anchor patterns, and code calculations. Mandatory at Mega tier and shipped with every 100×200 order. Meets IBC, IRC, NEC, IFGC, IECC, and IMC requirements plus state-specific commercial codes (California Title 24, Florida Building Code, Texas IBC amendments).
Door Locks & Access Control
Smart access control, keypad entry, ID badge readers, and biometric door systems for commercial 100×200 builds. Integrated with fleet management and facilities systems. Auto-lock cycles for unattended overnight closures; Knox-box compliance for fire department emergency access.
Fire Safety & Alarms
Sprinkler-system-ready framing standard at Mega tier per most commercial fire codes. Heat and smoke detection systems, addressable fire alarm panels, emergency exit signage, and fire-rated wall partitions for occupancy separations all configurable. Class ABC extinguishers at every 75 feet of egress per NFPA.
Anchoring System
Engineered concrete footings with anchor bolt patterns specific to the 100×200 wind and seismic loading. Slab-on-grade with embedded anchor bolts is standard. Pier-and-beam foundations available for sites with poor soil bearing or expansive clay. All anchor systems engineered to local seismic and frost-line requirements.
Solar & Roof-Top Loads
Engineered framing supports rooftop solar arrays (100×200 roof can host 1,600-2,400 panels at 400-600 kW), HVAC condenser rooftop units, satellite dishes, antenna systems, and rooftop equipment. Reinforced roof framing is mandatory for solar installations and should be specified at order time.
100×200 Metal Building Codes, Permits & Engineering
Every 100×200 prefab steel building ships with engineered, wet-stamped drawings that meet your local building codes. Required for all permitted commercial 20,000 sq ft structures across 48 states. Our engineers coordinate directly with your municipal plan reviewer.
We also follow plumbing codes, energy conservation standards, ADA requirements, and any state or local commercial occupancy requirements. Code compliance is integrated into every 100×200 order at the foundation drawing phase.
How to Maintain a 100×200 Metal Building
Quarterly facilities walks on a 100×200 take 30 to 60 minutes. Routine inspection of seals, anchors, and roof drainage keeps your 20,000 sq ft commercial steel building structurally sound and within insurance and warranty terms for the full 20-year frame life.
What Can You Do with 20,000 Square Feet?
A 100×200 metal building gives you large industrial clear-span space for distribution, fleet maintenance, manufacturing, agricultural processing, institutional, and high-bay warehouse operations
Fleet Garage
Park 70 to 100 trucks, vans, service trailers, buses, or municipal vehicles with room for service lanes and staging
Manufacturing Floor
Run production lines, CNC equipment, conveyors, robotic cells, and industrial operations in a column-free layout
Warehouse Storage
Use the high-bay footprint for pallet racking, inventory staging, bulk storage, and forklift access
Commercial Showroom
Create a 20,000 sq ft retail, auto, RV, boat, or equipment dealership floor with storefront glazing and service bays
Distribution Hub
Spec dock-ready openings, trailer staging, drive-through bays, and clear forklift routes for logistics operations
Indoor Sports Facility
Fit two courts, training floors, batting cages, practice fields, or athletic programs under one clear-span roof
Agricultural Processing
Shelter grain processing, hay storage, dairy operations, combines, trucks, and industrial farm equipment
High-Bay Industrial Space
Use 18′ to 28’+ leg heights for racking, mezzanines, dock systems, RV inventory, or crane-ready industrial builds
3 Ways to Order Your 100×200 Metal Building
Spec your 100×200 in our 3D builder, request a free custom commercial quote, or talk directly with a commercial building advisor. Reservation deposits accommodate corporate procurement; balance terms scale to your project schedule, engineering package, and commercial installation scope.
Request Free 100×200 Quote
Free custom design, reply within 24 hours
Tell us your operational requirements and our commercial 100×200 advisors will design and price your custom steel building for free. Standard process for permitted commercial builds requiring engineered drawings and code compliance.
- Free expert design consultation
- Permit and certification handled for you
- Custom layout and engineered drawings
- Quote delivered within 1 business day
Free quote. Flexible deposit to reserve after approval.
Spec Your 100×200 in 3D
Design your 100×200 yourself, see live pricing
Use our interactive 3D commercial building builder to spec every detail of your 100×200. Pick configuration (warehouse, distribution, manufacturing, fleet, retail, agricultural), roof style, leg height, door array, insulation, dock openings, mezzanine options, and watch live pricing scale to your spec.
- Visual 3D customization tool
- Live pricing as you customize
- Reserve your build with flexible deposit
- Balance due only after installation
Free tool. Flexible deposit to reserve your build.
Talk to a 100×200 Commercial Advisor
Fastest answers, call or chat now
Speak directly with a commercial building advisor who specializes in Mega-tier 100×200 structures. Get pricing, permit guidance, dock spec recommendations, and configuration help for your specific operation. Toll-free with no-obligation engineering review.
- Instant answers over the phone
- Expert advice on permits, codes, and sizing
- Walk-through of customization options
- Mon to Fri 8am to 6pm PST, Sat 9am to 3pm
Toll-free. Speak with an expert now.
How the 3D Builder Works
Design your ideal 100×200 commercial metal building in minutes
1. Launch Builder
Open the builder in a new tab so you can keep this page available while designing.
2. Configure Your Building
Set size, roof style, certification, colors, doors, side panels, dock systems, insulation, and commercial options.
3. Save Your Design
Copy your configuration code or summary before returning to this product page.
4. Complete Your Request
Send us your final configuration and we will confirm pricing, engineering, scheduling, and installation details.
Ready to design your custom 100×200 metal building?
Tip:Keep this page open so you can return and submit your final configuration with ease.
How Much Does a 100×200 Metal Building Cost?
Commercial pricing on every 100×200 prefab steel building. A 100×200 commercial certified shell starts around $92,000. A fully enclosed industrial or fleet building often starts around $110,000. Manufacturing-grade red iron, dock-equipped distribution facilities, insulated metal panel skins, crane-ready framing, and mezzanine-ready builds can reach $325,000+ depending on the final spec.
Building Configuration
A 100×200 commercial certified shell is the entry point at Mega tier. Adding dock-leveler systems, manufacturing-grade red iron framing, mezzanines, long-side lean-tos, cross-dock layouts, or insulated metal panel skin scales the price proportionally. Carport and Mini-tier configurations are not offered at this size.
Your Location
Delivery distance from the regional manufacturing plant, state-specific commercial code requirements, crane access, and local labor rates affect the final 100×200 price. Coastal hurricane zones and California Title 24 jurisdictions add 8 to 15 percent for engineered upgrades and energy code compliance.
Steel Gauge
12-gauge primary tubing is standard. Red iron I-beam framing is the major upgrade at Mega tier, recommended for crane bridges, mezzanines, and any roof load above 30 PSF dead load. Red iron typically adds 25 to 40 percent to the base steel package depending on column spacing and roof loading.
Roof Style & Pitch
Vertical Roof is standard on the 100×200. A-Frame Horizontal upgrades 4 to 8 percent for aesthetic-driven builds. Standing-seam architectural roofing adds 12 to 18 percent for office and retail occupancy. Roof pitch upgrades from 4:12 to 5:12 or 6:12 add structural cost in snow regions.
Certification
Engineered, wet-stamped drawings are mandatory and included in the 100×200 base price at Mega tier. Site-specific upgrades (FEMA shelter compliance, OSHA-rated industrial, public-bid procurement requirements) add 4 to 12 percent depending on jurisdiction and project complexity.
Doors, Windows, Insulation
Door array is one of the largest variables on a 100×200. A ten-door fleet or terminal build with 14×16 roll-ups can run $35,000 to $60,000 in door cost alone. Dock-leveler systems add $4,500 to $8,500 per dock. Insulation packages range $1.50 to $7 per sq ft depending on R-value and panel system.
100×200 Metal Building Complete Price Range
Range covers a commercial-certified shell at the low end through a fully outfitted industrial build with red iron primary framing, ten commercial roll-up doors, four dock-leveler bays, full insulated metal panel skin, crane-ready framing, mezzanine framing, and stamped engineered drawings.
Flexible Financing & Rent-To-Own
Choose the payment path that fits your commercial project and budget
Traditional Financing
Credit Check Required
- Finance your metal building project
- Structured monthly payment options
- Terms based on lender approval
- Fast online application process
- Ownership from day one
Commercial Payment Options
Project Based
- Procurement-friendly deposit schedules
- Project-based commercial payment terms
- Structured around fabrication and install milestones
- Great for Mega-tier commercial buildings
- Advisor support for quote documentation
How Delivery & Installation Works
A step-by-step process for getting your 100×200 industrial metal building engineered, delivered, and installed
Place Your Order
Submit your request for the 100×200 configuration and confirm use case, door array, dock layout, insulation, certification, foundation, crane access, and site details.
Step 1
Engineering & Production Scheduling
Your order moves through engineered drawings, code review, fabrication scheduling, red iron coordination, and commercial production based on your final 100×200 specification.
Step 2
Prepare the Site
Prepare the engineered concrete foundation, confirm truck access, review crane or rigging needs, and make sure utilities and staging areas are ready before the crew arrives.
Step 3
Installation Day
Our certified commercial crew installs the 100×200 metal building and verifies layout, anchoring, door placement, roof system, and exterior finish details.
Step 4
100×200 Metal Building Reviews from Verified Buyers
Commercial buyers, fleet operators, regional distribution centers, agricultural operations, and manufacturing companies across 48 states have ordered 100×200 facilities from Steel And Stud. Three of their stories below.
“We moved from three leased warehouses into one 100×200 distribution facility. Ten 14×16 roll-ups, four dock-leveler bays, and full insulation gave us the space to stage inbound freight, outbound pallets, and fleet loading in one clear-span floor.”
“The 100×200 riding arena gave our equestrian program year-round training space with 28-foot engineered height, kickwall reinforcement, and a long-side lean-to for stalls and tack. It feels like a true commercial facility.”
“Our 100×200 building became the inventory, showroom, and service floor for our RV dealership. The clear-span layout handles Class A coaches, fifth-wheel toy haulers, service bays, and a polished customer-facing entrance.”
Compare 100×200 vs. Other Metal Building Sizes
Considering a different industrial footprint? Compare commercial steel building sizes side by side. Every order ships free to 48 states with engineered drawings included on Mega-tier configurations.
| Feature | 100×100 Building | 100×150 Building | 100×200 Building | 120×200 Building |
|---|---|---|---|---|
| Square Footage | 10,000 SF | 15,000 SF | 20,000 SF | 24,000 SF |
| Use Capacity | Large warehouse | Large distribution, fleet, or manufacturing | Large industrial, logistics, or terminal operations | Expanded industrial campus |
| Access Potential | Excellent | Maximum | Maximum | Maximum |
| Roof Style | Vertical Standard | Vertical Standard | Vertical / Red Iron | Vertical / Red Iron |
| Best For | 10,000 sq ft commercial operations | 15,000 sq ft commercial operations | 20,000 sq ft industrial operations | Large regional facilities |
| Price 100×100 | Spec 100×150 | You’re Here | Spec 120×200 |
100×200 Metal Building FAQ: Cost, Permits, Sizes & Install
Answers on commercial pricing, configurations, leg heights, roof systems, code compliance, foundations, and load ratings for the 20,000 sq ft 100×200 prefab industrial steel building.
Request Your Custom Design & Quote
Tell us about your project and we’ll provide a custom design with exact pricing. No obligation, no pressure just helpful information to guide your decision.
🔒 A specialist calls within 1 business day. We never share your details.
Customize Other Metal Building Sizes
Nearby width and length variants across our full metal building lineup — buildings, carports, garages, barns, and RV covers.
100x150 Metal Building
100x120 Metal Building Kits Built to Spec
100x110 Metal Building Kits & Commercial Steel Packages
100×110 Distribution Warehouse
100×110 Manufacturing Facility

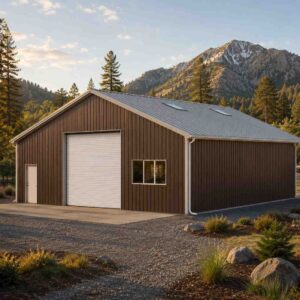

100×110 Commercial Workshop
100×110 Equipment & Hay Barn
100×110 Aircraft Hangar

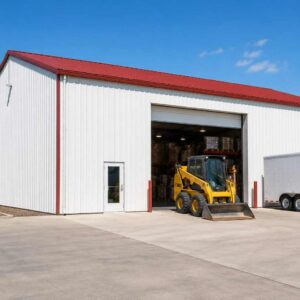

100×110 Cold Storage Facility
100×110 Indoor Riding Arena
100×110 Retail & Showroom
